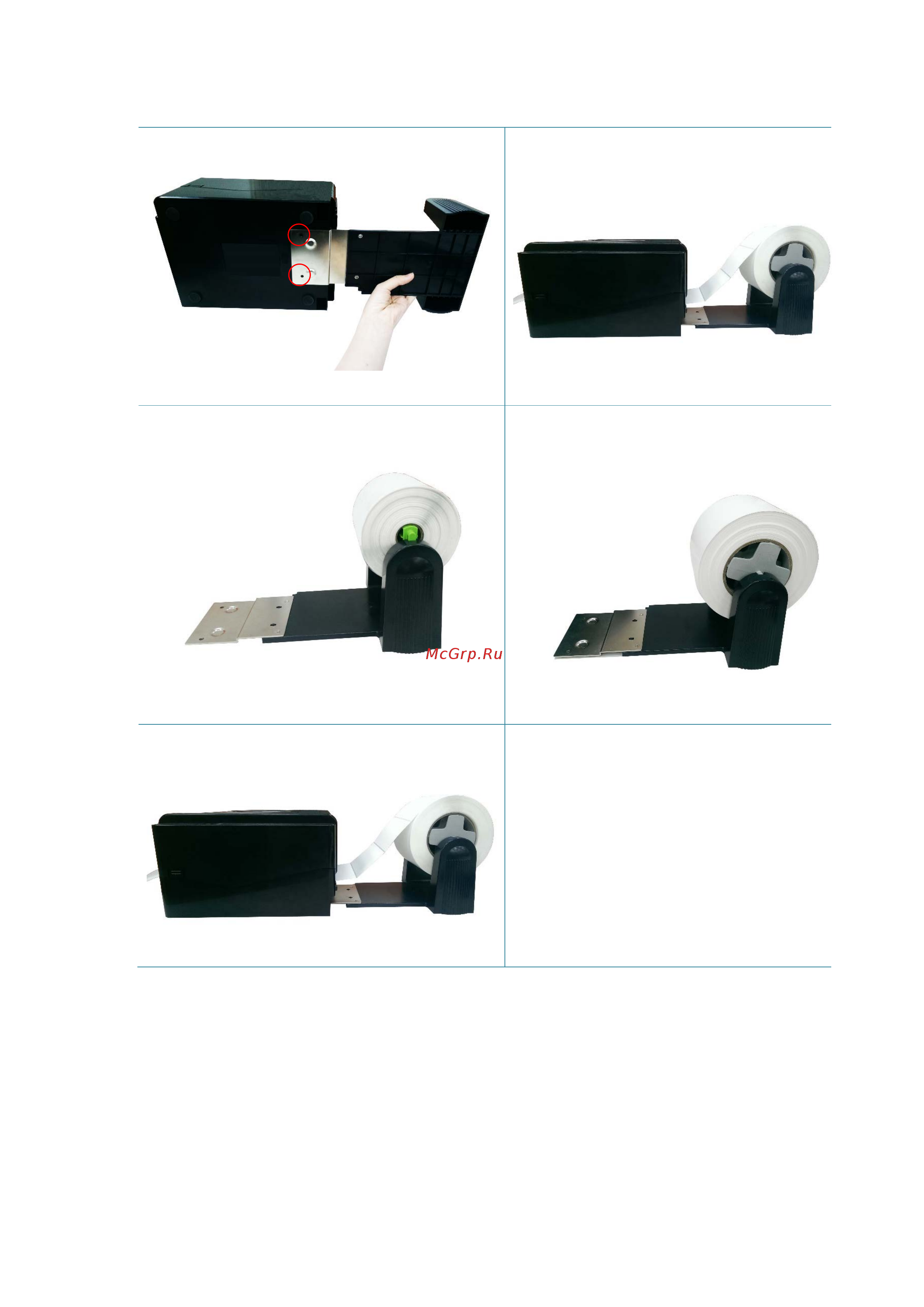

3.3.2 External Label Roll Mount Installation (Option)

1. Attach the extended plate on the

bottom of the printer.

2. Insert a 3” (or 1”) label spindle into a

paper roll. Then, install it on the

external paper roll mount.

3. Feed the media through the rear

external label entrance chute.

1” label spindle

3” label spindle
