15

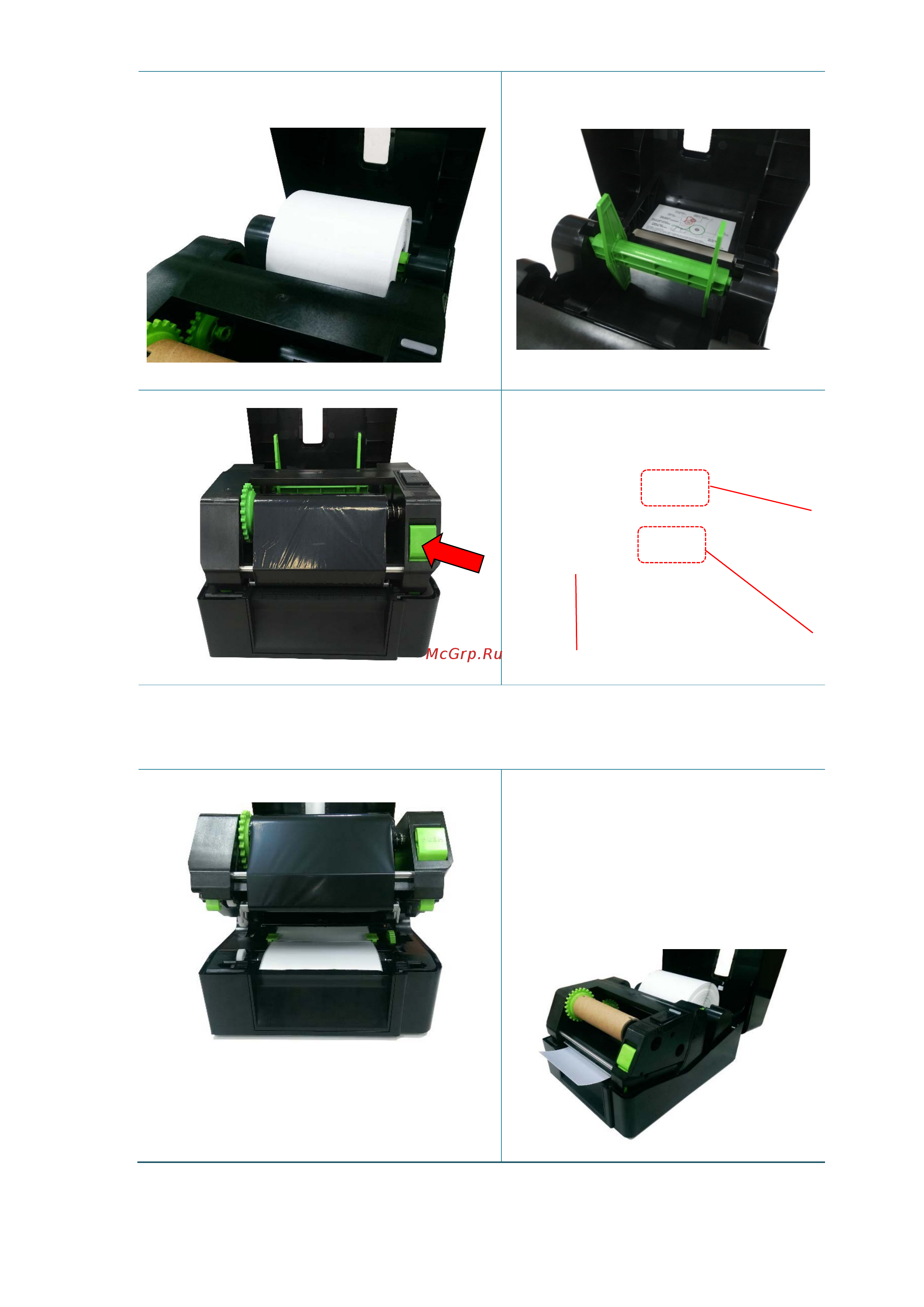

3. Place the paper roll onto the paper
roll mount.
4. Push the print head release button
to open the print head mechanism.
Note: The black mark sensor position is moveable and the gap sensor is fixed.
Please make sure the gap or black mark is at the location where media gap/black
mark will pass through for sensing.
5. Feed the paper, printing side face
up, through the media bar, media
sensor and place the label leading
edge onto the platen roller. Move
the media guides to fit the label
width.
Platen roller
Black mark
sensor/ Gap
sensor
(emitter)
Gap sensor
(transmitter)
Media spindle with two 1.5” adapters
