TSC TTP-384M [10/69] Rear view

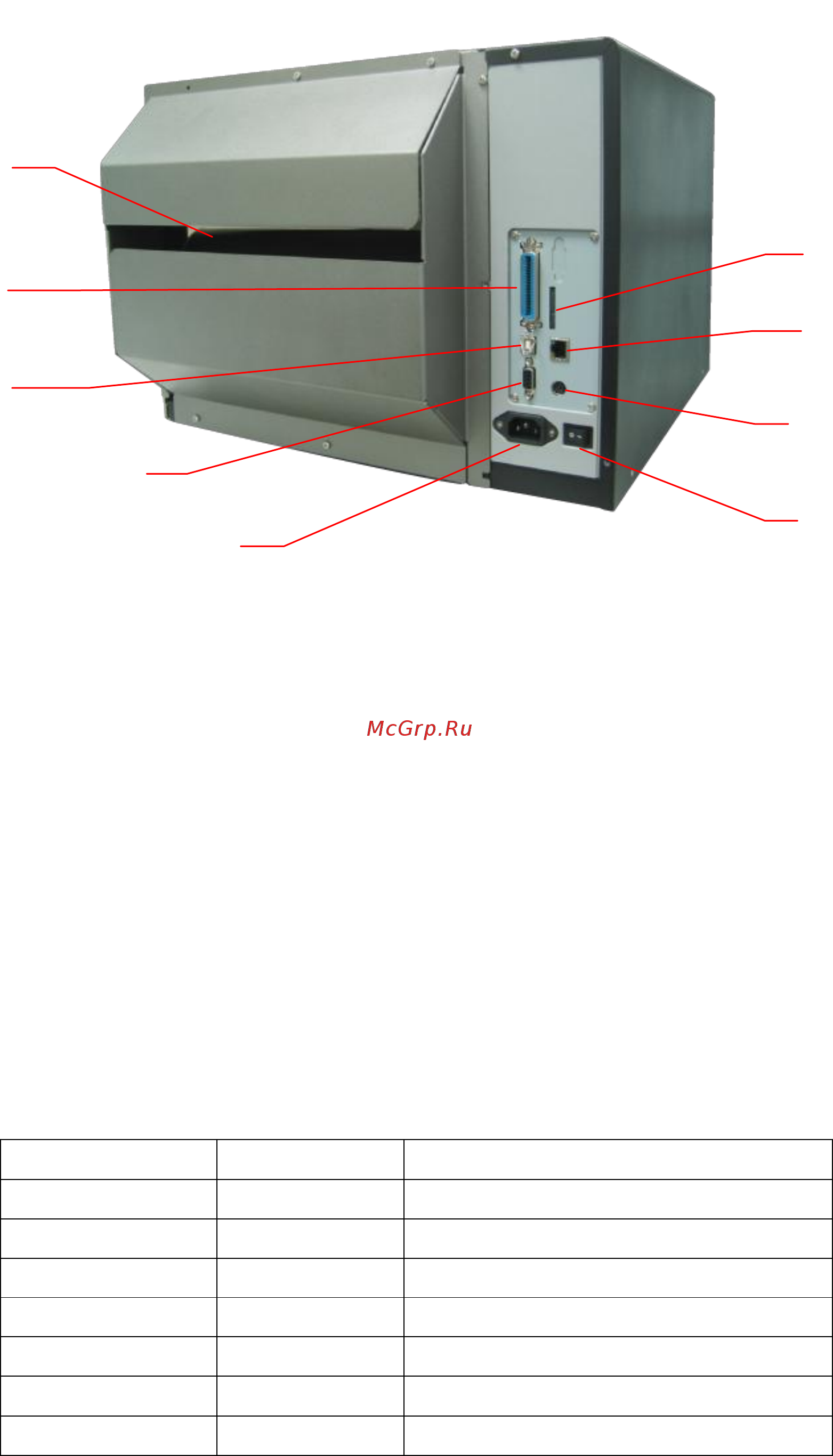

2.2.3 Rear View

1. Fan-fold paper entrance chute

2. Centronics interface

3. USB interface

4. RS-232C interface

5. Power jack socket

*6. SD card slot

7. Ethernet interface

8. PS/2 interface

9. Power switch

* Recommended SD card specification.

SD card spec

SD card capacity

Approved SD card manufacturer

V1.0, V1.1

128 MB

SanDisk, Transcend

V1.0, V1.1

256 MB

SanDisk, Transcend, Panasonic

V1.0, V1.1

512 MB

SanDisk, Transcend, Panasonic

V1.0, V1.1

1 GB

SanDisk, Transcend, Panasonic

V2.0 SDHC CLASS 4

4 GB

V2.0 SDHC CLASS 6

4 GB

SanDisk, Transcend, Panasonic

V1.0, V1.1

microSD 128 MB

Transcend, Panasonic
