TSC TTP-384M [12/69] Led indicators

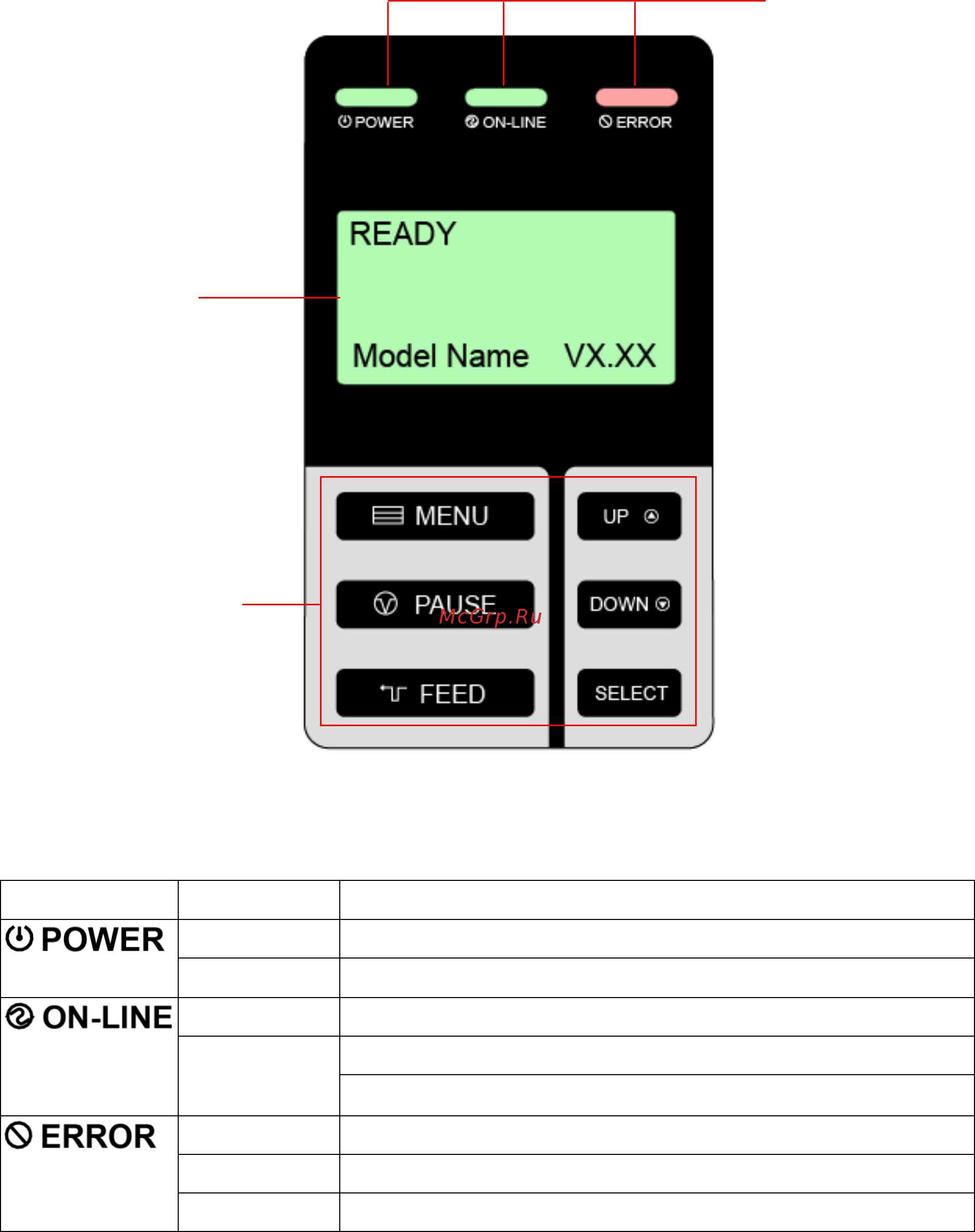

2.3 Operator Controls

2.3.1 Front Panel Display

2.3.2 LED Indicators

LED

Status

Indication

Off

Printer power off

Printer power on

Printer is ready

Blinking

Printer is paused

Printer is downloading data

Off

Printer is ready

Carriage open OR Cutter error

Blinking

No paper, Paper jam OR "No ribbon

LCD display

LED indicators

Front panel buttons
