English
30

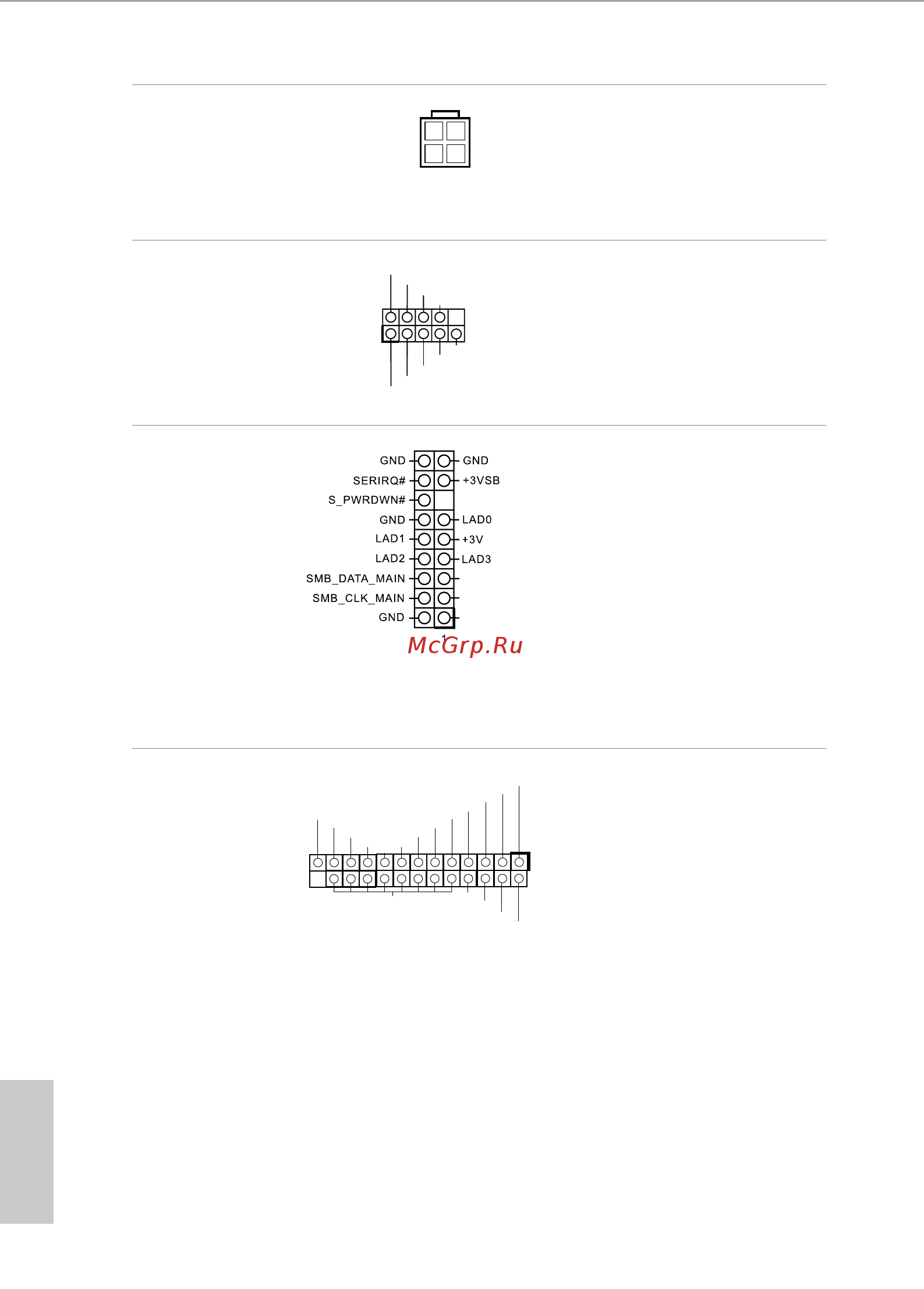

ATX 12V Power
Connector
(4-pin ATX12V1)
(see p.6, 7, No. 1)
Please connect an ATX 12V
power supply to this connector.
Serial Port Header
(9-pin COM1)
(see p.6, 7, No. 17)
is COM1 header
supports a serial port
module.
TPM Header
(17-pin TPMS1)
(see p.6, 7, No. 19)
is connector supports
Trusted Platform Module
(TPM) system, which can
securely store keys, digital
certicates, passwords,
and data. A TPM system
also helps enhance
network security, protects
digital identities, and
ensures platform integrity.
Print Port Header
(25-pin LPT1)
(see p.6, 7, No. 16)
is is an interface
for print port cable
that allows convenient
connection of printer
devices.
CCTS#1
RRTS#1
DDSR#1
DDTR#1
RRXD1
GND
TTXD1
DDCD#1
1
RRI#1
PCIRST#
FRAME
PCICLK
1
AFD#
ERROR#
PINIT#
GND
SLIN#
STB#
SPD0
SPD1
SPD3
SPD2
SPD4
SPD5
SPD6
SPD7
ACK#
BUSY
PE
SLCT
