Attach the IR illuminator to the Weaver rail (3) and tighten the locking
screw.
Attention! To guarantee more comfortable observation please install
the IR Illuminator on the lateral Weaver rail. If installed on the upper rail
(if applicable), this may cause light exposure of the lower and upper
part of image and lack of light in the peripheral zones of the field of view.
Switch on the IR Illuminator by pushing the "ON/OFF" button (4), the
green LED indicator (5) under the button lights up. If the batteries are
low, the indicator will turn red.
To adjust the beam from spot to flood, rotate the lens holder (1) until
you get the best image through your night vision riflescope/device.
To adjust the IR power, rotate the controller (5) turn clockwise to
increase, counterclockwise to reduce.
After use switch off the IR by pushing the "ON/OFF" button (4) - the red
LED indicator goes out.
NOTE: If you need to adjust the IR spot position, turn lens body (2) 5-10
degrees counterclockwise. Match the IR spot with the image viewed through
a night vision device by moving the IR lens holder (1) transversely. Tighten
the lens body (2).
CARE AND MAINTENANCE
The housing of the Illuminator can be cleaned with a soft cloth. Do not
use an abrasive cloth/chemical cleaning solutions.
Always use cleaning equipment designed for photographic
equipment. Dust can be removed from the lens with a soft brush. The
lens can be cleaned with any cloth designed for cleaning optical
equipment. Do not pour lens cleaner on the lens itself!

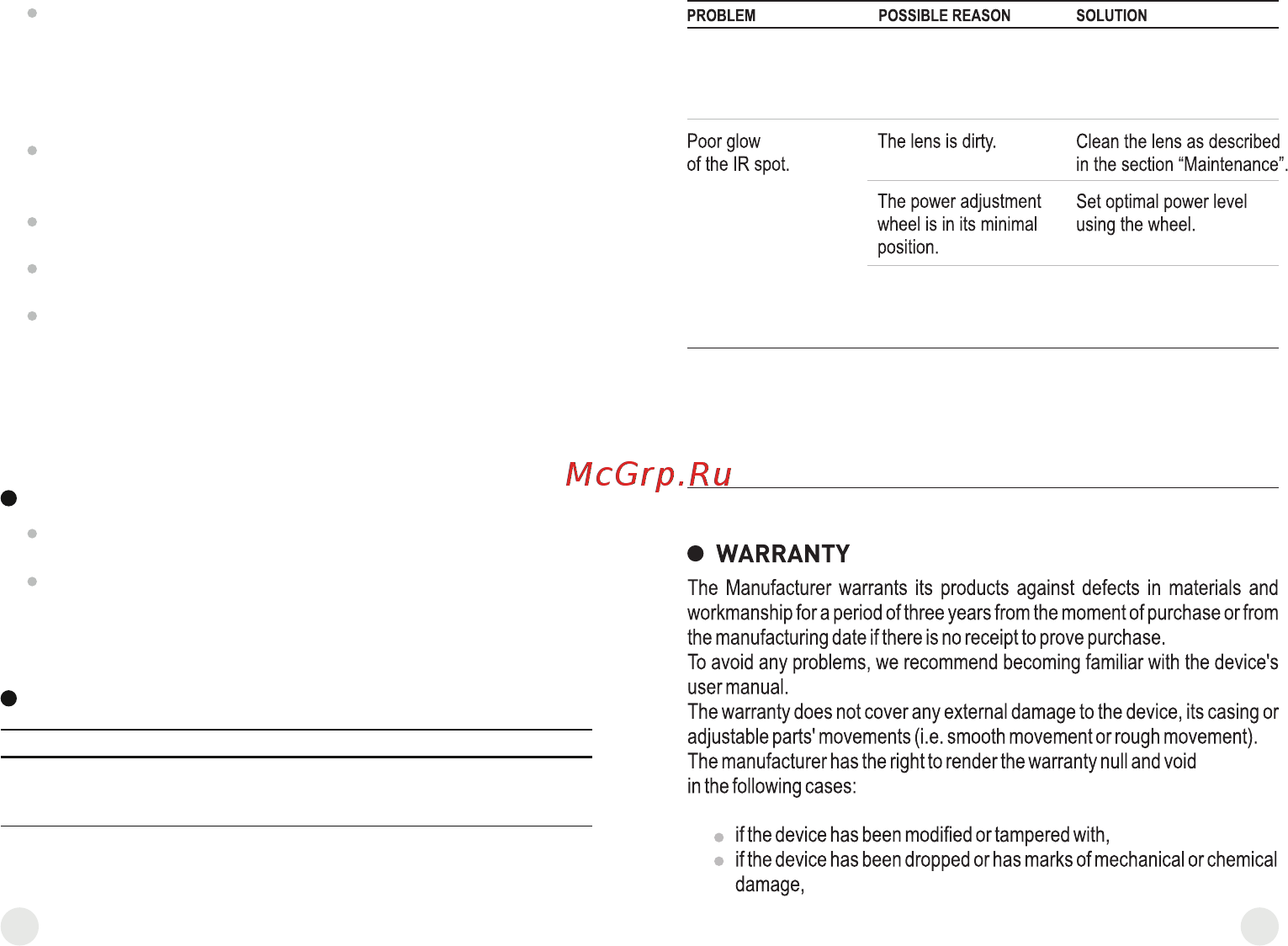

TROUBLESHOOTING
PROBLEM POSSIBLE REASON SOLUTION
Non-uniform
glow of the IR spot.
The Illuminator
is not functioning.
The lens is dirty.
The batteries are wrongly
installed.
Batteries are low.
The contacts are dirty.
Clean the lens as described
in the section “Maintenance”.
Install the batteries
according to polarity.
Install fresh batteries.
Clean the contacts in the
battery compartment or on
its cover.
5
Light exposure of the
lower and upper part of
image and lack of light
in the peripheral zones
of the field of view.
The Illuminator was
installed on the upper
Weaver rail.
Install the Illuminator on
the lateral Weaver rail.
The Illuminator is out of
focus (the lens holder (3)
is fully screwed in).
Rotate the lens holder (3)
to focus the Illuminator.
4
