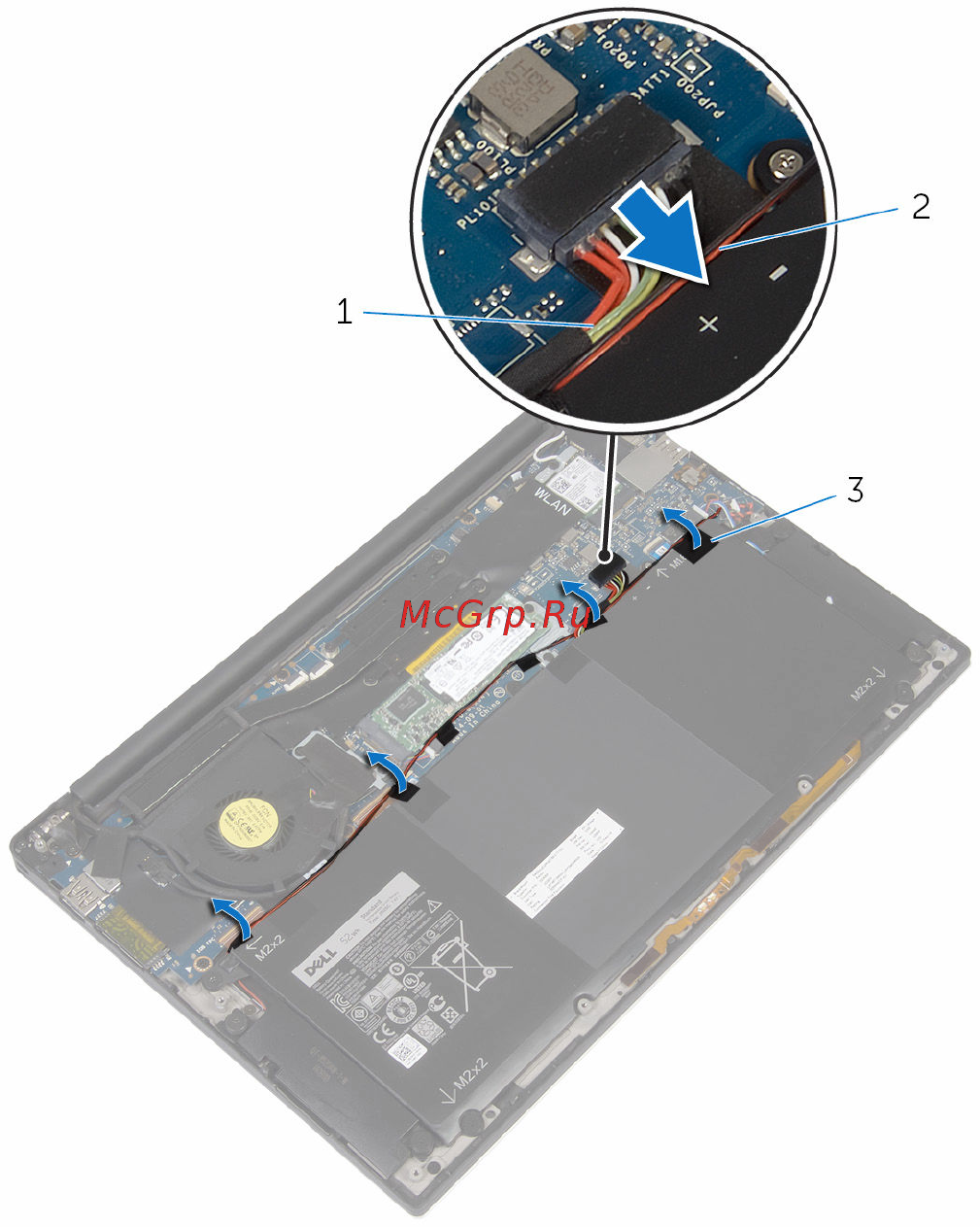

2 Peel off the tape that secures the speaker cable to the battery.
1 battery cable 2 speaker cable
3 tape (6)
3 Remove the screws that secure the battery to the palm-rest assembly.
18
Содержание
- Xps 13 service manual 1
- Caution a caution indicates either potential damage to hardware or loss of data and tells you how to avoid the problem 2
- Note a note indicates important information that helps you make better use of your computer 2
- Notes cautions and warnings 2
- Warning a warning indicates a potential for property damage personal injury or death 2
- After working inside your computer 3 3
- Before working inside your computer 3
- Contents 3
- Removing the base cover 4 3
- Removing the battery 17 3
- Removing the solid state drive 1 3
- Replacing the base cover 6 3
- Replacing the battery 20 3
- Replacing the solid state drive 3 3
- Xps 13 service manual 3
- Removing the coin cell battery 2 4
- Removing the heat sink 5 4
- Removing the speakers 9 4
- Removing the wireless card 25 4
- Replacing the coin cell battery 4 4
- Replacing the heat sink 37 4
- Replacing the speakers 1 4
- Replacing the wireless card 7 4
- Removing the battery status light cable 38 5
- Removing the i o board 48 5
- Removing the i o board cable 5 5
- Removing the touch pad 1 5
- Replacing the battery status light cable 40 5
- Replacing the i o board 1 5
- Replacing the i o board cable 47 5
- Replacing the touch pad 4 5
- Removing the antenna 63 6
- Removing the display assembly 2 6
- Removing the display hinge cover 0 6
- Removing the system board 66 6
- Replacing the antenna 65 6
- Replacing the display assembly 8 6
- Replacing the display hinge cover 62 6
- Replacing the system board 71 6
- Flashing the bios 89 7
- Removing the fan 76 7
- Removing the keyboard 0 7
- Removing the palm rest assembly 85 7
- Removing the power adapter port 3 7
- Replacing the fan 9 7
- Replacing the keyboard 4 7
- Replacing the palm rest assembly 8 7
- Replacing the power adapter port 75 7
- Diagnostics 0 8
- Getting help and contacting dell 91 8
- Before working inside your computer 9
- Before you begin 9
- Safety instructions 9
- Recommended tools 10
- Screw list 11
- After working inside your computer 13
- Procedure 14
- Removing the base cover 14
- Procedure 16
- Replacing the base cover 16
- Prerequisites 17
- Procedure 17
- Removing the battery 17
- Post requisites 20
- Procedure 20
- Replacing the battery 20
- Prerequisites 21
- Procedure 21
- Removing the solid state drive 21
- Procedure 23
- Replacing the solid state drive 23
- Post requisites 24
- Prerequisites 25
- Procedure 25
- Removing the wireless card 25
- Procedure 27
- Replacing the wireless card 27
- Post requisites 28
- Prerequisites 29
- Procedure 29
- Removing the speakers 29
- Post requisites 31
- Procedure 31
- Replacing the speakers 31
- Prerequisites 32
- Procedure 32
- Removing the coin cell battery 32
- Post requisites 34
- Procedure 34
- Replacing the coin cell battery 34
- Prerequisites 35
- Procedure 35
- Removing the heat sink 35
- Post requisites 37
- Procedure 37
- Replacing the heat sink 37
- Prerequisites 38
- Procedure 38
- Removing the battery status light cable 38
- Post requisites 40
- Procedure 40
- Replacing the battery status light cable 40
- Prerequisites 41
- Procedure 41
- Removing the touch pad 41
- Post requisites 44
- Procedure 44
- Replacing the touch pad 44
- Prerequisites 45
- Procedure 45
- Removing the i o board cable 45
- Post requisites 47
- Procedure 47
- Replacing the i o board cable 47
- Prerequisites 48
- Procedure 48
- Removing the i o board 48
- Post requisites 51
- Procedure 51
- Replacing the i o board 51
- Prerequisites 52
- Procedure 52
- Removing the display assembly 52
- Procedure 58
- Replacing the display assembly 58
- Post requisites 59
- Prerequisites 60
- Procedure 60
- Removing the display hinge cover 60
- Post requisites 62
- Procedure 62
- Replacing the display hinge cover 62
- Prerequisites 63
- Procedure 63
- Removing the antenna 63
- Post requisites 65
- Procedure 65
- Replacing the antenna 65
- Prerequisites 66
- Procedure 66
- Removing the system board 66
- Procedure 71
- Replacing the system board 71
- Entering the service tag in the bios setup program 72
- Post requisites 72
- Prerequisites 73
- Procedure 73
- Removing the power adapter port 73
- Post requisites 75
- Procedure 75
- Replacing the power adapter port 75
- Prerequisites 76
- Procedure 76
- Removing the fan 76
- Post requisites 79
- Procedure 79
- Replacing the fan 79
- Prerequisites 80
- Removing the keyboard 80
- Procedure 81
- Post requisites 84
- Procedure 84
- Replacing the keyboard 84
- Prerequisites 85
- Removing the palm rest assembly 85
- Procedure 86
- Post requisites 88
- Procedure 88
- Replacing the palm rest assembly 88
- Flashing the bios 89
- Diagnostics 90
- Contacting dell 91
- Getting help and contacting dell 91
- Self help resources 91
