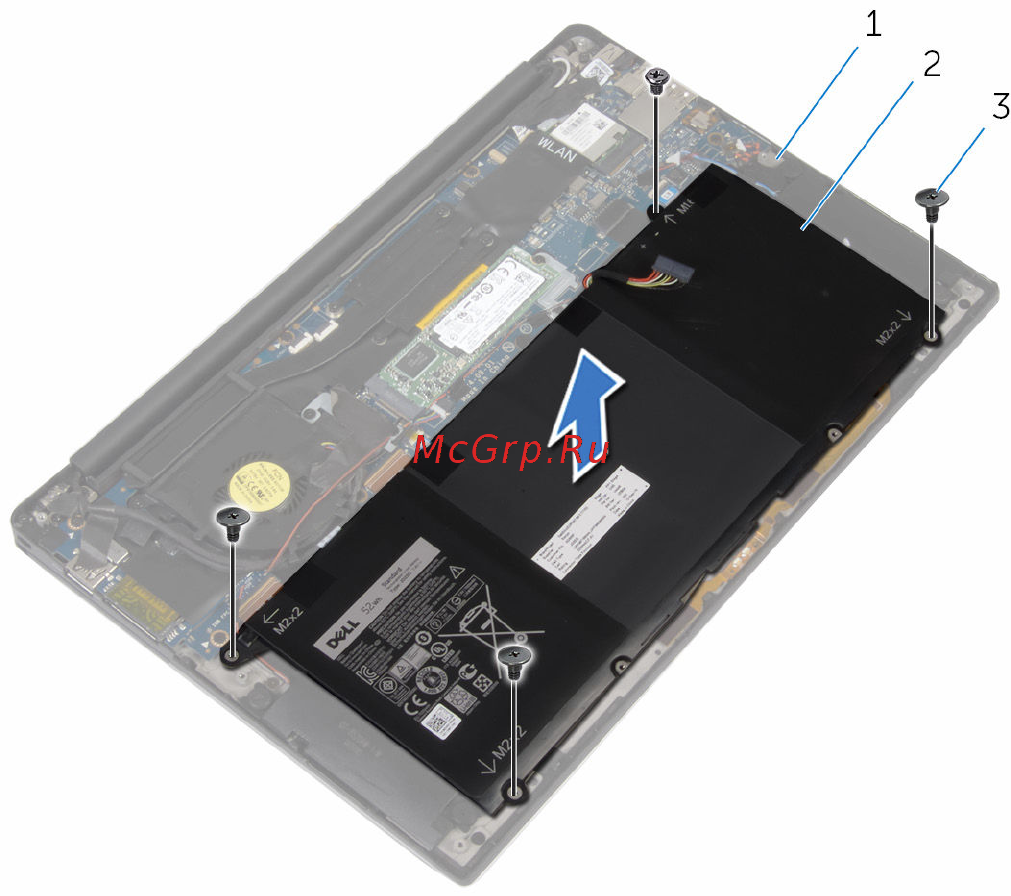

4 Lift the battery off the palm-rest assembly.
1 palm-rest assembly 2 battery
3 M2x2 screws (3) and M1.6x4
screw (1)
5 Turn the computer over, open the display, and press the power button
for about 5 seconds to ground the computer.
19
