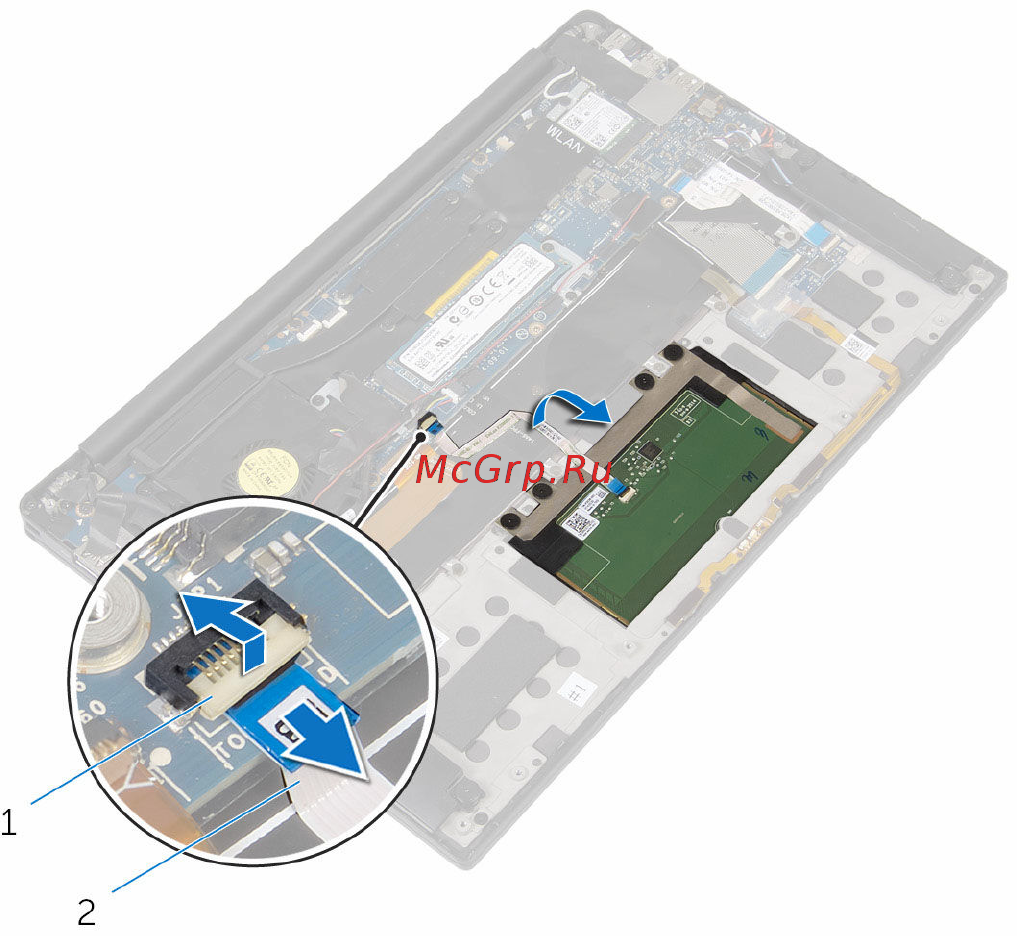

2 Peel off the touch-pad cable from the keyboard and palm-rest assembly.
1 latch 2 touch-pad cable
3 Remove the screws that secure the touch pad to the palm-rest assembly.
If applicable, peel off any foam adhering the touch pad to the palm-rest
assembly.
42
