Dell XPS 13, 9360-3621 Инструкция по эксплуатации онлайн [43/92] 221669
![Dell XPS 13, 9360-3621 Инструкция по эксплуатации онлайн [43/92] 221669](/views2/1264491/page43/bg2b.png)

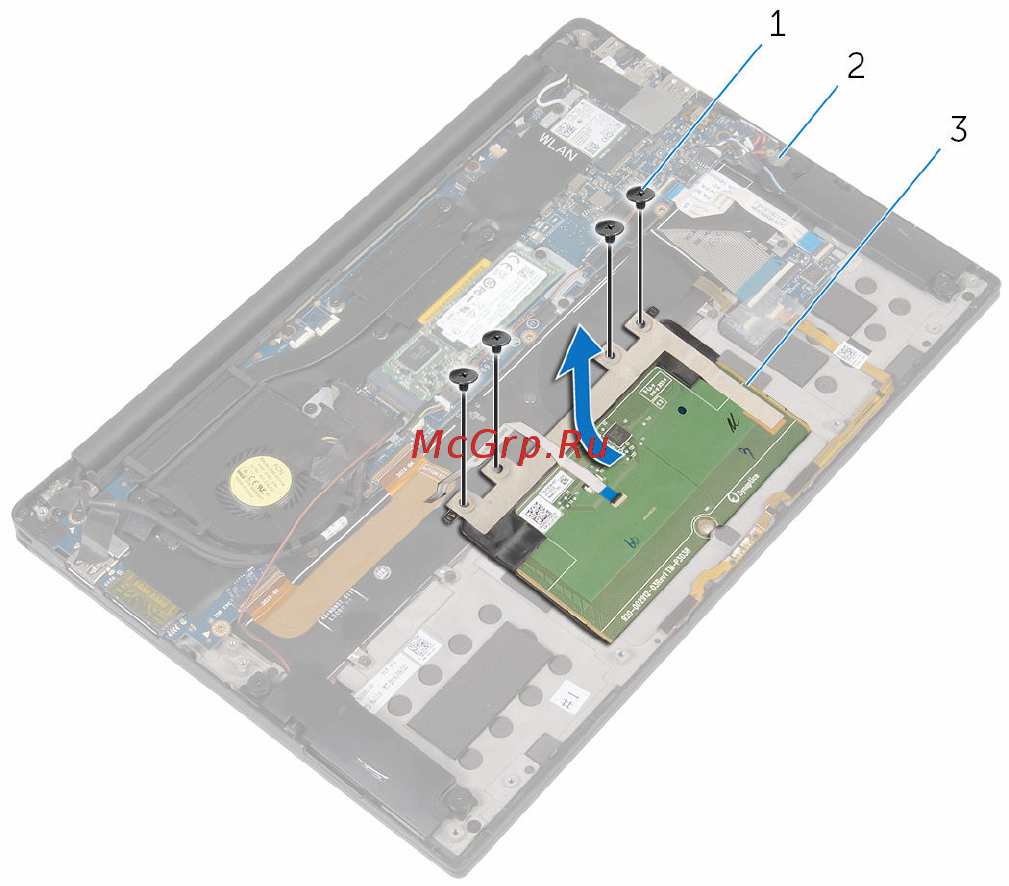

4 Lift the touch pad from the inner edge and remove it from the palm-rest
assembly.
1 M2x2 screws (4) 2 palm-rest assembly
3 touch pad
43
