2. DIN REAR-MOUNT (Method B)

For this method, use the screw holes in the lateral sides of the unit. Fix the unit with the help of the factory

radio mounting brackets.

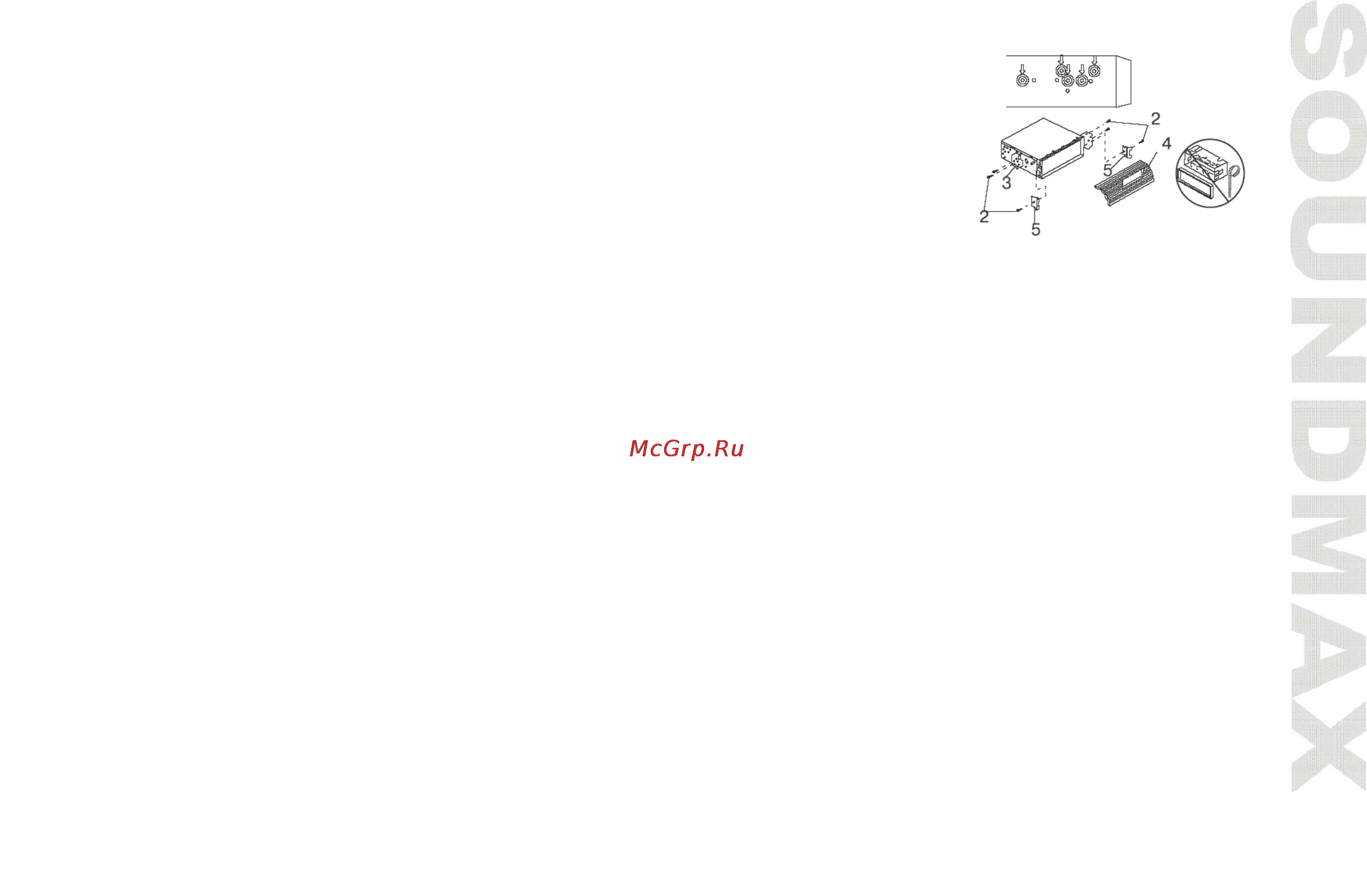

1. Select a position in which the screw holes of the brackets (3) are aligned

with the screw holes in the unit body, and screw in two screws (2) in each side.

2. Screw.

3. Factory radio mounting brackets.

4. Vehicle dashboard.

5. Lock (remove this part).

Note: The outer trim frame and mounting sleeve are not used for method of installation.

Installing the front panel

Install the fastening hole on the right side of the front panel on the right fastening of the unit. Then insert

the left fastening on the panel into the fixing hole on the left part of the unit. Press on the upper right part

of the panel until a click. Ensure that the panel is properly fixed, otherwise error symbols may be displayed

and some buttons may not function.

To detach the front panel, press OPEN button, then distract the left side of the panel from the fastening of

the unit.

Anti-theft system

The front panel of this unit can be stored in the included protective case when not in used and carried away

when you leave the vehicle to deter theft. Switch off the power of the unit. Detach the front panel, then put

it to the protective case and take it with you.

Cautions: The control panel can easily be damaged by shocks. After removing it, place it in a protective

case and be careful not to drop it or subject it to strong shocks.

The rear connector that connects the main unit and the control panel is an extremely important part. Be

careful not to damage it by pressing on it with fingernails, pens, screwdrivers, etc.

Note: If the control panel is dirty, wipe off the dirt with soft, dry cloth only. And use a cotton swab soaked

in isopropyl alcohol to clean the socket on the back of the control panel.
