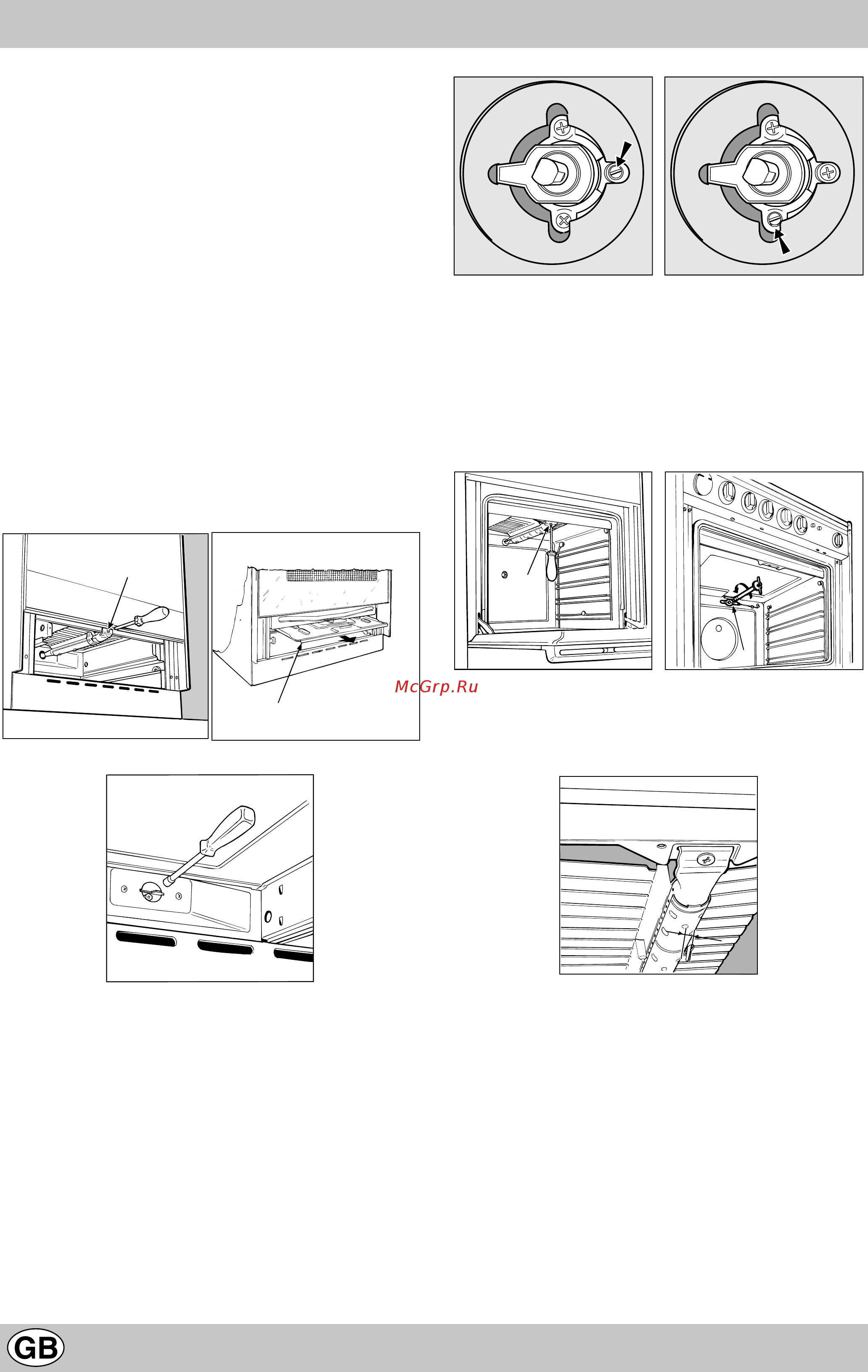

c) Minimum regulation of the hob burners:

•

turn the tap to minimum;

• remove the knob and adjust the regulation screw, which

is positioned in or next to the tap pin, until the flame is

small but steady.

N.B.: in the case of liquid gas, the regulation screw

must be screwed in to the bottom.

• check that the flame does not turn off when you turn

the tap quickly from high to low.

d) Regulating the primary air of the burners:

The primary air of the burners requires no regulation.

Adapting the gas oven to different types of gas

a) Replacing the oven burner nozzle:

• remove the warming drawer;

• remove the sliding protection “A” (see Fig.C);

• remove the screw and then the oven burner “V”(see

Fig. D). Remove the oven door to facilitate this

operation.

• unscrew the oven burner nozzle using the special

socket spanner for the nozzles (see Fig. E), or better

still a 7 mm socket spanner, and replace it with a nozzle

suited to the new type of gas (see table 1).

Fig. C Fig. D

Fig.E

b) Minimum regulation of the gas oven burner with

thermostat (see fig.):

• light the burner as described in the paragraph “the oven

knob” of the instruction booklet.

• turn the knob to Max for about 10 minutes and then

turn the knob to the Min setting;

• remove the knob;

• regulate the screw positioned outside the thermostat

pin until the flame is small but steady.

N.B.: in the case of liquid gas, the regulation screw

must be screwed in to the bottom.

Adapting the gas grill to different types of gas

Replacing the nozzle of the grill burner:

• remove the screw and then slide out the grill burner “V”

(see Fig. F);

• unscrew the grill burner nozzle using the special socket

spanner for the nozzles (see Fig. G) or better still a 7 mm

socket spanner; replace the nozzle with a nozzle for the new

type of gas (see table 1).

Fig. F Fig. G

Important: when mounting the grill burner check that there is a

space of at least 4 mm between the security thermocouple (if

installed) and the burner.

Pay particular attention to the plug wires and

thermocouple tubes.

Important

On completion of the operation, replace the old rating

sticker with one indicating the new type of gas used. This

sticker is available from our Service Centres.

Note

Should the pressure of the gas used be different (or vary)

from the recommended pressure, it is necessary to fit a

suitable pressure regulator onto the inlet pipe in

compliance with current National Regulations relative to

“regulators for channelled gas”.
