Sony SLV-SE230D [77/80] Additional information

Troubleshooting

Additional Information

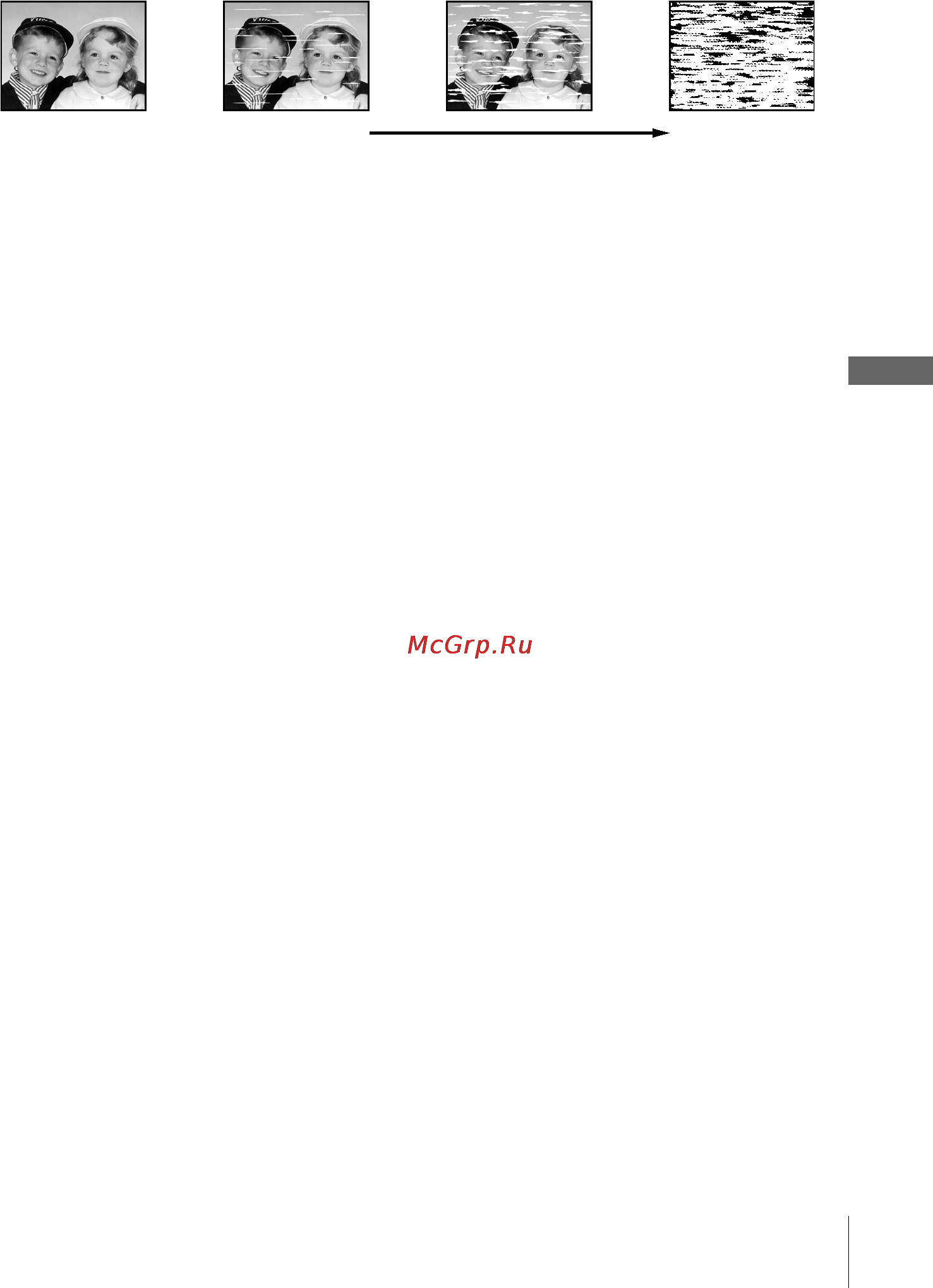

Symptoms caused by contaminated video heads

• Normal picture • Rough picture

initial

contamination

• Unclear picture

• No picture (or

black & white

screen appears)

terminal

Содержание

Video cassette recorder 1
Caution 2
Compatible colour systems 2
Installing 2
Precautions 2
Safety 2
Warning 2
Additional information 3
Additional operations 3
Basic operations 3
Editing 3
Getting started 3
Table of contents 3
Front panel 4
Getting started 4
Index to parts and controls 4
Display window 7
Rear panel 8
Remote commander 9
Check your model name 11
Step 1 unpacking 11
Inserting the batteries 12
Step 2 setting up the remote commander 12
Using the remote commander 12
Adjust the volume of the tv 2 13
Getting started 13
Select an input source aerial in or line in t tv video 13
Select the tv s programme position programme number buttons prog 13
Set the tv to standby mode 1 13
Switch to tv teletext off 13
To press 13
Tv control buttons 13
Controlling other tvs with the remote commander slv se830d e se737e and sx737d only 14
Code numbers of controllable tvs if more than one code number is listed try entering them one at a time until you find the one that works with your tv 15
To switch to wide mode see the footnotes below this table for the applicable code numbers 15
If your tv does not have a scart euro av connector 16
Step 3 connecting the vcr 16
If your tv has a scart euro av connector 17
About the smartlink features not available on slv se630d e and se230d 18
Additional connections 19
Before using the vcr for the first time set up the vcr using the auto set up function with this function you can set the language for the on screen display tv channels guide channels for the showview system and vcr clock automatically 20
Connect the mains lead to the mains 20
If your tv does not have a scart euro av connector tune the tv to channel 32 the initial rf channel for this vcr refer to your tv manual for tv tuning instructions if the picture does not appear clearly see to change the rf channel on page 22 20
Press m m to select the language abbreviation from the table in step 2 then press ok 20
Step 4 setting up the vcr with the auto set up function 20
The abbreviations of the languages are as follows 20
The message for the auto set up function appears 20
The vcr automatically turns on and the language abbreviations appear on the tv screen 20
Turn on your tv and set it to the video channel 20
After the search or download is complete the current time appears for any stations that transmit a time signal if the time does not appear set the clock manually see setting the clock on page 23 21
For slv se630d e the clock setting menu appears see setting the clock on page 23 21
For slv se830d e se737e sx737d se730d e sx730d e and se230d press m m to select the abbreviation of your country from the table in step 4 then press ok if your country does not appear select others 21
If you want to change the order of the channels or disable unwanted programme positions see changing disabling programme positions on page 30 21
Press ok 21
The abbreviations of the countries are as follows 21
The country selection menu appears 21
The vcr starts searching for all of the receivable channels and presets them in the appropriate order for your local area 21
To cancel the auto set up function press menu 22
To change the rf channel if the picture does not appear clearly on the tv change the rf channel on the vcr and tv select installation from the menu then press m m to highlight vcr output ch and press select the rf channel by pressing the m m buttons then tune the tv to the new rf channel so that a clear picture appears 22
Before you star 23
Press m m to set the hour 23
Press menu then press m m to highlight clock set and press ok 23
Press to select the minutes and set the minutes by pressing m m 23
Set the day month and year in sequence by pressing to select the item to be set and press m m to select the digits then press 23
Setting the clock 23
The auto clock set function works only if a station in your area is broadcasting a time signal 23
The day of the week is set automatically 23
You must set the time and date on the vcr to use the timer features properly 23
If you do not need the auto clock set function select off 24
Not available on slv se630d e 24
Press m m to select on for the setting of the auto clock set function 24
Press menu to exit the menu 24
Setting the clock 24
The vcr automatically sets the clock according to the time signal broadcast between the channels pr 1 to pr 5 24
Tips if you set auto clock to on the auto clock set function is activated whenever the vcr is turned off the time is adjusted automatically by making reference to the time signal from the station to change the digits while setting press to return to the item to be changed and select the digits by pressing m m 24
Downloading the tv tuner s preset data 25
Downloading the tv tuner s preset data not available on slv se630d e and se230d 25
Not available on slv se630d e and se230d 25
Selecting a language 26
Before you start 27
Getting started 27
If some channels could not be preset using the auto set up function you can preset them manually 27
Presetting channels 27
Press m m to highlight manual set up then press 27
Press m m to highlight the row which you want to preset then press 27
Press menu then press m m to highlight installation and press ok 27
To display other pages for programme positions 6 to 80 press m m repeatedly 27
Turn on the vcr and the tv set the tv to the video channel refer to index to parts and controls for button locations 27
A t b t t z t 0 t 1 t t 9 t a 28
Enter the station name 28
Presetting channels 28
Press m m to highlight name then press 28
Press m m to select a character each time you press m the character changes as shown below 28
Press menu to exit the menu 28
Press ok to confirm the station name 28
Press repeatedly until the channel you want is displayed 28
Press to set the next character the next space flashes to correct a character press until the character you want to correct flashes then reset it 28
You can set up to 4 characters for the station name 28
After setting the channels you can change the programme positions as you like if any programme positions are unused or contain unwanted channels you can disable them 30
Before you start 30
Changing disabling programme positions 30
Changing programme positions 30
Press m m to highlight manual set up then press 30
Press m m to highlight the row containing the programme position you want to change 30
Press menu then press m m to highlight installation and press ok 30
To display other pages for programme positions 6 to 80 press m m repeatedly 30
You can also change the station names if the station names are not displayed you can enter them manually 30
After presetting channels you can disable unused programme positions the disabled positions will be skipped later when you press the prog buttons 31
Before you start 31
Disabling unwanted programme positions 31
Getting started 31
Press menu then press m m to highlight installation and press ok 31
Press menu to exit the menu 31
Press ok then press m m to move to the desired programme position 31
Press ok to confirm the setting 31
To change the programme position of another station repeat steps 3 through 5 31
Turn on the vcr and the tv set the tv to the video channel refer to index to parts and controls for button locations 31
Changing disabling programme positions 32
Note be sure to select the programme position you want to disable correctly if you disable a programme position by mistake you need to reset that channel manually 32
Press clear 32
Press m m to highlight manual set up then press 32
Press m m to highlight the row which you want to disable 32
Press menu to exit the menu 32
Repeat steps 3 and 4 for any other programme positions you want to disable 32
The selected row will be cleared as shown on the right 32
To display other pages for programme positions 6 to 80 press m m repeatedly 32
Before you start 33
Changing the station names 33
Getting started 33
Not available on slv se630d e 33
Press m m to highlight manual set up then press 33
Press m m to highlight name then press 33
Press m m to highlight the row which you want to change or enter the station name then press 33
Press menu then press m m to highlight installation and press ok 33
To display other pages for programme positions 6 to 80 press m m repeatedly 33
Turn on the vcr and the tv set the tv to the video channel refer to index to parts and controls for button locations 33
You can change or enter the station names up to 4 characters the vcr must receive channel information for station names to appear automatically 33
Before you start 35
Connecting a decoder 35
Getting started 35
In order to set the channels correctly be sure to follow all of the steps below 35
Setting pay tv canal plus channels 35
Setting the pay tv canal plus decoder 35
To watch or record pay tv canal plus programmes set your vcr to receive the channels using the on screen display 35
Turn on the vcr the tv and the decoder set the tv to the video channel refer to index to parts and controls for button locations 35
You can watch or record pay tv canal plus programmes if you connect a decoder not supplied to the vcr 35
Press m m to highlight decoder 36
Press m m to highlight manual set up then press 36
Press m m to highlight the row which you want to set for the decoder then press 36
Press menu then press m m to highlight installation and press ok 36
Press to set decoder to on then press ok 36
Setting the pay tv canal plus decoder 36
To display positions 6 to 80 press m m repeatedly 36
Press menu to exit the menu 37
Basic operations 38
Playing a tape 38
If you insert a tape with its safety tab removed the tv turns on and switches to the video channel playback starts automatically 39
If you use the smartlink connection you can turn on the tv set the tv to the video channel and start playback automatically with one button 39
Insert a tape 39
Press h play 39
Starting playback automatically with one button one touch play not available on slv se630d e and se230d 39
The tv turns on and switches to the video channel automatically playback starts 39
The vcr automatically turns on 39
Recording tv programmes 40
To save a recording to prevent accidental erasure break off the safety tab as illustrated to record on the same tape again cover the tab hole with adhesive tape 42
If you use the smartlink connection you can easily record what you are watching on the tv other than tapes being played on the vcr 43
Insert a tape with its safety tab in place 43
Press 1 to turn on the vcr 43
Press z rec while you are watching a tv programme or external source 43
Recording what you are watching on the tv tv direct rec not available on slv se630d e and se230d 43
The tv indicator lights up and the vcr starts recording what you are watching on the tv 43
Recording tv programmes using the dial timer 44
Recording tv programmes using the dial timer slv se830d e only 44
Slv se830d e only 44
About the demonstration mode 48
Not available on slv se630d e 49
Recording tv programmes using the showvie 49
Recording tv programmes using the showview system not available on slv se630d e 49
System 49
If appears in the pr programme column this may happen for local broadcasts you have to set the appropriate programme position manually press m m to select the desired programme position to record from a decoder or other source connected to one or more of the line inputs press input select to display the connected line in the pr position you will only have to do this operation once for the referred channel the vcr will then store your setting 50
If the information is incorrect press clear to cancel the setting 50
If you make a mistake press clear and re enter the correct number 50
If you want to change the date tape speed and the vps pdc setting 50
Press menu to exit the menu 50
Press ok 50
Press the programme number buttons to enter the showview number 50
Press to select the item you want to change 2 press m m to reset it to record the same programme every day or the same day every week see daily weekly recording on page 51 to use the vps pdc function set v p to on for details about the vps pdc function see timer recording with vps pdc signals on page 51 50
Recording tv programmes using the showvie 50
System not available on slv se630d e 50
The date start and stop times programme position tape speed and vps pdc setting appear on the tv screen 50
To use the auto tape speed function in step 4 above press m to select auto when you are recording a programme in the sp mode and the remaining tape length becomes shorter than the recording time the recording tape speed is automatically changed to the lp mode note that some noise will appear on the picture when the tape speed is changed to operate this function correctly the tape select setting in the user set menu must be accurate see page 68 52
Before you star 53
For slv se630d e the timer programming menu appears on the tv screen 53
For slv se830d e se737e sx737d se730d e sx730d e and se230d when you set timer method to variable the timer method menu appears on the tv screen press m m to select standard then press ok 53
Press timer 53
Recording tv programmes using the timer 53
When you set timer method to standard the timer programming menu appears on the tv screen 53
You can preset a total of eight programmes including settings made with other timer methods 53
Daily weekly recording in step 2 above press m to select the recording pattern each time you press m the indication changes as shown below press m to change the indication in reverse order 54
Press 1 to turn off the vcr 54
Press menu to exit the menu 54
Press to select each item in turn 2 press m m to set each item to correct a setting press to return to that setting and reset 54
Recording tv programmes using the timer 54
Set the date start and stop times programme position tape speed and vps pdc function 54
Set v p to on for details about the vps pdc function see timer recording with vps pdc signals on page 51 to record from a decoder or other source connected to one or more of the line inputs press input select to display the connected line in the pr position 54
The indicator appears in the display window and the vcr stands by for recording 54
To record from a decoder or other source leave the connected equipment switched on 54
To record the same programme every day or the same day every week see daily weekly recording on page 54 to use the vps pdc function 54
To stop recording to stop the vcr while recording press x stop 54
Today t dly monday to sunday t w sa every saturday t w su every sunday t 1 month later t dates count down t today 54
In step 2 above press m to select auto when you are recording a programme in the sp mode and the remaining tape length becomes shorter than the recording time the recording tape speed is automatically changed to the lp mode note that some noise will appear on the picture when the tape speed is changed to operate this function correctly the tape select setting in the user set menu must be accurate see page 68 55
Reset the counter page 38 display tape information on the tv screen page 41 check the timer settings page 59 watch another tv programme page 41 55
To use the auto tape speed function 55
To use the vcr after setting the timer to use the vcr before a recording begins just press 1 the indicator turns off and the vcr switches on remember to press 1 to reset the vcr to recording standby after using the vcr 55
You can also do the following tasks while the vcr is recording 55
Additional operations 56
Before you star 56
Playing searching at various speeds 56
To resume normal playback press h play 56
Using the shuttle ring slv se830d e only 56
With the shuttle ring you can operate a variety of playback options there are two ways for using the shuttle ring normal mode and jog mode 56
Additional operations 57
Notes the sound is muted during these operations in the lp mode noise may appear or there may be no colour if the playback mode mark does not appear on the tv screen press display the picture may show noise when playing at high speed in reverse the picture returns to normal playback from slow motion in reverse in 30 seconds 57
Press jog to enter the jog mode the jog button lights up if you change to the jog mode during any playback mode playback pauses so you can see a still picture each change in the shuttle ring position shifts the picture one frame to shift frames in reverse turn the shuttle ring anticlockwise the frame shift speed depends on the speed you turn the shuttle ring 57
Tip adjust the picture using the program buttons on the vcr if streaks appear while playing in slow motion bands appear at the top or bottom while pausing the picture shakes while pausing to set tracking to the centre position press both buttons at the same time 57
To resume normal mode press jog again the jog button turns off 57
To use the shuttle ring in jog mode use this mode for frame by frame playback 57
To use the shuttle ring in normal mode during playback or pause turn the shuttle ring clockwise or anticlockwise each change in the shuttle ring position changes the playback mode in the following way 57
Setting the recording duration time 58
Before you star 59
Checking changing cancelling timer settings 59
If any settings remain turn off the vcr to return to recording standby 59
If you want to change or cancel a setting go on to the next step if you do not need to change or cancel the settings press menu then turn off the vcr to return to recording standby 59
Press 1 to turn on the vcr 59
Press m m to select the setting you want to change or cancel then press 59
Press menu then press m m to highlight timer programming and press ok 59
Press menu to exit the menu 59
The pr number on the selected row flashes 59
To change the setting press to select the item you want to change then press m m to reset it to cancel the setting press clear 59
When the timer settings overlap the programme that starts first has priority and the second programme starts recording only after the first programme has finished if the programmes start at the same time the programme listed first in the menu has priority 60
In the nicam system slv se830e se737e se730e sx730e and se630e only 61
In the zweiton german stereo system 61
Not available on slv se230d 61
Recording stereo and bilingual programmes 61
Recording stereo and bilingual programmes not available on slv se230d 61
Selecting the sound during hi fi playback 62
Additional operations 63
How sound is recorded on a video tape 63
Notes to listen to playback sounds in stereo you must use the scart or audio out connections when you play a tape recorded in monaural the sound is heard in monaural regardless of the audio monitor setting 63
The vcr records sound onto two separate tracks hi fi audio is recorded onto the main track along with the picture monaural sound is recorded onto the normal audio track along the edge of the tape 63
Not available on slv se230d 64
Searching using the index function 64
Searching using the index function not available on slv se230d 64
Adjusting the picture 66
Adjusting the picture sharpness smart trilogic 66
Adjusting the tracking 66
Although the vcr automatically adjusts the tracking when playing a tape distortion may occur if the recording is in poor condition in this case manually adjust the tracking 66
During playback press menu then press m m to highlight user set and press ok 66
During playback press program on the vcr to display the tracking meter the distortion should disappear as you press one of the two buttons to resume automatic tracking adjustments eject the tape and re insert it 66
On picture sharpness is automatically adjusted off adjust the picture sharpness manually to soften the picture press to sharpen the picture press 66
Press m m to highlight smart trilogic then press 66
Press m m to set smart trilogic to on or off 66
Press menu to return to the original screen 66
You can automatically adjust the sharpness of the picture 66
Additional operations 67
Eco1 to reduce the power consumption eco2 to reduce the power consumption to a minimum 67
Eco2 the line through function will not operate properly if power save is set to eco2 set power save to off or eco1 to ensure proper operation 67
Notes when the vcr stands by for recording the indicator in the display window remains lit even when power save is set to eco 67
Press m m to highlight power save 67
Press menu then press m m to highlight user set and press ok 67
Press to set to eco1 or eco2 then press ok 67
Reducing the vcr s power consumption 67
To turn on the indicators in the display window set power save to off in step 3 67
You can turn off the indicators in the display window when the vcr is off standby mode to reduce the vcr s power consumption 67
Changing menu options 68
Colour system auto to select the colour system automatically pal to use the tape recorded in the pal colour system b w to use the tape recorded in black and white 68
Format 16 9 auto when you use a wide screen tv the vcr automatically detects if programmes being played back or recorded are in normal or wide screen format on if the vcr cannot detect wide screen tv programmes with auto the vcr always plays back and records in wide screen format off if you are not using a wide screen tv 68
Menu choices initial settings are indicated in bold print 68
Menu option set this option to 68
On to record nicam broadcasts on the hi fi audio track off to record standard sound on the hi fi audio track for details see page 61 68
Osd on to display the menu on the tv screen off to disappear the menu from the tv screen 68
Press m m to select the option 68
Press menu then select user set or easy operation and press ok 68
Press to change the setting then press ok 68
Tape select e180 to use an e 180 or shorter type tape e240 to use an e 240 type tape e260 to use an e 260 type tape e300 to use an e 300 type tape 68
User set 68
Easy operation 69
Connect the line outputs of the other vcr to the input connector of this vcr refer to the examples a through c and choose the connection that best suits your vcr 70
Connecting to a vcr or stereo system 70
Editing 70
How to connect to record on this vcr 70
Connect the 71
How to connect to a stereo system slv se830d e only 71
Line 2 l 71
R jacks on this vcr to the audio output jacks on the stereo system using an audio cable not supplied 71
Basic editing 72
When recording on this vcr 72
Audio dubbin 73
Audio dubbing slv se830d e only 73
Slv se830d e only 73
Additional information 74
If you have any questions or problems not covered below please consult your nearest sony service facility 74
Troubleshooting 74
Additional information 77
General 78
Inputs and outputs 78
Specifications 78
Supplied accessories 78
System 78
Quick start guide 80
