Additional Operations 57

Editing with another VCR

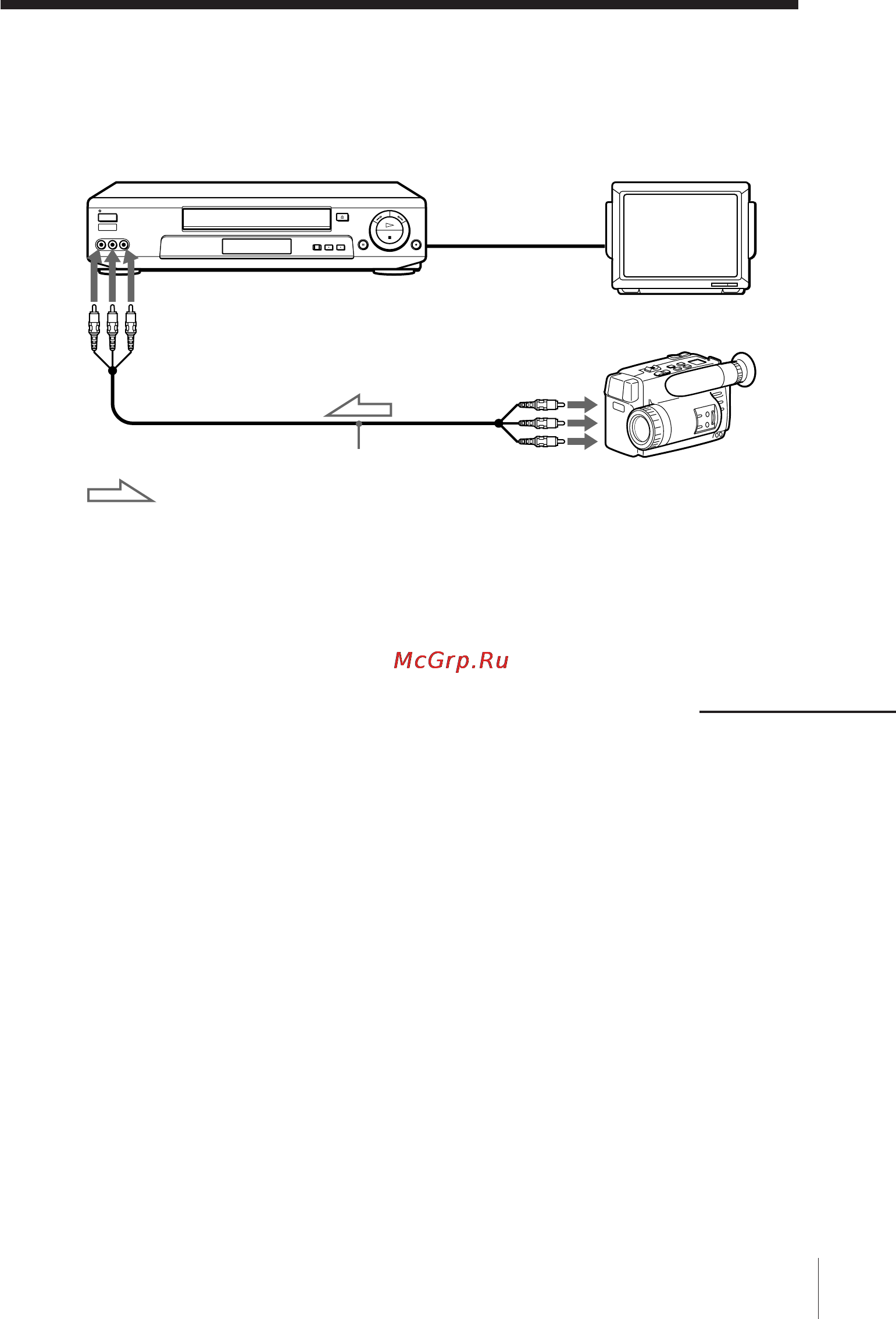

How to connect to record on this VCR

This VCR (Recorder)

: Signal flow

LINE OUT

Other VCR (Player)

LINE-2 IN

VMC-810 audio/video cable (not supplied)

Notes

• Make sure you connect the plugs to jacks of the same colour.

• If the other VCR is a monaural type, leave the red plugs unconnected.

• If you connected this VCR to both the LINE IN and LINE OUT jacks of the other

VCR, select the input correctly to prevent a humming noise.
