Additional Operations 59

Notes

• Make sure you connect the plugs to jacks of the same colour.

• If the other VCR is a monaural type, leave the red plugs unconnected.

• If you connected this VCR to both the LINE IN and LINE OUT jacks of the other

VCR, select the input correctly to prevent a humming noise.

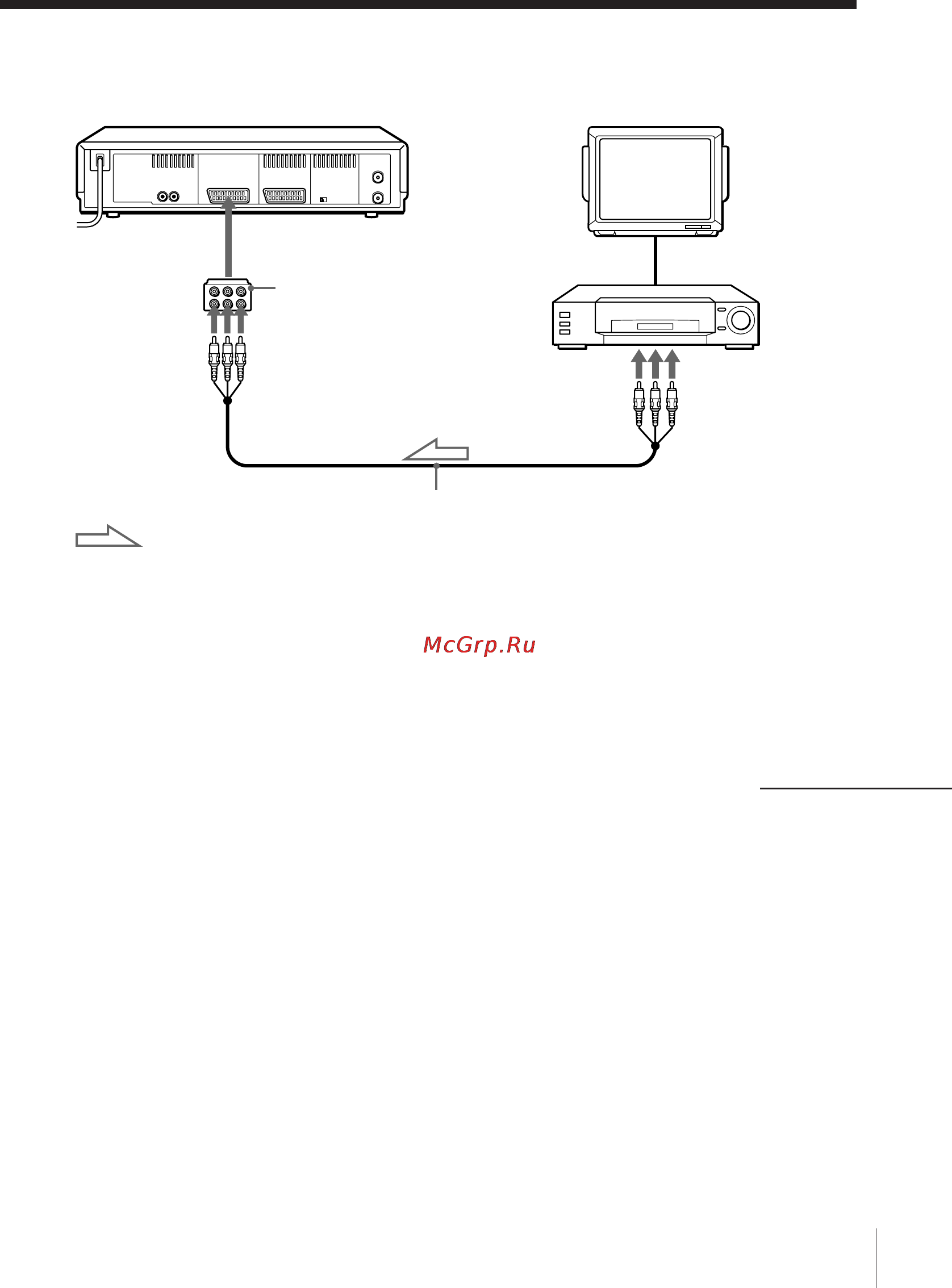

This VCR (Recorder)

21-pin adaptor

(not supplied)

VMC-810 audio/video cable (not supplied)

: Signal flow

LINE OUT

: LINE-1 (TV)

Other VCR

(Player)

AUDIO IN

VIDEO IN

continued
