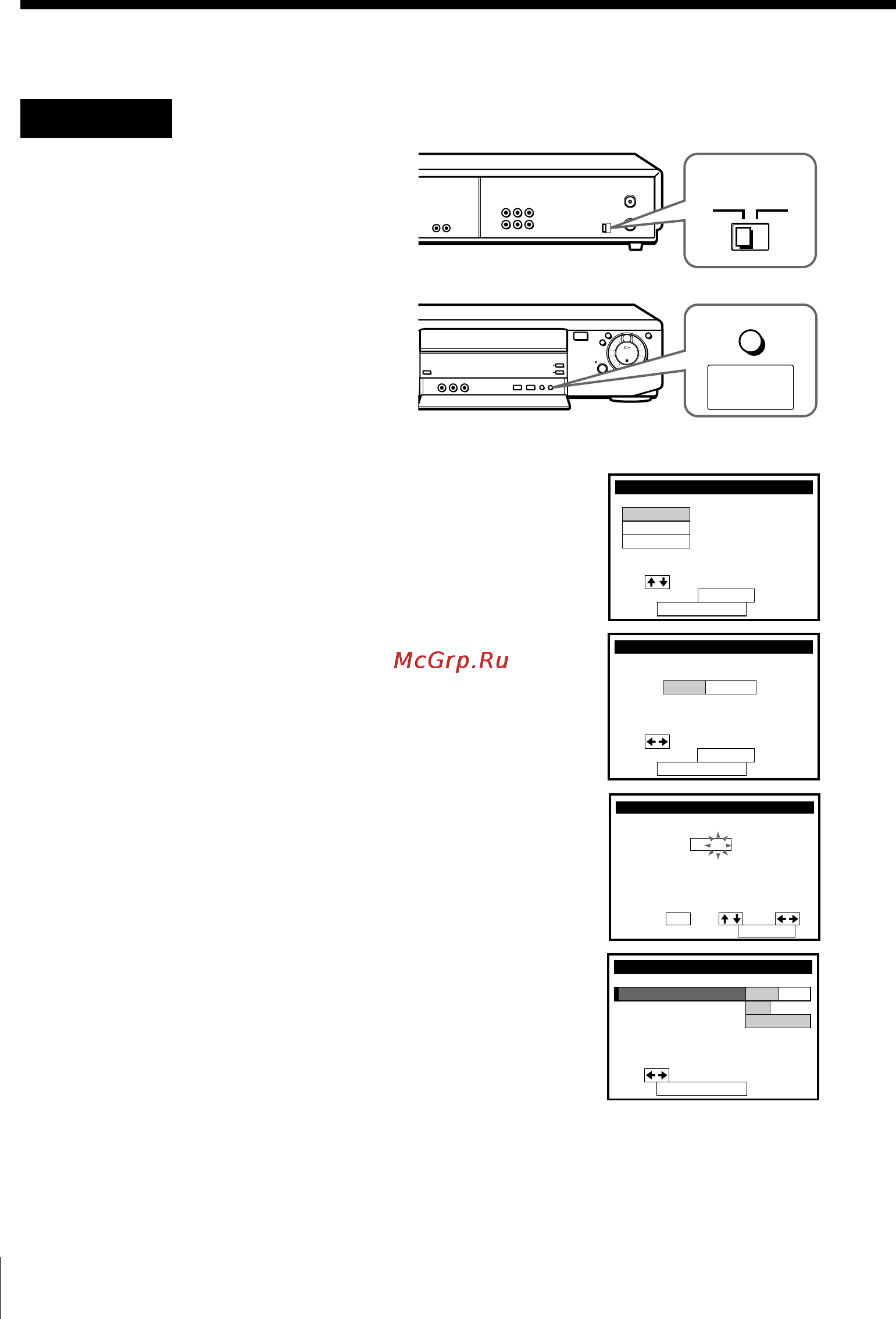

Getting Started24
1 Set the RF UNIT switch to
CH 3 or CH4, whichever
channel is not used in your
area. If both are used, set
the switch to either channel.
For details, see page 76. If
you made A/V connections
(from page 8), you can skip
this step.
2 Turn on your DSS receiver.
3 Press EASY SET UP on the
VCR.
1 The LANGUAGE menu appears. Change the
on-screen display language to Spanish
(ESPAÑOL) or French (FRANÇAIS) if desired,
and press the Joystick (EXECUTE). For details,
see page 31.
2 The CLOCK SET menu appears. Select AUTO
and press the Joystick (EXECUTE). For details,
see page 32.
3 The SMART CH MAPPING menu appears.
Push Joystick to >/./?// to enter the ZIP
CODE in your area and press the Joystick
(EXECUTE). (You can also use the number
buttons to enter the ZIP CODE.)
4 The CABLE BOX menu appears.
Select ON. For details, see page 38.
Hookup 5: VCR setup
Step 3: Hookups (continued)
CH3
RF UNIT
CH4
SET UP
Use to se l ec t
Then pus h EXECUTE
Pus h
EASY SET UP
to quit
AUTO
CLOCK SET
MANUAL
SET UP
Use to se lec t
Pus h
EASY SET UP
to quit
CABLE BOX CONTROL
CABLE BOX
BOX OUTPUT CH
BOX CODE NO.
CABLE MOUSE ON OFF
–
CH3
––
SET UP LANGUAGE
ENGLISH
ESPAÑOL
U
se to se l ec t
Then pus h EXECUTE
Pus h
EASY SET UP
to quit
FRANÇAIS
EASY
SET UP
k
SET UP
ZIP CODE
1
u
23––
si or and
eys then
COZIPyournterEED
ng 0–9
pu hs
EXECUTE
,
,
SMART CH MAPPING
