Getting Started
5
Getting Started

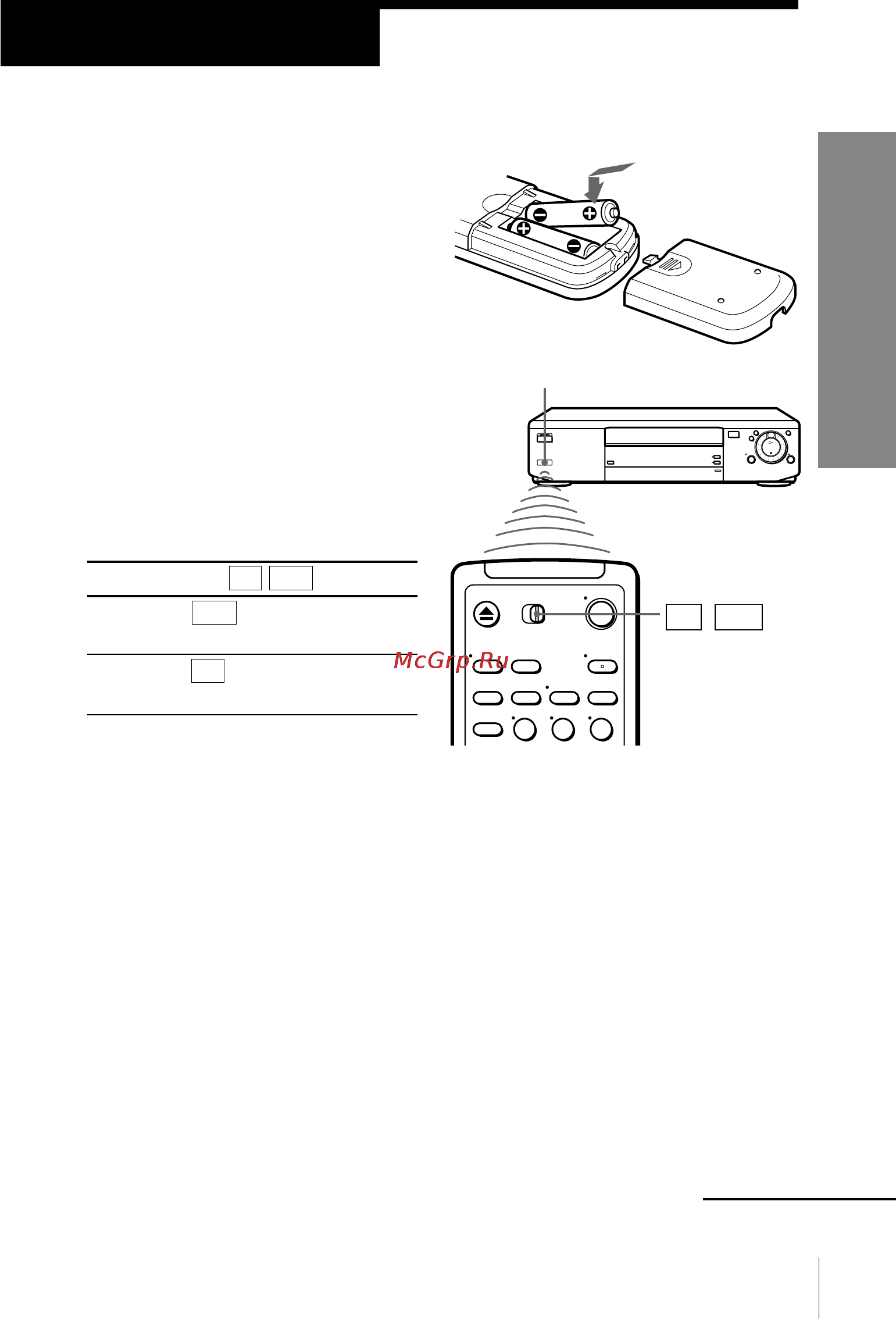

Inserting the batteries
Insert two size AA (R6) batteries by
matching the + and – on the batteries
to the diagram inside the battery
compartment.
Using the remote commander
You can use this remote
commander to operate this VCR
and a Sony TV. The buttons on
the remote commander marked
with a dot (•) can be used to
operate your Sony TV.
To operate
the VCR
a Sony TV
continued
Set TV / VTR to
VTR and point at the
remote sensor on the VCR
TV and point at the
remote sensor on the TV
Step 2
Setting up the remote commander
Remote sensor
TV / VTR
Notes
• With normal use, the batteries should last for approximately three to six months.
• If you do not use the remote commander for an extended period of time, remove
the batteries to avoid possible damage from battery leakage.
• Do not use a new battery with an old one.
• Do not use different types of batteries.
123
