Getting Started34
Setting the clock (continued)
If the clock is not activated
Joystick
>/./?///
EXECUTE
MENU
Number
buttons

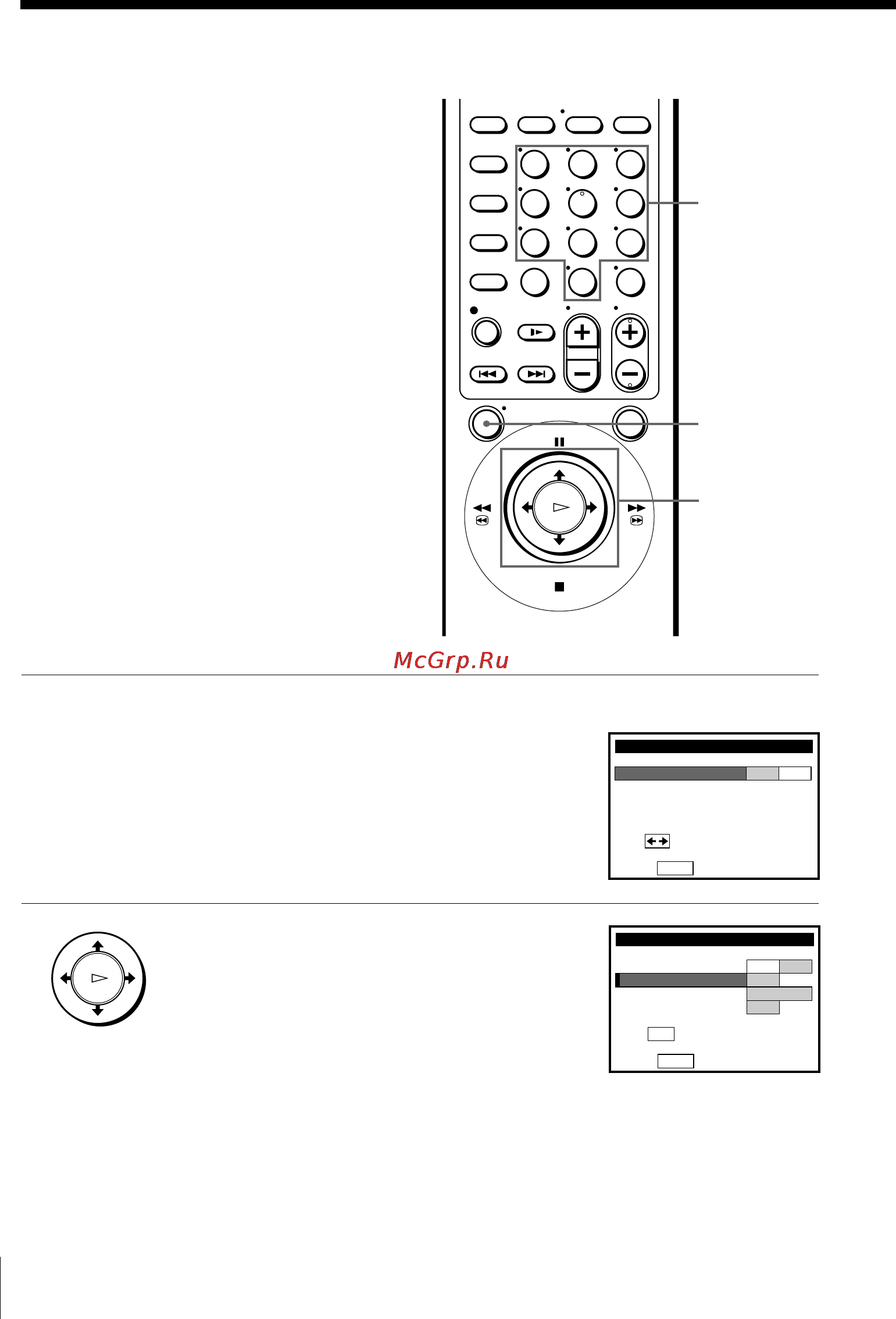

1 Follow steps 1 and 2 in “Using the Auto Clock Set feature.”
The AUTO CLOCK SET menu is displayed.
2 Push Joystick to ?// to select NO for
FULL AUTO.
AUTO CLOCK SET
Push
MENU
to quit
FULL AUTO
YES NO
CLOCK SET CH
TIME ZONE
DAYLIGHT SAVING
–
AUTO
–
AUTO
Use to se l ec t0–9keys
CLOCK SET CHANNEL
AUTO CLOCK SET
Use to se l ec t
Push
MENU
to quit
FULL AUTO
YES NO
EXECUTE
123
456
789
0
