Getting Started36

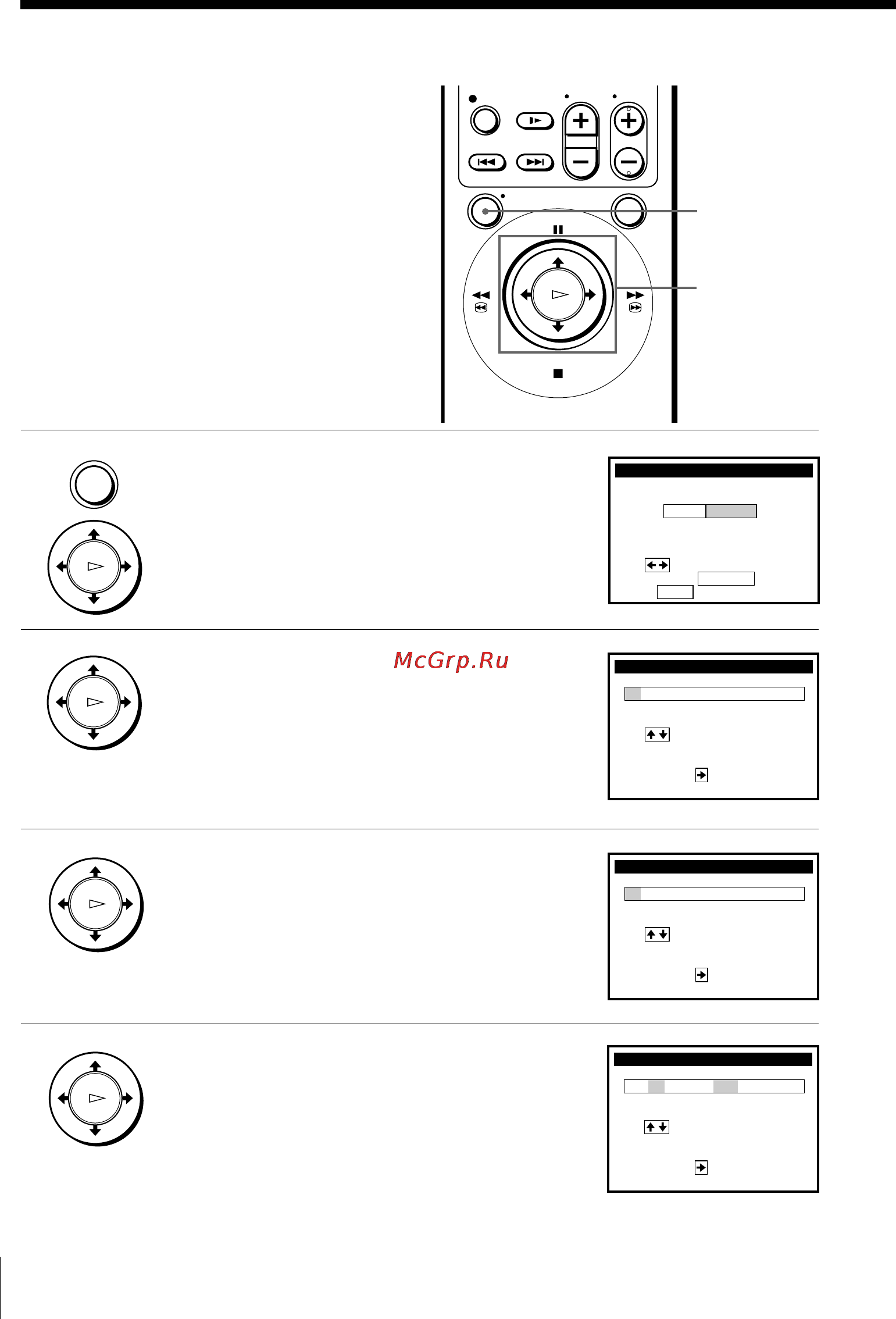

1 Press MENU, then push Joystick to >/.
to move the cursor to CLOCK SET and
press the Joystick (EXECUTE).
When using the EASY SET UP procedure,
skip this step.
2 Push Joystick to ?// to select
MANUAL, then press the Joystick
(EXECUTE).
3 Push Joystick to >/. to set the month.
4 Push Joystick to / to highlight the day
and push Joystick to >/. to set the day.
The day of the week is set automatically.
Setting the clock (continued)
Using Manual Clock Set
CLOCK SET
Use to se l ec t
Then pus h EXECUTE
Pus h
MENU
to quit
AUTO
MANUAL
CLOCK SET
1
U
se to se l ec t
Then, push
to
curr ent
/ 1/1996 MON 2
:
00
DAY
MONTH
1
AM
set
MENU
Joystick
>/./?///
EXECUTE
CLOCK SET
7
U
se to se l ec t
Then, push
to
curr ent
/ 1/1996 MON 2
:
00
DAY
MONTH
1
AM
set
CLOCK SET
7
U
se to se l ec t
Then, push
to
curr ent
/ 4/1996 THU 2
:
00
YEAR
DAY
1
AM
set
EXECUTE
EXECUTE
EXECUTE
EXECUTE
