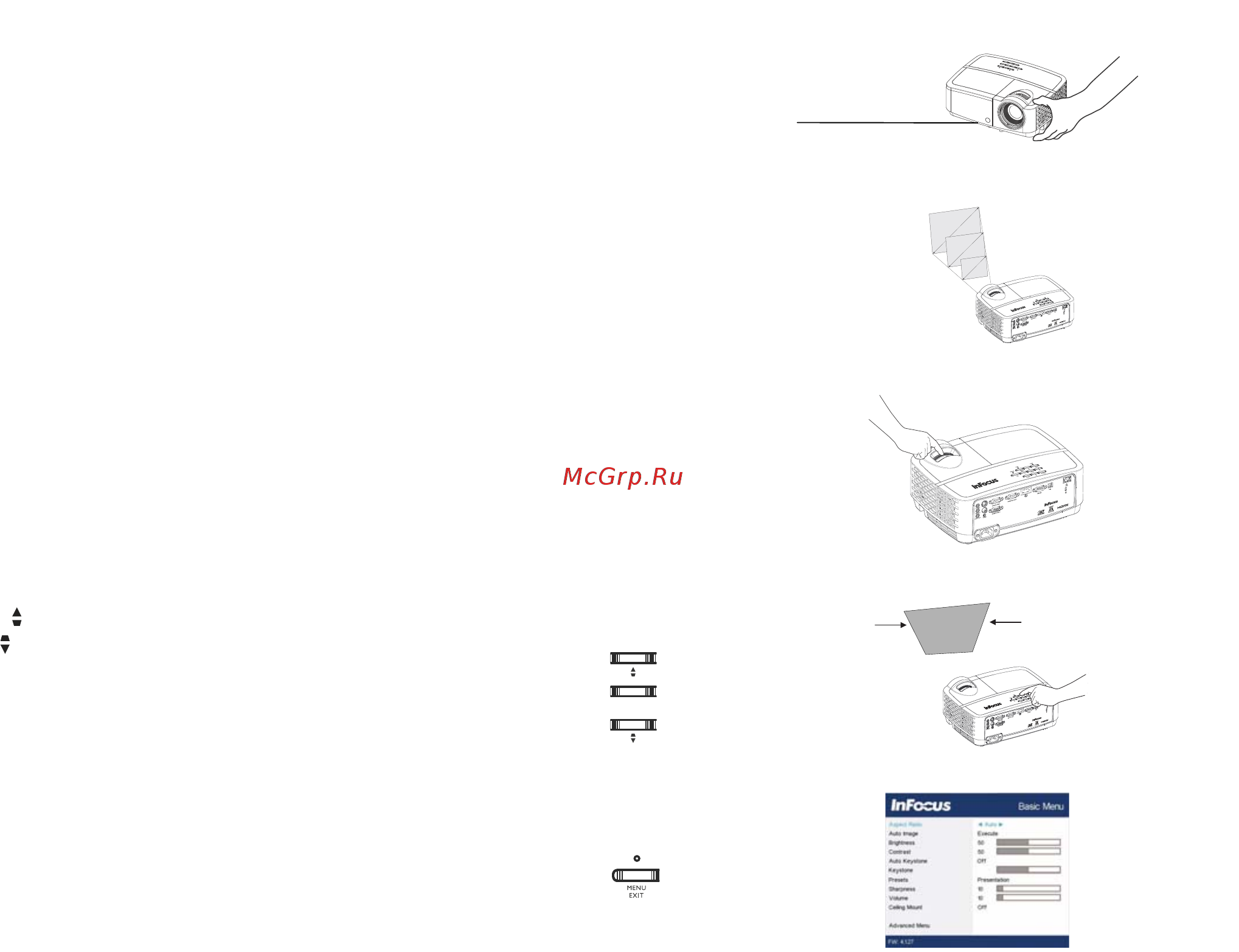

Adjusting the image

If necessary, adjust the height of the projector by rotating the elevator foot to

extend the foot.

If necessary, rotate the leveling foot located at the rear of the projector.

Avoid placing your hands near the hot exhaust vent at the front of the projector.

Position the projector the desired distance from the screen at a 90 degree angle to

the screen.

See page 6 for a table listing screen sizes and distances.

Adjust the focus.

If the image is not square, first make sure that the projector is perpendicular to the

screen. If the image is larger or smaller on the top or bottom edge of the screen,

press the top Keystone button

to reduce the upper part of the image, and press

the bottom Keystone button to reduce the lower part.

If the left or right side of the screen is larger or smaller the other, you can turn the

projector to the left or to the right a few degrees to square the image.

Adjust the Contrast or Brightness in the Basic Menu. See page 24 for help with

these menu adjustments.

adjust height

elevator

foot

S-VIDEO

B-B

adjust distance

S-VIDEO

USB-B

adjust focus

S-VIDEO

USB-B

adjust keystone

adjust Basic Menu
