36
Overview of Components
Important
y
This connector supports 5050 single color LED strips with the maximum power
rating of 3A (12V). Please keeping the LED strip shorter than 2 meters to prevent
dimming.
y
Always turn off the power supply and unplug the power cord from the power outlet
before installing or removing the LED strip.
y
Please use GAMING APP to control the extended LED strip.
Video Demonstration
Watch the video to learn how to install 5050 RGB LED strips to RGB LED
connector.
https://youtu.be/CqNHyADzd2Q

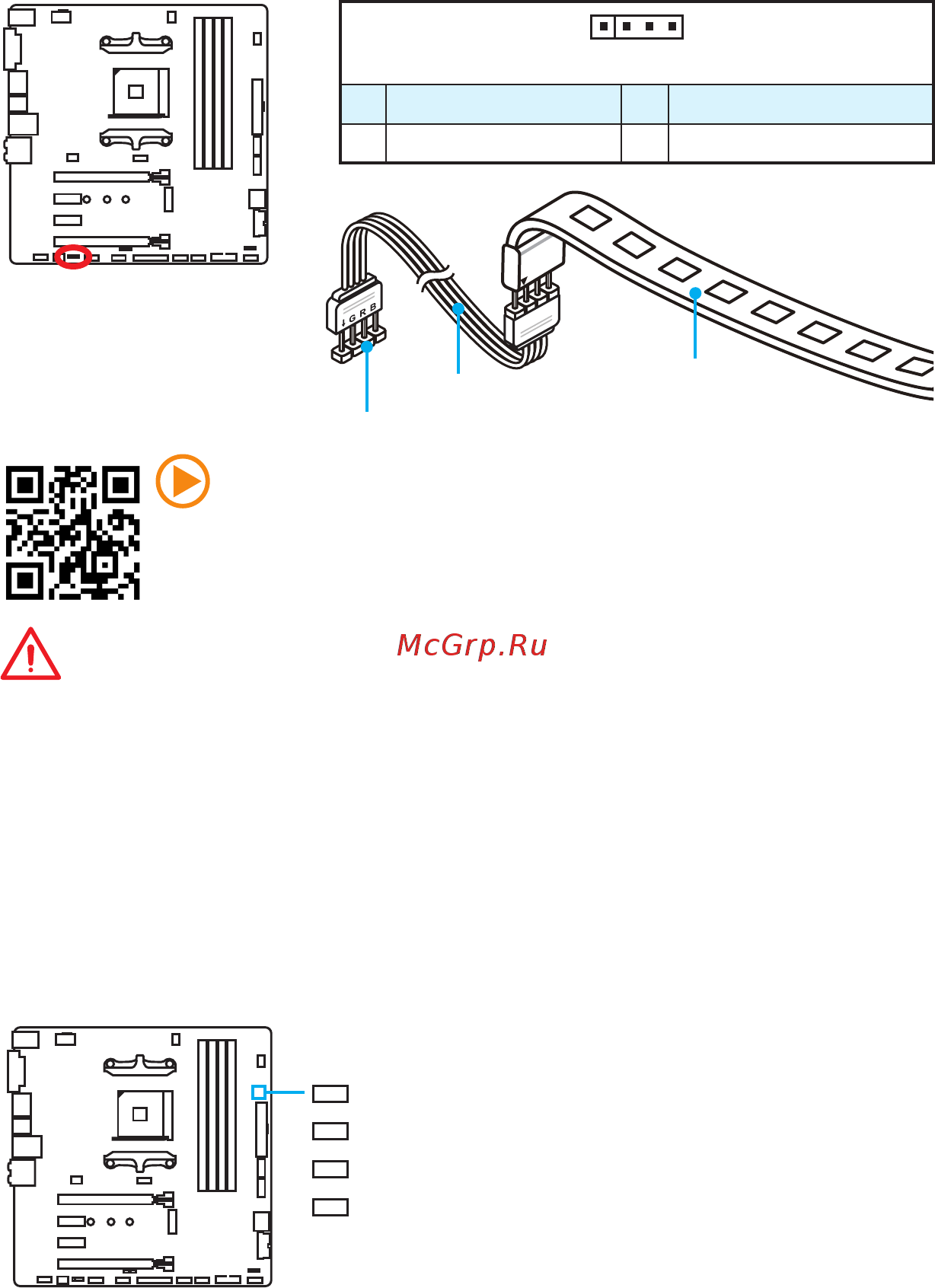

JLED1: RGB LED connector
These connectors allow you to connect the 5050 RGB LED strips.
1
JLED1
Extension cable
5050 LED strip
1
1 +12V 2 G
3 R 4 B
EZ Debug LED
These LEDs indicate the debug status of the motherboard.
CPU - indicates CPU is not detected or fail.
DRAM - indicates DRAM is not detected or fail.
VGA - indicates GPU is not detected or fail.
BOOT - indicates the booting device is not detected
or fail.
