INSTALLATION

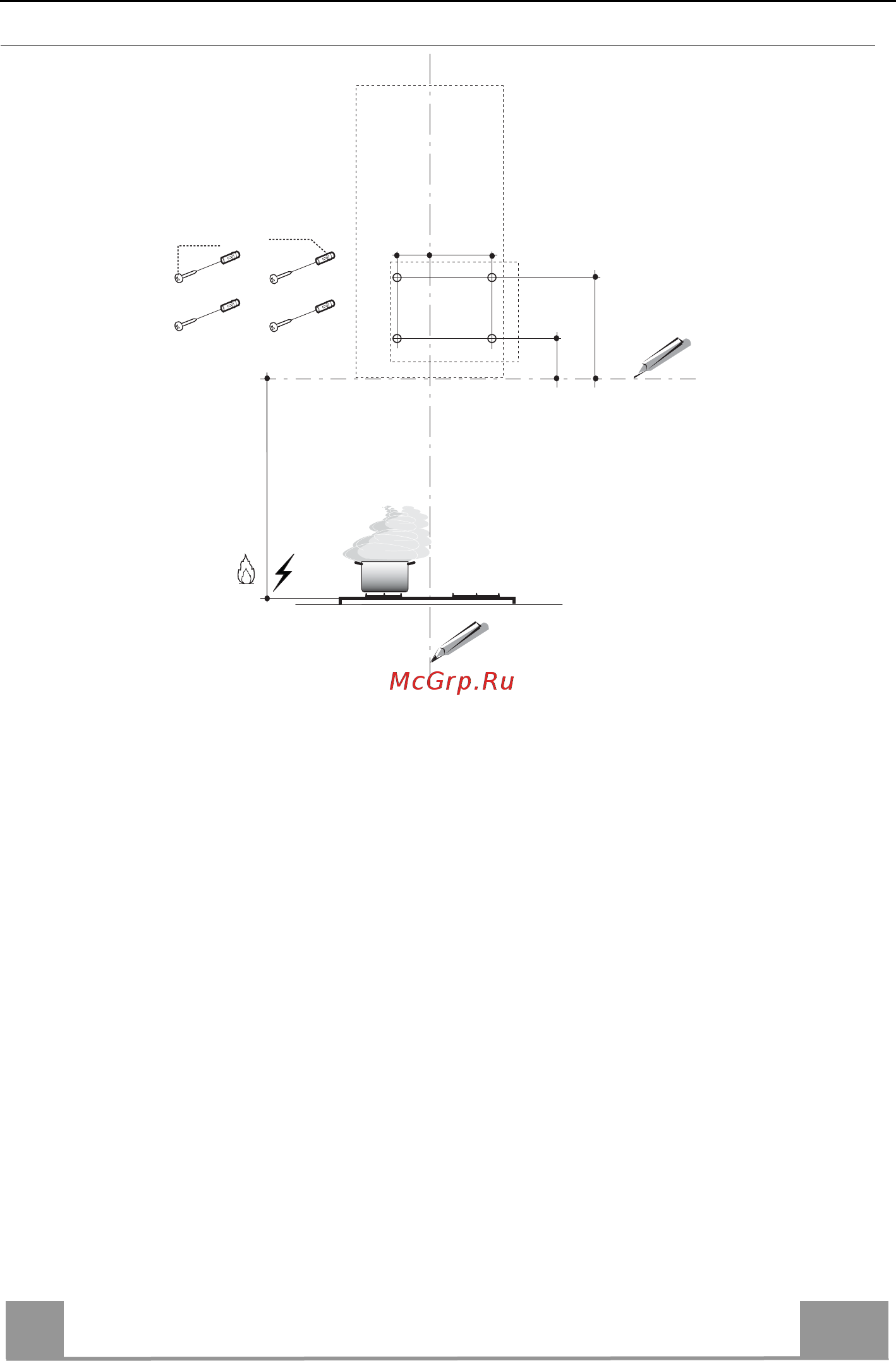

Drilling the Wall

12a

650 mm min

164

261

The person fitting the hood has to bear in mind that there must be a minimum distance of at least

8-10 Cm left between the top of the hood and the surface above it (ceiling or shelf).

Draw the following on the Wall:

• a Vertical line up to the ceiling or top surface, at the centre of the area in which the Hood is

to be fitted;

• a Horizontal line: 650 mm min. above the Hob;

• Mark a reference point, as indicated, 78 mm and 261 mm above the horizontal reference

line.

• Mark a reference point, as indicated, 164 mm to the right of the vertical reference line and

59 mm to the left of the vertical reference line, checking to ensure it is level.

• Drill the points marked using a ø 8 mm drill bit.

• Insert the plugs 11 into the holes.

• Tighten the 4 screws 12a (4.2 x 44.4) provided in the hood support fixing bores, leaving a

gap of 5-6 mm between the wall and the heads of the screws.
