Flue assembly

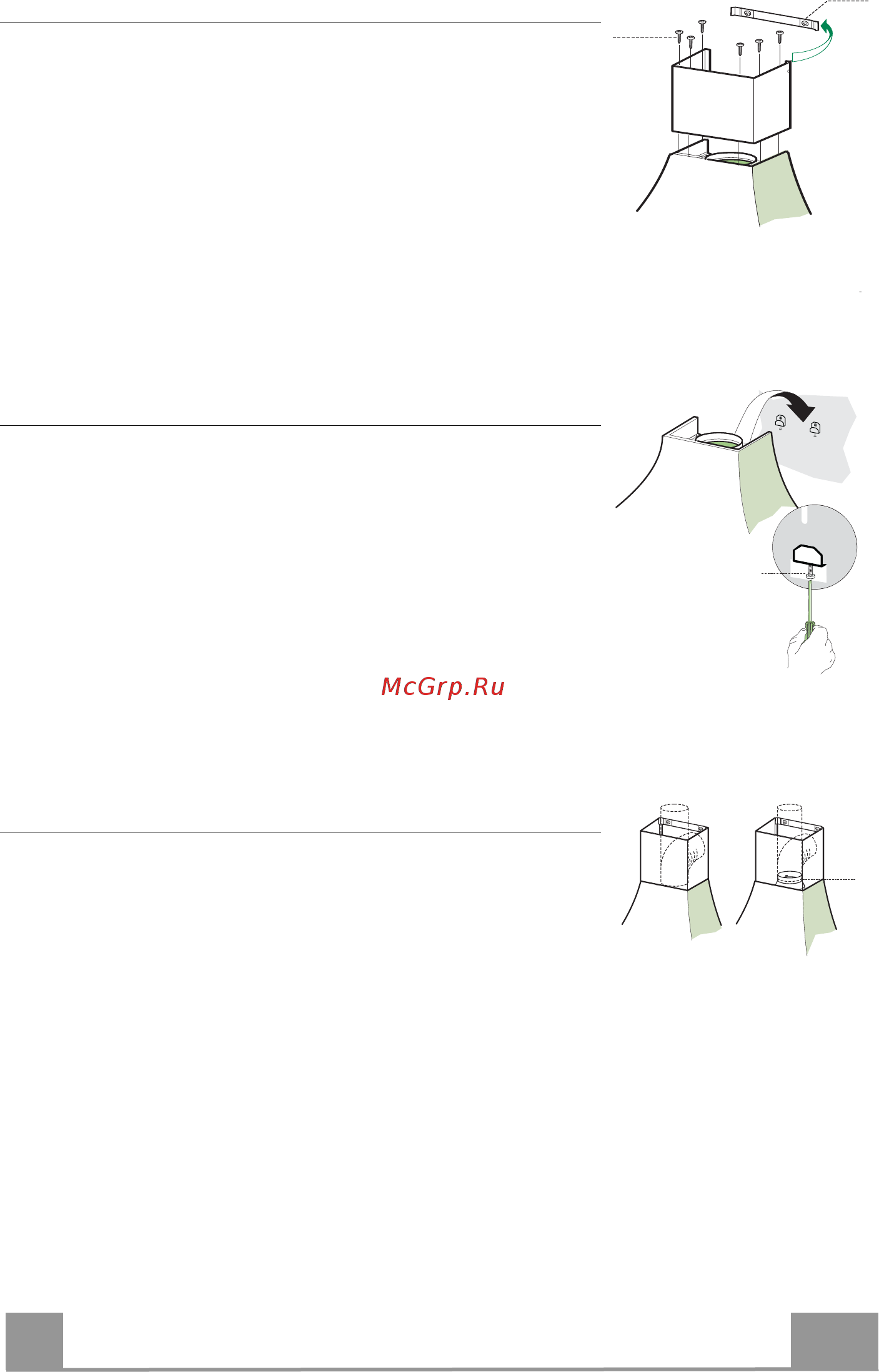

• Slightly widen the two sides of the flue and hook them behind

the bracket 7.2 , making sure that they are well seated.

• Fix the lower section of the flue and the cable raceway to the

hood body from above, using the 6 screws 12m (2.9 x 18) pro-

vided.

7.2

12m

Mounting the hood body

• Adjust the two screws Vr, on brackets 11a, to a minimum.

• Hook the hood canopy onto the two brackets 11a.

• Remove the metal grease filters by turning the handles pro-

vided.

• From inside the hood canopy, adjust the screws Vr to set the

Hood Canopy level.

Connections

DUCTED VERSION AIR EXHAUST SYSTEM

When installing the ducted version, connect the hood to the

chimney using either a flexible or rigid pipe ø 150 or 120 mm,

the choice of which is left to the installer.

• To install a ø 120 mm air exhaust connection, insert the re-

ducer flange 9 on the hood body outlet.

• Fix the pipe in position using sufficient pipe clamps (not sup-

plied).

• Remove possible charcoal filters.

ø 120ø 150
