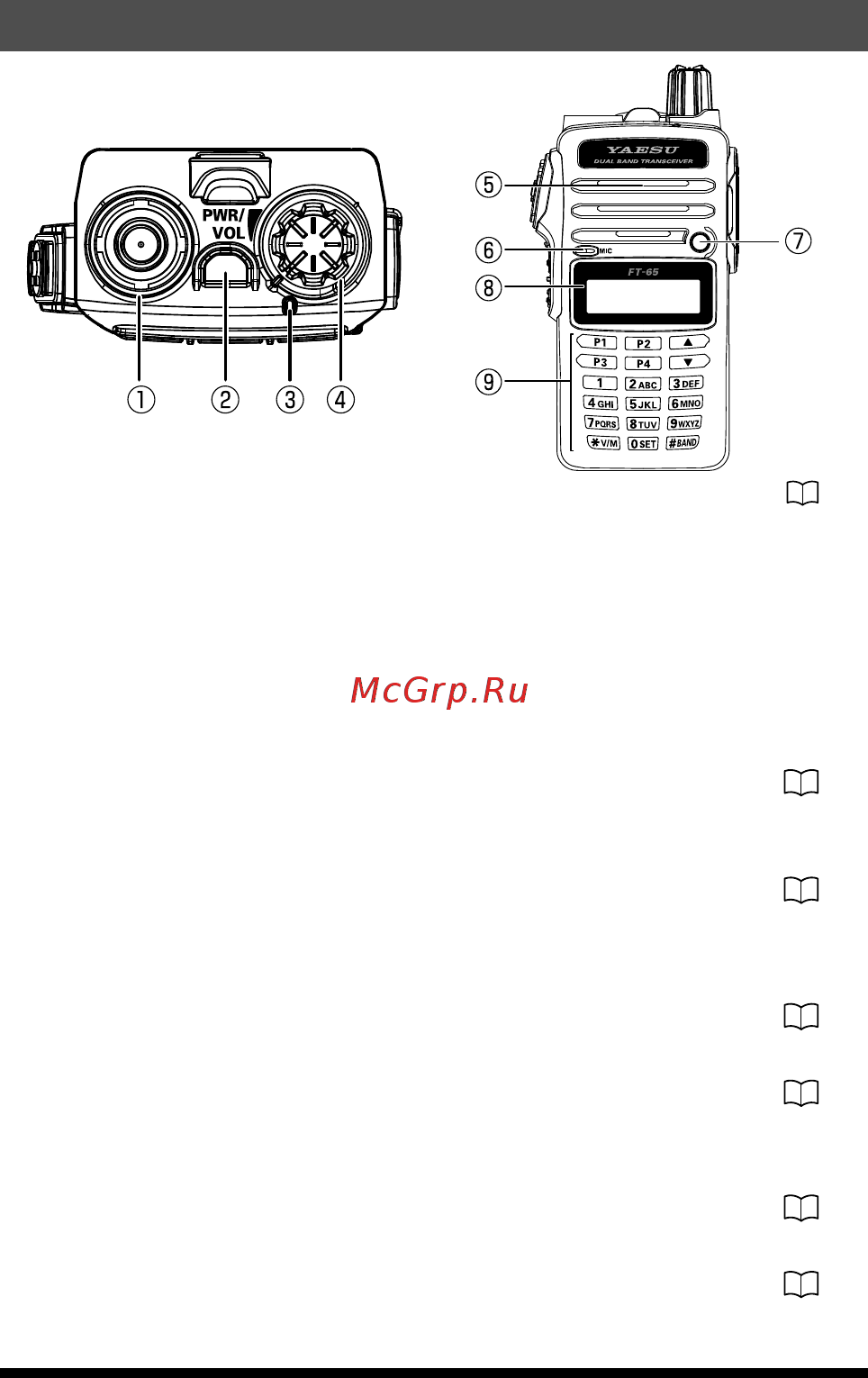

Control & Connections (Top & Front Panel)
Antenna Jack ........................................................................ 16
Connect the supplied SMA female antenna (or another antenna present-
ing a 50-Ohm impedance) here.
Emergency key
• Press this switch briey to turn the LED Flash-Light.
• Press and hold it for three seconds to enable the Emergency Alarm
beep functions.
• Press the keypad F key, and then press this switch to blink the LED
Flash-Light for SOS.
TX/BUSY Indicator Lamp
...................................................... 20
This indicator glows green when the squelch opens, and it glows red
during transmit.
PWR/VOL Knob
..................................................................... 20
Turn this control clockwise to turn the transceiver ON and to increase the
volume. Counter-clockwise rotation into the click-stop will turn the trans
-
ceiver OFF.
Speaker
................................................................................. 20
The internal speaker is located here.
Microphone
........................................................................... 22
The internal microphone is located here.
LED Flash-Light
LCD (Liquid Crystal Display)
............................................... 13
The display shows current operating condition.
Keypad
.................................................................................. 15
These 18 keys select the important operating functions of the FT-65R/E.
11FT-65R/FT-65E Operating Manual
