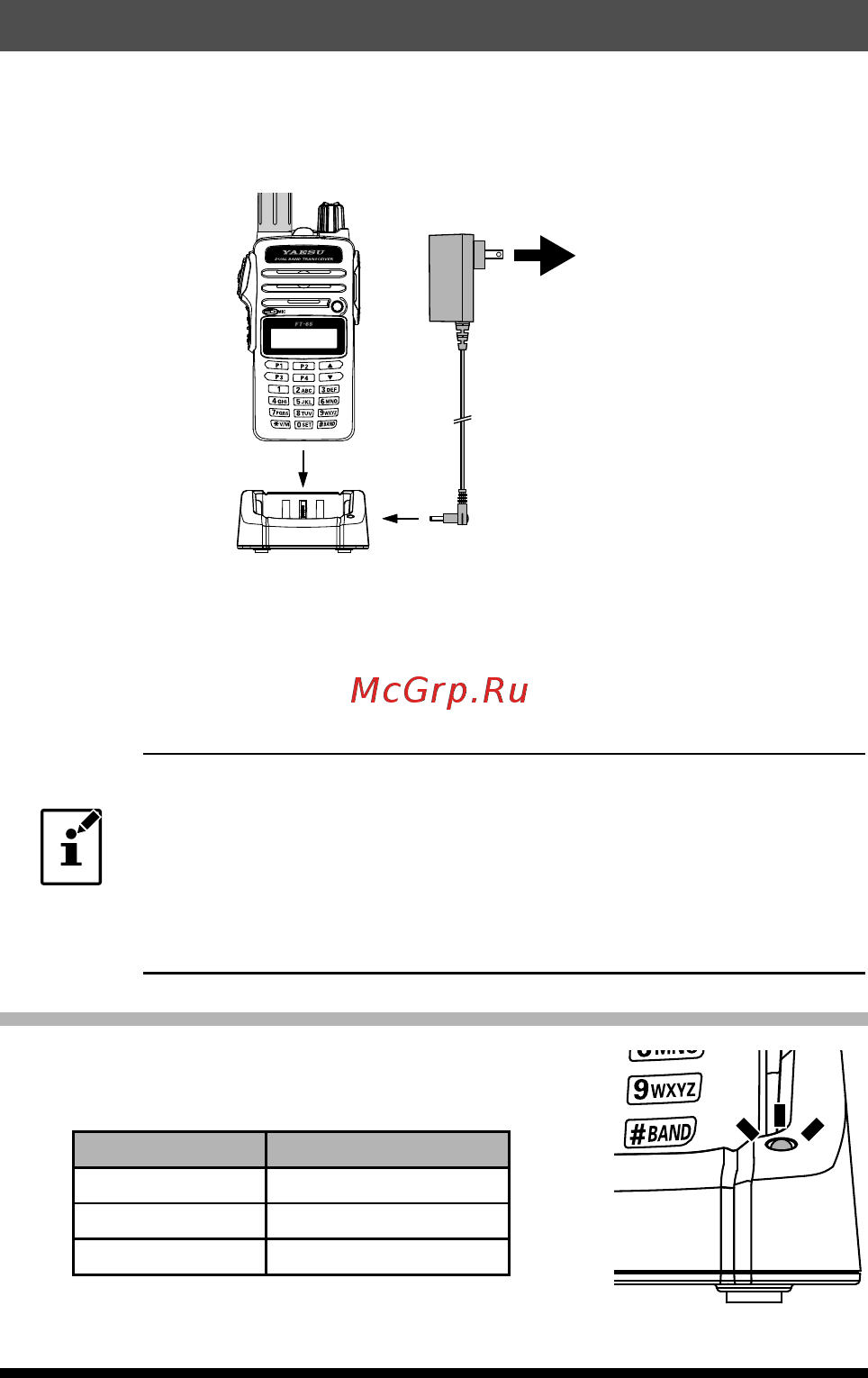

Charging the Battery Pack
If the battery has never been used, or its charge is depleted, it may be
charged by placing the FT-65R/E in the SBH-22 Rapid Charger desktop cra
-
dle, connected with the SAD-20B/C/U/G AC adapter.
DC jack
AC line outlet
A fully-discharged SBR-25LI Battery Pack will be charged completely in
about 3.5 hours (depending on the battery being charged). Disconnect the
SAD-20B/C/U/G from the DC jack and the AC line outlet.
• The SAD-20B/C/U/G is not designed to power the trans-
ceiver for operation (reception or transmission).
• Please be advised that the SAD-20B/C/U/G may contribute
noise to TV and radio reception in the immediate vicinity, so
we do not recommend its use adjacent to such devices.
• It takes about 4.5 hours to charge the SBR-26LI (optional).
About Desktop charger lamp
The battery charging status is indicated by the
desktop charger lamp, as shown in the below table:
Lamp Status Description
Red lighting Charging
Green lighting Charge Complete
Red blinking Charge Error
FT-65R/E / SBH-22 with SAD-20B
(Example of USA model)
18 FT-65R/FT-65E Operating Manual
