ASRock X99 Taichi [15/98] I o panel
![ASRock X99 Taichi [15/98] I o panel](/views2/1307872/page15/bgf.png)
English
X99 Taichi
8 9

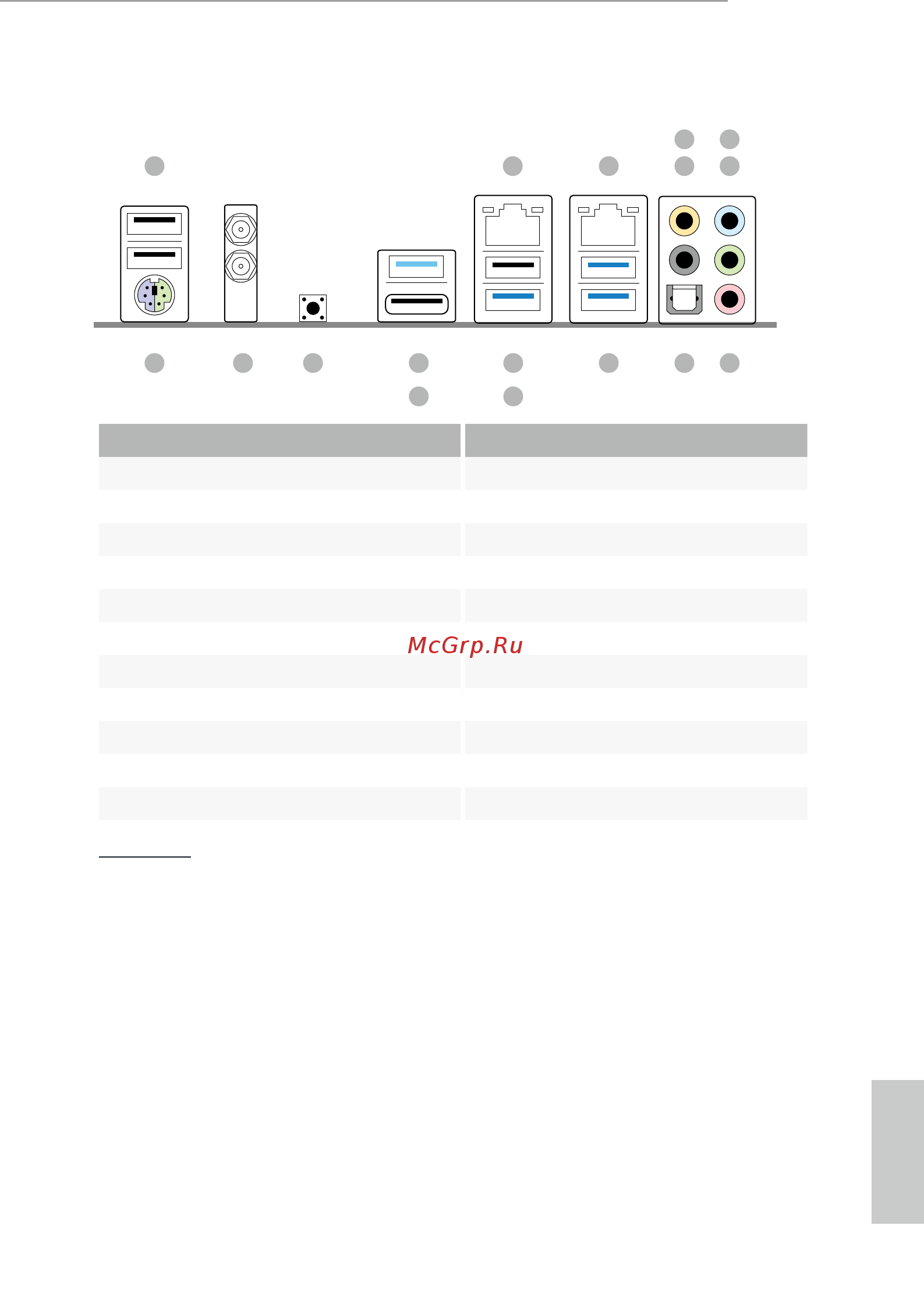

1.4 I/O Panel
No. Description No. Description
1 USB 2.0 Ports (USB12) 10 USB 3.0 Ports (USB3_34)
2 LAN RJ-45 Port 11 USB 2.0 Port (USB7)
(Intel® I211AT)* 12 USB 3.0 Port (USB3_5)
3 LAN RJ-45 Port 13 USB 3.1 Type-A Port (USB31_TA_1)
(Intel® I218V)* (ASMedia ASM1142)
4 Central / Bass (Orange) 14 USB 3.1 Type-C Port (USB31_TC_1)
5 Rear Speaker (Black) (ASMedia ASM1142)
6 Line In (Light Blue) 15 Clear CMOS Switch
7 Front Speaker (Lime)** 16 Antenna Ports
8 Microphone (Pink) 17 PS/2 Mouse/Keyboard Port
9 Optical SPDIF Out Port
CAUTION:
For operating system installation, be sure to plug your USB ash drive into the USB 2.0
Ports (USB12).
1
17 891011
12
13
14
1516
32 5
4
7
6
