Asus B250M-C PRO [13/26] Rear panel connectors

ASUS B250M-C PRO

1-5

1. PS/2 mouse port (green). This port is for a PS/2 mouse.

2. DVI-I port. This port is for any DVI-I compatible device.

3. DisplayPorts. These ports are for a DisplayPort-compatible device.

4. LAN (RJ-45) port. This port allows Gigabit connection to a Local Area Network (LAN)

through a network hub.

LAN port LED indications

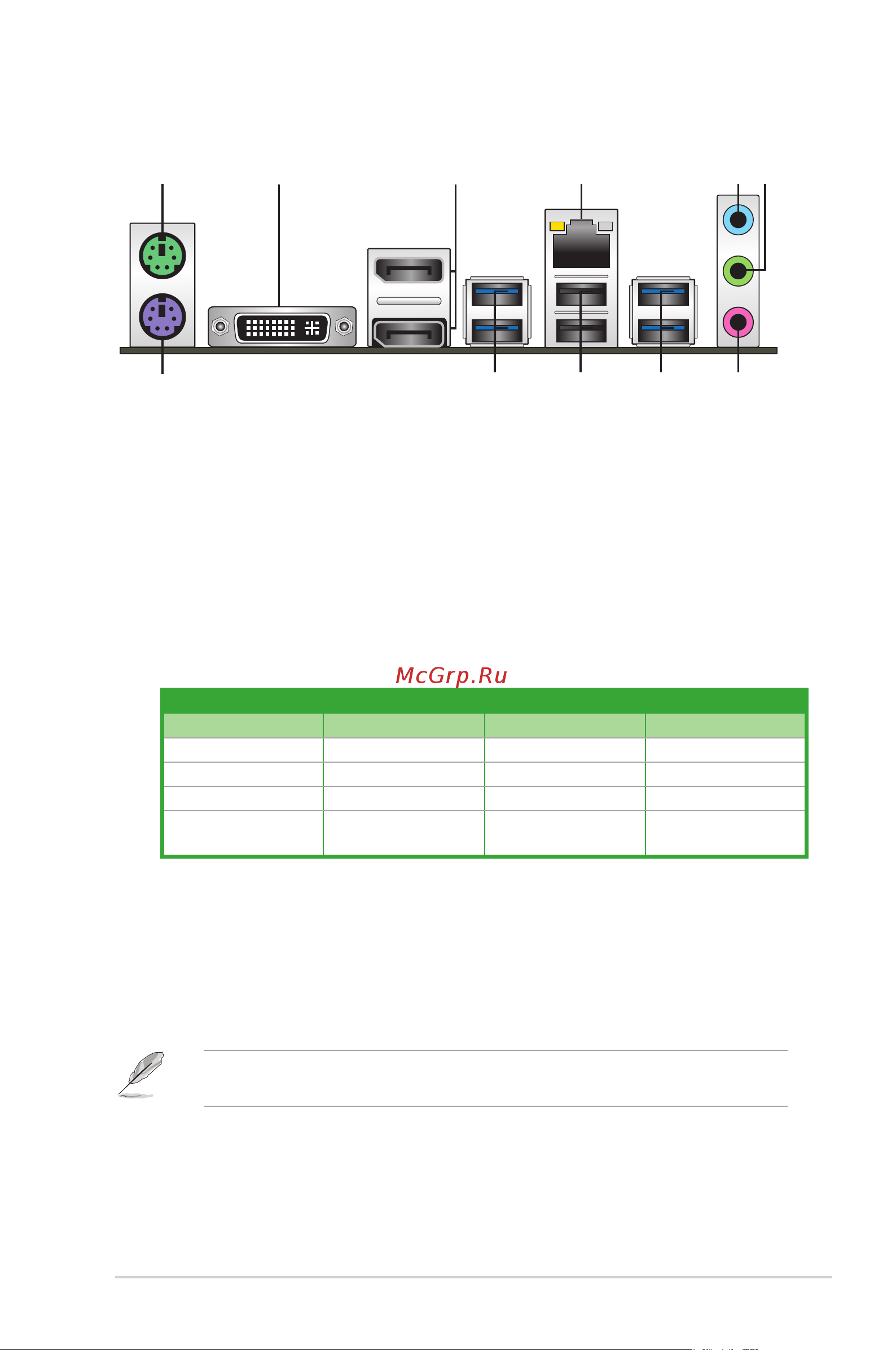

Rear panel connectors

1 43

810

5 6

9 8

5. Line In port (light blue). This port connects to the tape, CD, DVD player, or other

audio sources.

6. Line Out port (lime). This port connects to a headphone or a speaker. In the 4.1, 5.1

and 7.1-channel congurations, the function of this port becomes Front Speaker Out.

Activity/Link LED Speed LED

Status Description Status Description

Off No link OFF 10Mbps connection

Orange Linked ORANGE 100Mbps connection

Orange (Blinking) Data activity GREEN 1Gbps connection

Orange (Blinking

then steady)

Ready to wake up

from S5 mode

_ _

7. Microphone port (pink). This port connects to a microphone.

Refer to the audio conguration table for the function of the audio ports in 2.1, 4.1, 5.1, or

7.1-channel conguration.
