Chapter3:Maintenance
19
8

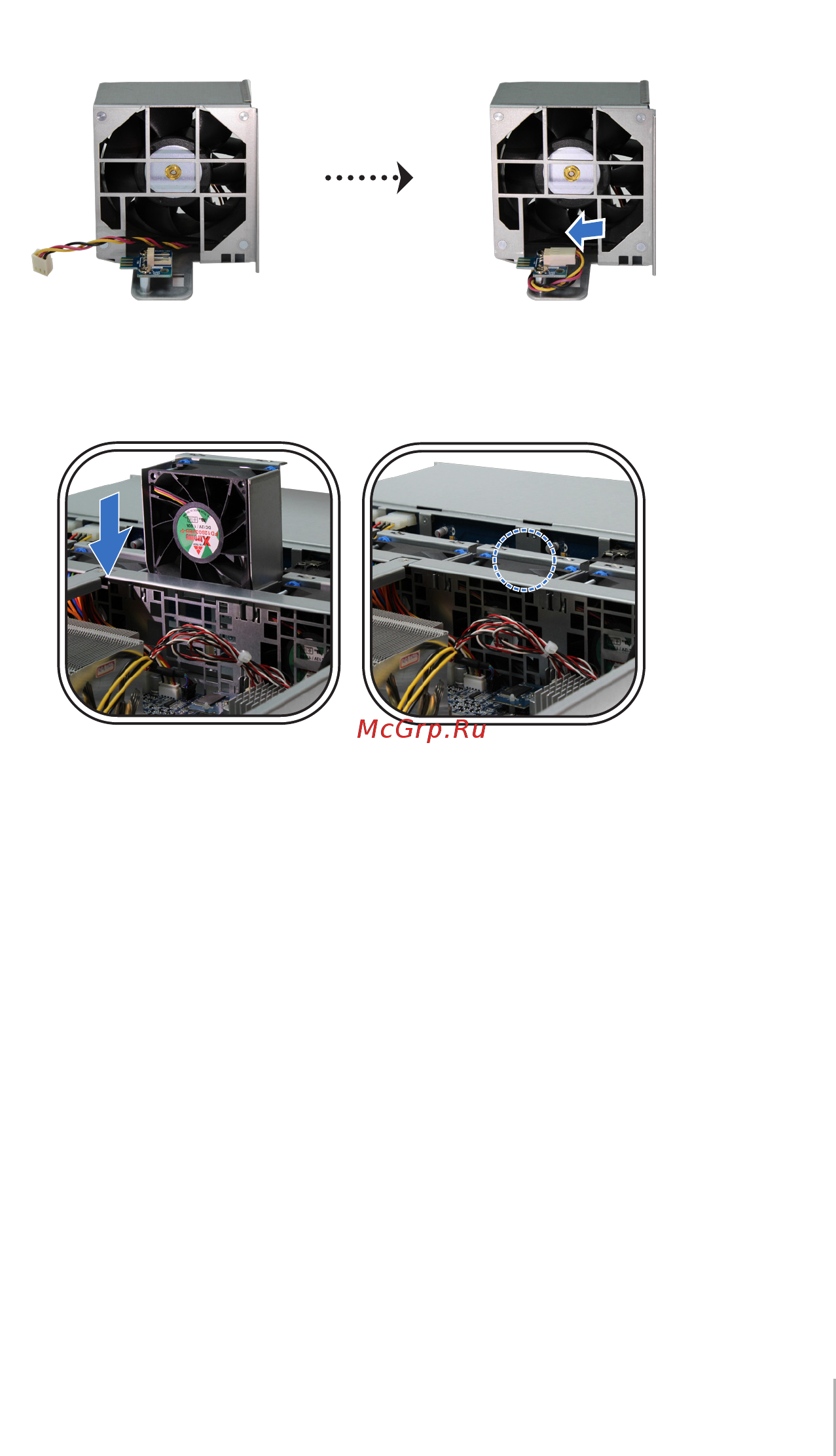

Applyrmpressureandslidethepowercordontothepowerport.
9
Slidethenewcoolingfanintotheexpansionunit.Makesurethepowerport
isalignedproperly.
a
b
