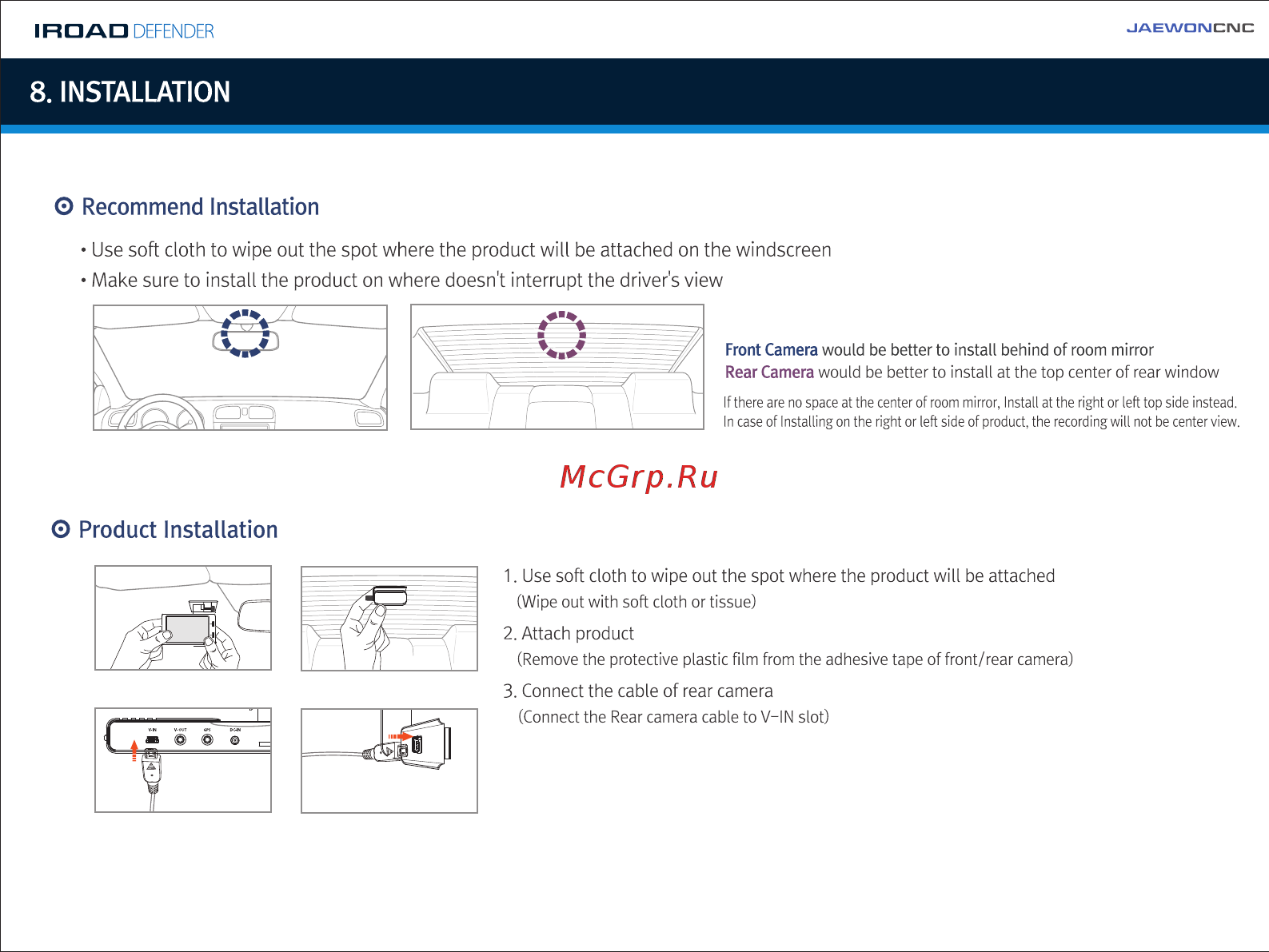

IRQ AO DEFENDER 8 INSTALLATION 0 Recommend Installation Use soft cloth to wipe out the spot where the product will be attached on the windscreen Make sure to install the product on where doesn t interrupt the driver s view Front Camera would be better to install behind Rear Camera would be better to install at the t If there are no space at the center of room mirror Ins In case of Installing on the right or left side of produc Product Installation 1 Use soft cloth to wipe out the spot where the product will be attached Wipe out with soft cloth or tissue 2 Attach product Remove the protective plastic film from the adhesive tape of front rear camera 3 Connect the cable of rear camera Connect the Rear camera cable to V IN slot
