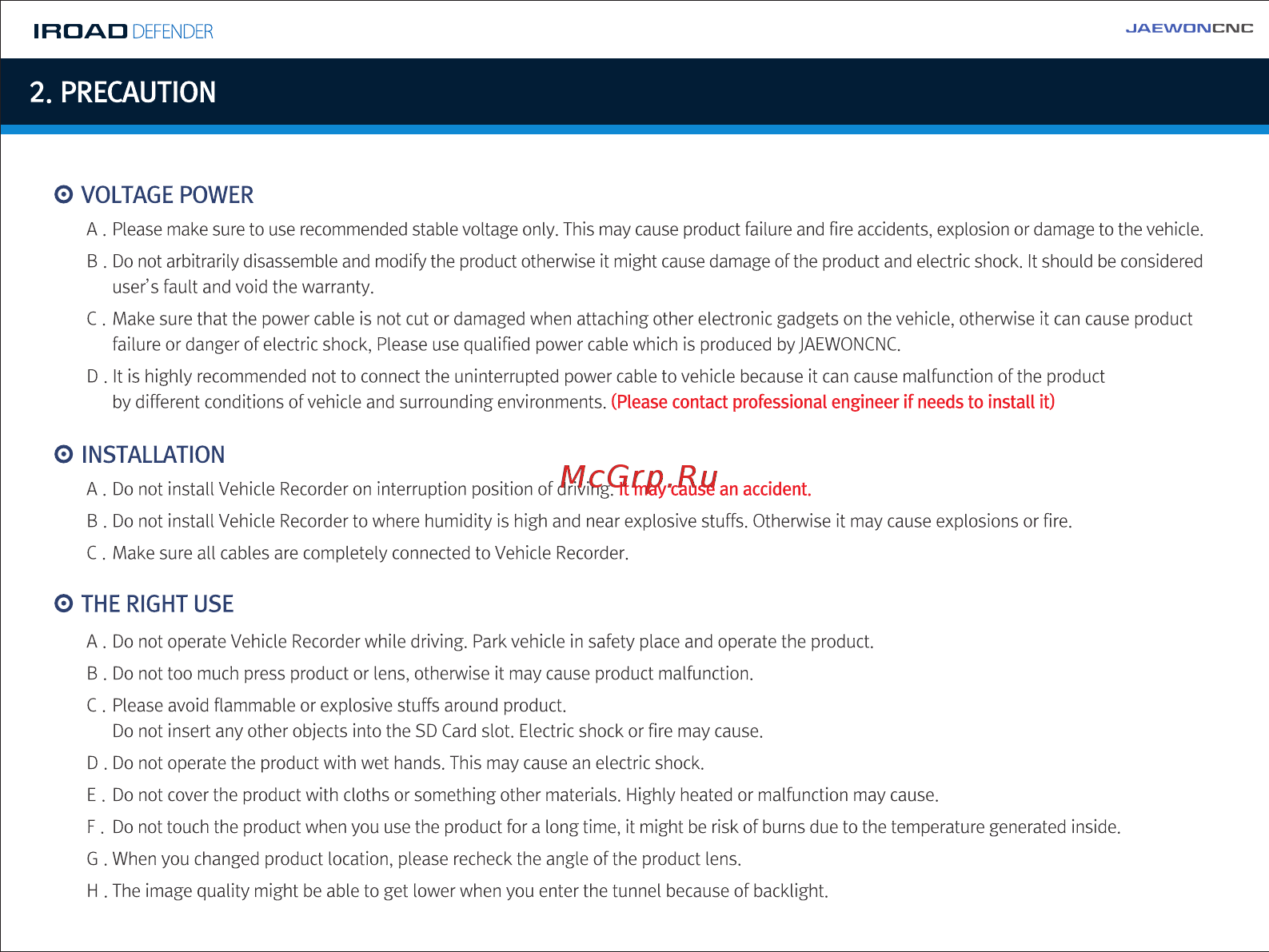

IRQ AD DEFENDER 2 PRECAUTION 0 VOLTAGE POWER A Please make sure to use recommended stable voltage only This may cause product failure and fire accidents explosion or damage to the vehic B Do not arbitrarily disassemble and modify the product otherwise it might cause damage of the product and electric shock It should be considere user s fault and void the warranty C Make sure that the power cable is not cut or damaged when attaching other electronic gadgets on the vehicle otherwise it can cause product failure or danger of electric shock Please use qualified power cable which is produced by JAEWONCNC D It is highly recommended not to connect the uninterrupted power cable to vehicle because it can cause malfunction of the product by different conditions of vehicle and surrounding environments Please contact professional engineer if needs to install it 0 INSTALLATION A Do not install Vehicle Recorder on interruption position of driving It may cause an accident B Do not install Vehicle Recorder to where humidity is high and near explosive stuffs Otherwise it may cause explosions or fire C Make sure all cables are completely connected to Vehicle Recorder THE RIGHT USE A Do not operate Vehicle Recorder while driving Park vehicle in safety place and operate the product B Do not too much press product or lens otherwise it may cause product malfunction C Please avoid flammable or explosive stuffs around product Do not insert any other objects into the SD Card slot Electric shock or fire may cause D Do not operate the product with wet hands This may cause an electric shock E Do not cover the product with cloths or something other materials Highly heated or malfunction may cause F Do not touch the product when you use the product for a long time it might be risk of burns due to the temperature generated inside G When you changed product location please recheck the angle of the product lens H The image quality might be able to get lower when you enter the tunnel because of backlight
