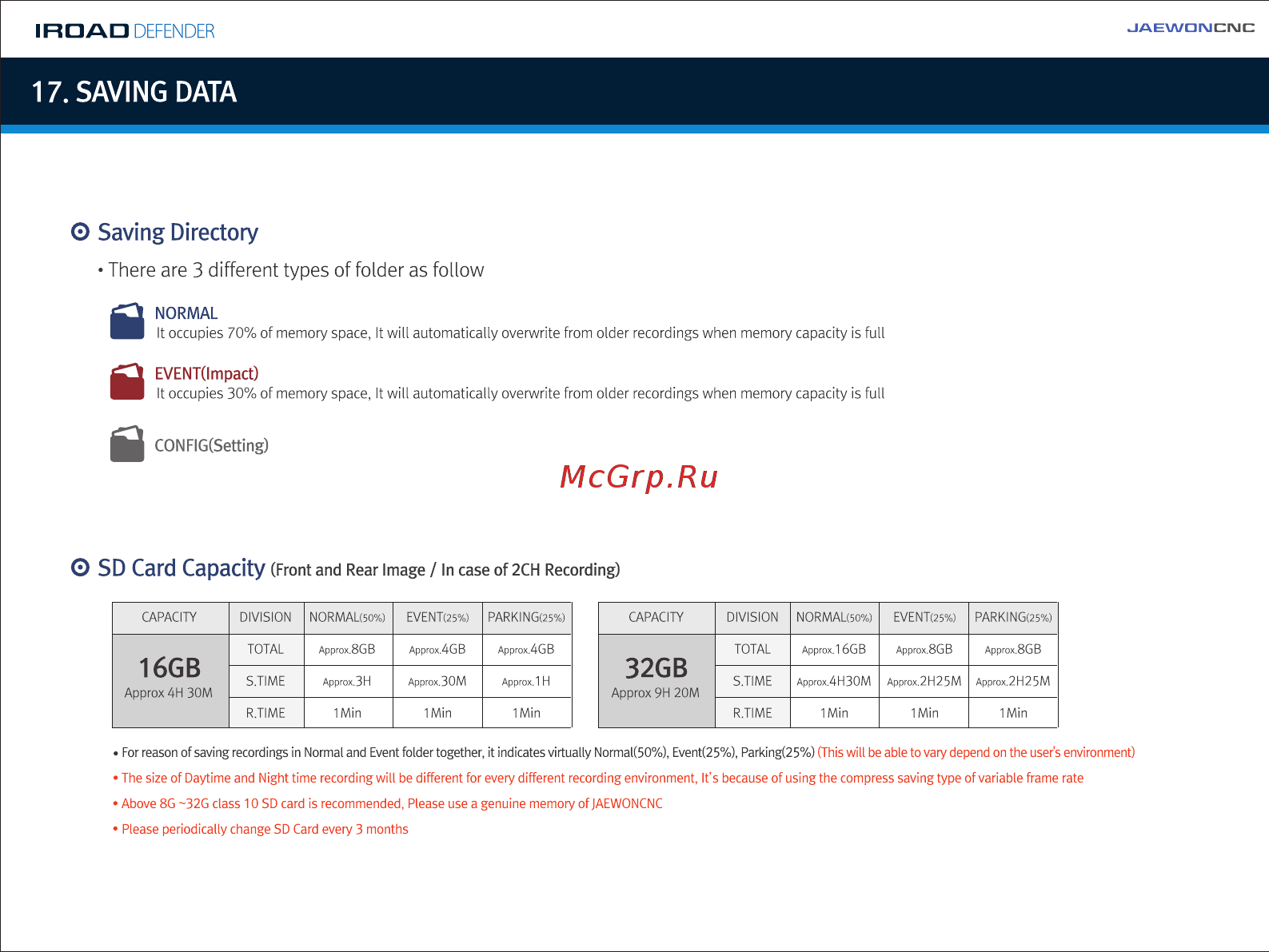

I RO AO DEFENDER 17 SAVING DATA 0 Saving Directory There are 3 different types of folder as follow Ill NORMAL It occupies 70 of memory space It will automatically overwrite from older recordings when memory capacity is full EVENKI m pact It occupies 30 of memory space It will automatically overwrite from older recordings when memory capacity is full CONFIG Setting 0 SD Card Capacity Front and Rear Image In caseof 2CH Recording CAPACHY 16GB Approx 4H 30M DIVISION NORMALÎSÛZJ EVEN 1 25 PARKING 25 i TOTAL Approx 8GB A TOX 4GB A rox 4GB S TIME Approx 3H Approx 30M Approx 1 H R TIME 1 Min 1Min IMin For reason of saving recordings in Normal and Event folder together it indicates virtually Normal 50 Event 25 Parking 25 This will be able to vary dep The size of Daytime and Night time recording will be different for every different recording environment It s because of using the compress saving type of variab Above 8G 32G class 10 SD card is recommended Please use a genuine memory of JAEWONCNC Please periodically change SD Card every 3 months
