Инструкция по эксплуатации Страница: 47

IROAD DEFENDER [47/55] Dedicated viewer

Содержание

Defender 1
I instruction 1
Read user manual carefully in order to protect the user s safety and ensure the accurate use of the product 1
Appendix 2
Before using 2
Dedicated pc viewer 2
Lcd menu 2
Product information 2
This product 2
Before using this product 3
Copyrights and trademark 4
E this product might support accident proof but jaewoncnc is not responsible for the situation 4
Guarantee and supporting 4
Iroad information 4
Loss of data even it might not be able to record by just minor impact 4
Thanks for choosing jwoncnc iroad vehicle recorder 4
This manual is property of jaewoncnc no one is allowed to attempt to make a copy editing and translations 4
This product can be recording accidents and available to use the recorded data but jaewoncnc is not responsible for product failure and 4
Installation 5
It may cause an accident 5
Please contact professional engineer if needs to install it 5
Precaution 5
The right use 5
Voltage power 5
F do not remove sd card or turn off the power cable during the firmware updating it may cause malfunction or loss of data 6
F memory card is expendable memory card s warranty is 6 months after purchasing 6
In order to reliable use of memory card follow guidelines as follow 6
Management 6
Memory card and caution 6
Percaution 6
Periodic sd card format and recording check are required 6
The right use 6
Turn recorder off where is direct sunlight or high temperature 6
Product information 7
E m messenger 8
High quality font rear 2 channel hd 8
Inch touch wide lcd 16 9 8
Pip split screen 8
Product overview 8
Screen zoom function 8
Automatic parking mode and motion detect function 9
Built in uninterrupted power function 9
Dedicated pc viewer smartphone playback 9
Easy format 9
External gps 9
Firmware update 9
Front high intensity security led 9
Microsd easy format function 9
Product overview 9
Safeguard for all your safety 9
Smartphone 9
Sound recording 9
Variable recording mode 9
Voice guidance 9
Voice recording voice guidance 9
Component 10
Iroad defender basic components 10
Iroad defender optional product 10
Name of each part 11
Installation 12
Product installation 12
Recommend installation 12
Connect external gps 0 connect av cable 13
Installation 13
Product installation 13
How to install uninterrupted power fuse cable 14
Uninterrupted power function 14
Uninterrupted power fuse cable 14
Iro ao defender 15
O iroad defender specification 15
Specification 15
Product information 16
Automatically starts 17
Event lmpact mode recording 17
I ro ad defender 17
In event of detect damage or impact to vehicle event recording will be stored automatically 17
Normal mode recording 17
Normal recording if vehicle s ignition starts 17
Product 17
Recording mode 17
Recording will be saved in normal recording folder by certain time 17
That s user s option to change sensitivity of sensor that will be able to have different stored time consequently 17
Automatic parking mode 18
Case of normal recording while parked 18
In case of motion detect 18
Irq ad defender 18
It automatically switches to parking mode in 20 minutes after ignition off in case of installed uninterrupted power fuse cable 18
Motion detect mode automatically start in parking mode 18
Motion event detect recording 18
Motion recording will be stored in normal folder impact recording will be stored in event folder 18
Normal impact detect recording 18
Recording mode 18
Sec before detecting impact of vehicle 50 sec after 1 minute in total be stored in event folder 18
Sec before detecting movement or impact of vehicle 50 sec after 1 minute in total 18
Booting power supplied voice guidance 19
Event event recording 19
Irq ad defender 19
Normal recording 19
Operation 19
Operation scenario 1 19
Power off power disconnect 19
Power on power supplied 19
Event mode 20
Iroad defender 20
Memory fault 20
Motion detect 20
Operation 20
Operation scenario 2 20
Or remove warning voice guidance 20
Parking 20
Parking mode 20
Completed display on lcd 21
Firmware upgrade update voice guidance 21
Green red 21
Iro ao defender 21
Mute display on screen 21
Operation 21
Operation scenario 3 21
Orange led activated 21
Record led and recording work will be turned off when enter to menu mode 21
Sd format voice guidance 21
Sec cross flickering 21
Config setting 22
Evenki m pact 22
Front and rear image in caseof 2ch recording 22
I ro ao defender 22
Normal 22
Saving data 22
Saving directory 22
Sd card capacity 22
There are 3 different types of folder as follow 22
Enable preview setting 18 23
Irc ad defender 23
Lcd menu 23
Lcd menu mode 9 23
Lcd playback 21 23
Memory format 3 23
Mic speaker 4 23
Parking mode 25 23
Recording 20 23
Split screen pip 35 23
System setting 6 23
Enable preview setting 24
Lcd screen saver 24
Mlc 0n off 24
Pip location 24
Switching screen 24
Lcd menu mode 25
Mic speaker 25
O memory format 25
O system setting 25
Parking mode 25
Playback 25
Recording 25
O recording 26
Recording 26
Start recording with preset recording mode 26
Lcd playback 27
O event 27
O normal 27
Parkin 27
Parking 27
Storage 27
Playview 28
And long memory card use 29
Memory format 29
O highly recommended to format sd card a week regularly in order to keep stable recording condition 29
Mic speaker setting 30
O speaker volume 30
Set speaker volume with button 30
Set voice recording on off 30
Voice recorder 30
E m messenger 31
Parking mode setting 31
Recording mode switches to parking mode in preset time after ignition off 31
Set parking e m messenger on off check status of parking mode briefly 31
Set two types of parking mode imotion event normal event 31
Swiching parking mode 31
System setting 32
Frames sec 33
Video setting 33
G sensor motion setting 34
Display current voltage status 35
O current voltage 35
O off voltage 35
O protection mode 35
Safeguard 35
Set safeguard function on off 35
Set the voltage level of battery prevention 11 v 12 4v 35
Touch panel collection 37
Touch panel correction 37
Format alarm interval 38
Repeat time interval setting for 7 10 5 20 days 38
Sd format alarm 38
Sd format alarm on off 38
Display current firmware version 39
Display current hardware information 39
H w ver 39
Product information 39
S w ver 39
Gmt setting 40
Change the pip location on lcd screen 41
Lcd full screen during real time recording 41
Pip split screen 41
Dedicated pc viewer 42
Dedicated viewer 43
Install program 43
O program installation 43
Visit iroad website 43
Www jaewoncnc co kr 43
Dedicated viewer run 44
O startup viewer 44
Dedicated viewer 45
O menu 1 45
Dedicated viewer 46
Iroao defender 46
Menu 2 46
W m m ii m w 46
Dedicated viewer 47

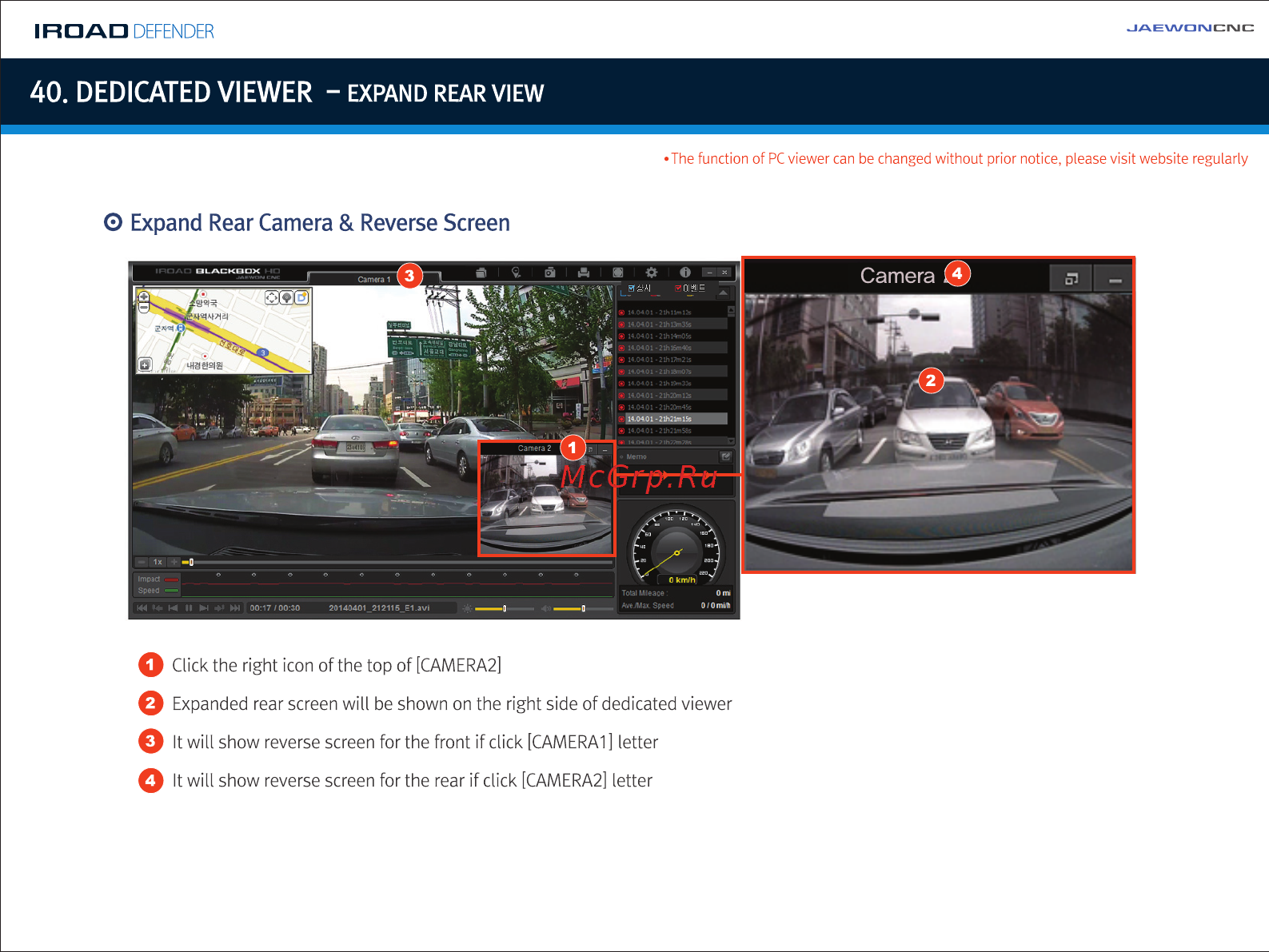

Expand rear camera reverse screen 47
Expand rearview 47
Dedicated viewer zoom 48
Dedicated viewer map 49
Dedicated viewer 50
Irq ad defender 50
Lil summer time summertime on off 50
Q cfg path removable storage or setting file path 50
Q default set to factory default 50
Q effect set effect sound event im pact on off 50
Q frames sec select min 15fps or max 30fps 50
Q g sensor impact sensitivity low less sensitive high sensitive 50
Q motion motion detect on off 50
Q system time set time according to pc time 50
Q voice recording on off 50
Q volume adjust speaker volume or mute off 50
Setting 50
Standard time zone set time 50
V out select v out 50
Ver info display current version 50
Voice guidance select voice guidance 50
Appendix 51
Iroao defender 52
No power when ignition is off 52
Pc cannot find memory card 52
Product is not working 52
Recorder is off when engine is started after parking 52
The quality of recorded video is not normal 52
Troubleshootng 52
Unable to playback rear recordings 52
Unable to playback recordings 52
Video is not recorded at all 52
When connected constant power cable 52
Consumer service the place where you purchase www jaewoncnc co kr 53
Contact 53
Jaewoncnc co ltd consumer compensation in a accordance with the provisions of the following quality assurance 53
Model iroad defender 53
Product 53
Product warranty card 53
Purchasing date purchasing place 53
Serial no consumer 53
Thank you for using iroad vehicle recorder 53
24 wontac bldg 3f chunggok dong 54
Certified date august 2013 54
Gwangjin gu seoul 143 891 korea 54
Jaewoncnc 54
Model vehicle recorder iroad defender 54
Product certification 54
Www jaewoncnc co kr 54
