12
Maximum operating distance: 5 metres. The maximum operating distance could be less than 5 metres in case of electromagnetic
interference by other equipment.
Light pushbutton on remote control: light on/off.
– and + pushbutton: increase/decrease speed (to start the motor press either the + or the – pushbutton).
Timer pushbutton: see instructions below.
Timer and ‘filter clogged’ alarm pushbutton
• This function allows the automatic turning off of the hood after running for 15 minutes at the speed previously set (the pushbutton
shows a flickering light).
• After about 30 hours of running the pushbutton indicates the need for washing the metal filters (the pushbutton shows a solid red
light). To disable the alarm press the pushbutton for a few seconds until the red light turns off. Then turn the hood off and on again
to check that the alarm has disappeared.

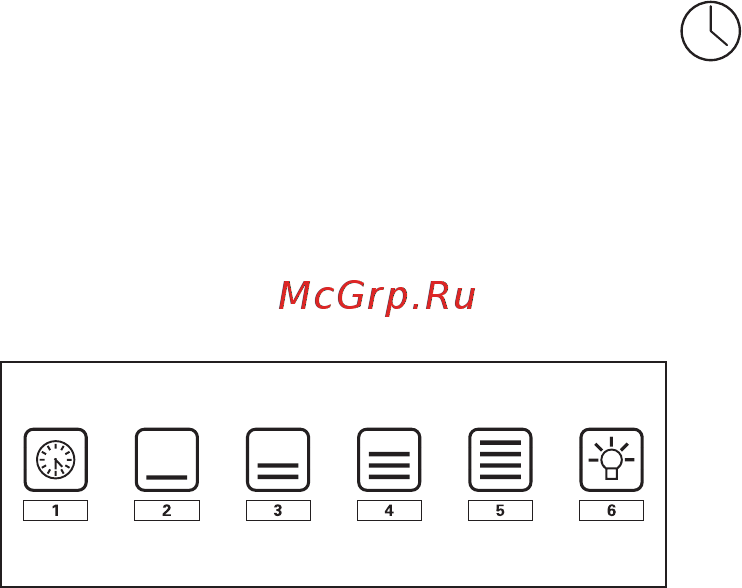

3. ELECTRONIC CONTROL PANEL
1: Timer/Alarm filters
The steady RED light indicates that the fat filter alarm is activated (after 30 hours), to deactivate this alarm and zero the meters,
maintain the Key pressed for 3 seconds.
Flashing RED light indicates that the timer function is activated. This function can only be activated if the motor is activated and run-
ning at any velocity when the Key is pressed (either prolonged or not). This function will cause the automatic switch-off of the hood
after 15 minutes.
With the Timer function activated, the hood can be switched-off by the operator in any case and the function will be deactivated.
The Timer function remains associated to a velocity. A change in the velocity, with the Timer function activated, will deactivate it.
2: 1st Velocity
When the LED is switched-off, non-prolonged pressing of the key will switch-on the hood at the 1
st
velocity and illuminate the respec-
tive LED. The function will switch-on when the Key is released.
When the LED is switched-off and another velocity is activated, pressing the Key will imply selection of the 1
st
velocity, switching-on
of the respective LED and switching-off of the LED associated with the velocity that was previously selected.
When the LED is on, pressing the Key will imply the switching-off the LED and MOTOR.
When the LED is switched-off, prolonged pressing (at least 3 seconds) of the Key will cause activation of the recirculation function.
During the recirculation function (with a duration of 24 hours), the LED will flash. From the activation of this function, the hood will
remain switched-on for one hour at the 1
st
velocity, after which it will switch-off for 3 hours and then reactivate for another hour.
These cycles are repeated until the timeout.
With this function activated, the other functions cannot be selected. To remove this function, keep Key 2 pressed for at least 3 sec-
onds.
3: 2nd Velocity
When the LED is switched-off and another velocity activated, pressing the Key (either prolonged or not) will imply the selection of
the 2
nd
velocity, switching-on of the respective LED and switching-off of the LED associated with the velocity that was previously
selected.
When the LED is switched-off and no velocity activated, pressing the Key will have no effect.
When the LED is switched-on, pressing the Key 3 will have no effect.
To switch the hood off, it will be necessary to firstly select the 1
st
velocity and then repress the same Key.
4: 3rd Velocity
When the LED is switched-off and another velocity activated, pressing the Key (either prolonged or not) implies the selection of
the 3
rd
velocity, the switching-on of the respective LED and switching-off of the LED associated to the velocity that was previously
selected.
When the LED is switched-off and no velocity activated, pressing the Key will have no effect.
When the LED is switched-on, pressing the Key 4 will have no effect.
To switch the hood off, it will be necessary to firstly select the 1
st
velocity and then repress the same Key.
5: 4th Velocity
When the LED is switched-off and another velocity activated, pressing the Key (either prolonged or not) implies the selection of the
4
th
velocity, switching-on of the respective LED and switching-off of the LED associated to the velocity that was previously selected.
When the LED is switched-off and no velocity activated, pressing the Key will have no effect.
When the LED is switched-on, pressing the key 5 will have no effect.
The forth velocity must remain on for a maximum of 14 minutes, after which, one must return to the third.
To switch the hood off, it will be necessary to firstly select the 1
st
velocity and then repress the same key.
6: Light - Remote Binding
Light: Briefly pressing key T6 will turn the light on and off. The T6 key will light up if the light is on.
Remote Binding (optional): With motor and light turned off, applying prolonged pressure on the T6 key will activate remote binding
mode. The T6 Key will flash for a maximum of 10 seconds. During flashing, at least one radio control key must be pressed. The func-
tion will deactivate upon completion of the 10 seconds, or earlier if a compatible remote control is detected.
Key pressure management:
Prolonged pressure = finger pressed on key for at least 3 seconds, the function activates during pressure.
Non-prolonged pressure = finger pressed on key for less than 3 seconds, the function activates upon its release.
Radio control (optional): Place the device far from sources of electromagnetic waves which could interfere with the range hood’s
electronic functions
Maximum operating distance 4 metres. This distance may vary in defect based on electromagnetic interference of other devices.
