14
electronic functions
Maximum operating distance 4 metres. This distance may vary in defect based on electromagnetic interference of other devices.

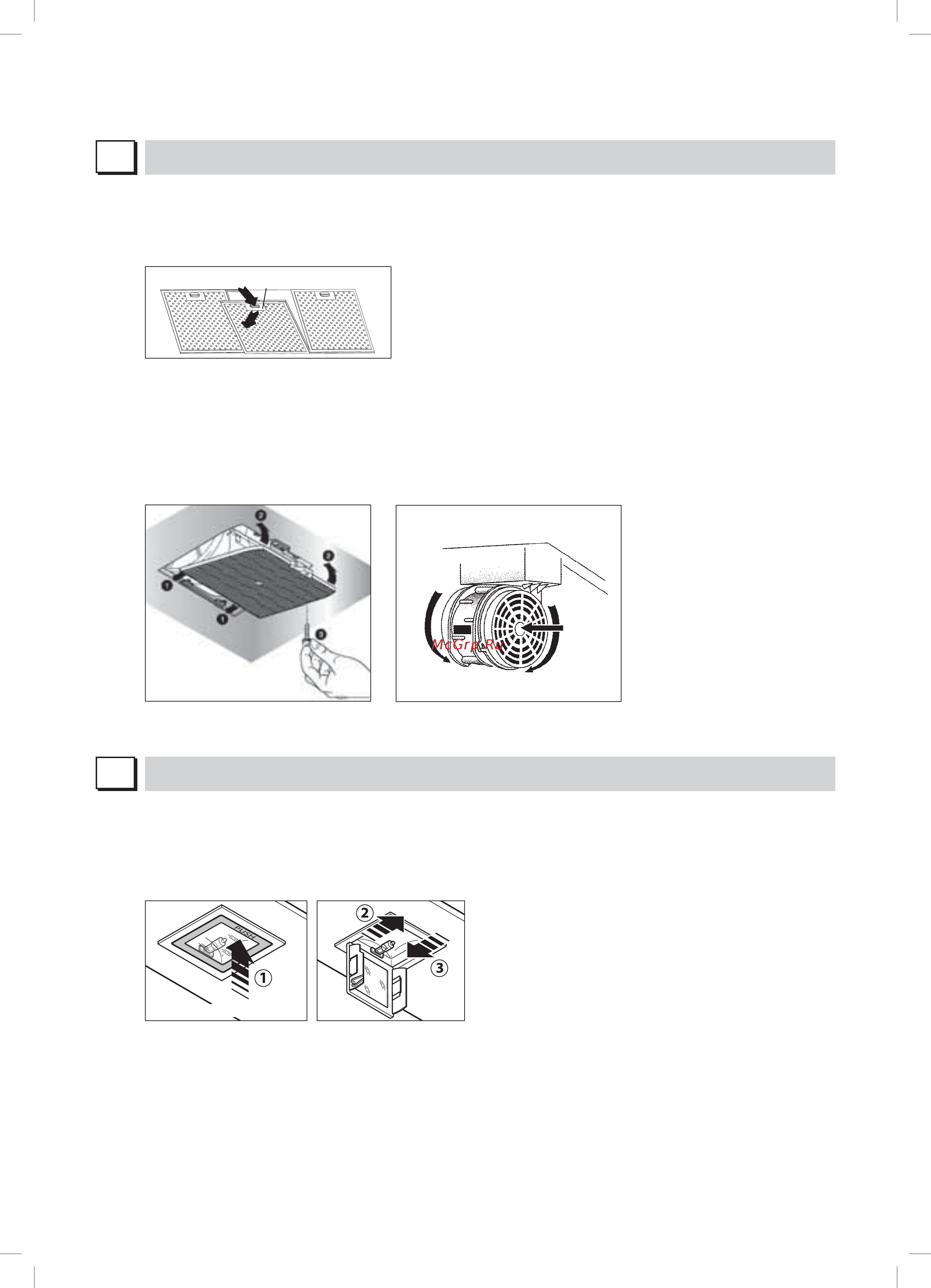

FILTERS REMOVING AND REPLACING’S INSTRUCTIONS
H
1. METAL FILTERS
To remove the metal grease-trapping filter, simply pull the handle A until releasing it from the front guide; then tilt it slightly down-
wards, and slide it out of the rear guide. To reposition the filter, repeat the operation in the reverse order.
Hoods with perimeter suction:
- Open the panel (see fig. 1). Use handle A to remove the metal grease filter.
A
2. CHARCOAL FILTERS
To replace the charcoal filters, proceed as follows: remove the metal filters as described above. The two filters located at the ends
of the motor can now be easily accessed.
To install the new fi lters see picture.
In case of hood with the motor box the fi lter is located on the botton part of the motor box.
To install the new fi lters see picture.
To order new charcoal fi lters contact the distributor/retailer.
VALID ONLY FOR ITALY: download the appropriate order form from: www.falmec.com (access the assistance drop-down menu).
3. REMOVABLE PANEL
Follow the instructions on fig. H3 to remove the panel.
LIGHTING ASSEMBLY AND REPLACEMENT
I
1. SPOTLIGHT
How to replace a square halogen light:
a) Check that the equipment is disconnected from the power supply.
b) Open the panel completely till 90° (see figure) pressing the PUSH button
c) Replace the lamp with a similar one (halogen, max 20 W, 12 Volt, G4 connection).
d) Close the panel. If the panel does not close correctly repeat the operation at point b.
Square halogen light
2. LED SPOTLIGHT
In this case the hood is equipped with high efficiency, low power LED spotlights with extremely high durability under normal use
conditions.
3. FLUORESCENT TUBE
Replacing the fluorescent tube:
a) Disconnect the device from the mains;
b) Unscrew the fixing screws and remove the bottom panel;
c) Remove the fluorescent tube, by rotating through 90°, and replace it with one of similar features (8W-13W-21W-28W according with
the model);
d) Reconnect the device to the mains.
