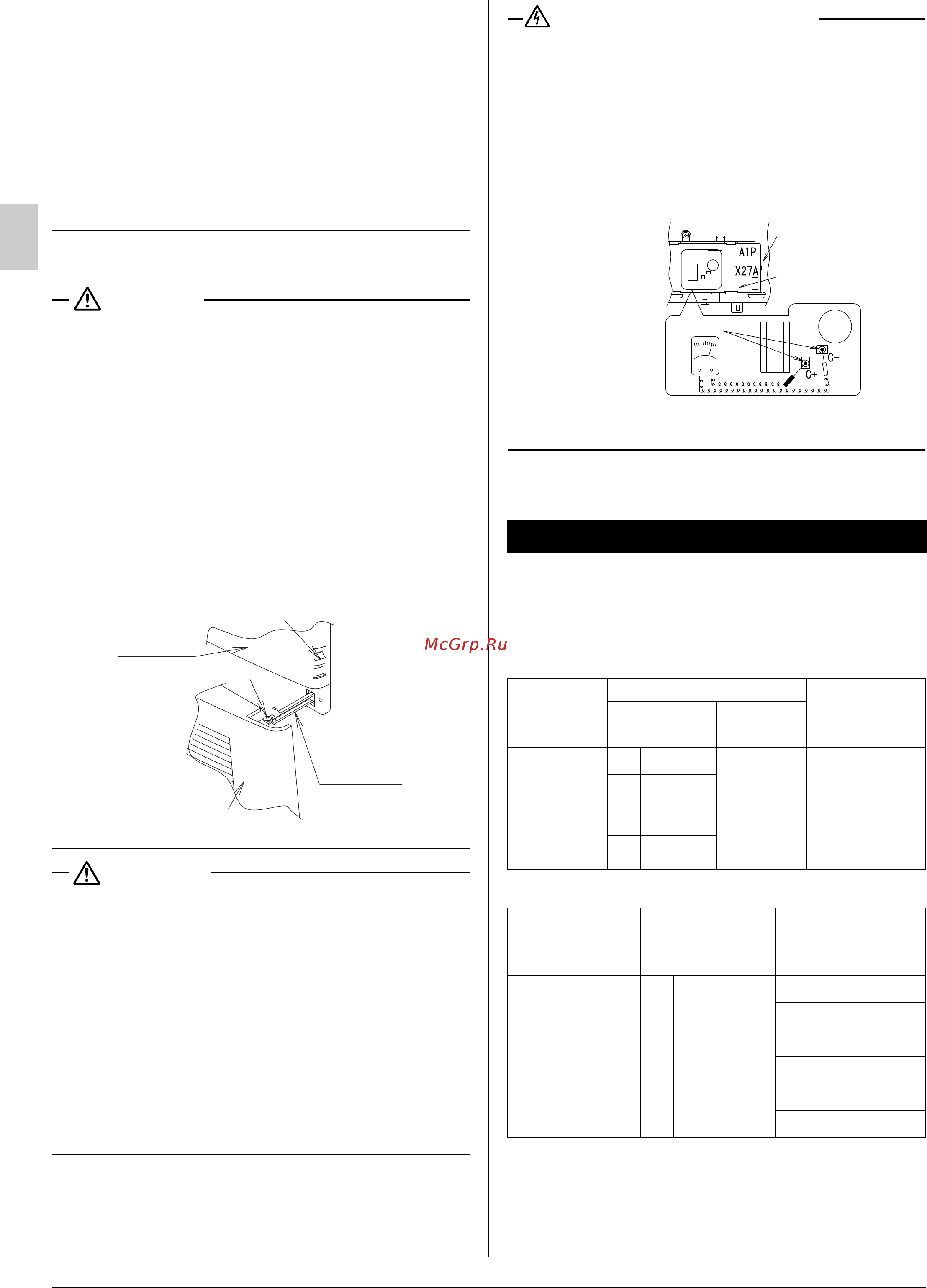

Daikin FVQ125C / RZQSG125L8Y1 [8/18] Due to high voltage do not open control box lid for ten minutes after the safety breaker is switched off
![Daikin FVQ71C / RZQG71L9V1 [8/18] Due to high voltage do not open control box lid for ten minutes after the safety breaker is switched off](/views2/1327752/page8/bg8.png)
4 English
Never touch the internal parts of the remote
controller.
Do not remove the front panel. Touching certain
internal parts will cause electric shocks and
damage to the unit. Please consult your dealer
about checking and adjustment of internal parts.
Do not leave the remote controller wherever
there is a risk of wetting.
If water gets into the remote controller there is a
risk of electrical leakage and damage to elec-
tronic components.
• NOTE TO SURVICE PERSONNEL
CAUTION
Read the following for the safety.
Do not operate the unit while the suction grille is
open.
• Fan may rotate and cause accident.
Make sure to screw the suction grille stopper.
• If the screw is not completely tightened, the suc-
tion grille may come off and you may cut your fin-
gers with the fan.
• After the installation or service maintenance,
make sure to put the grille stopper to where it was
with screws.
(R & L, total 2:see the below.)
WARNING
May cause electric shock, ignition, fire
• Before starting the inspection of the electrical
parts (control box, fan motor, drain pump, etc.),
be sure cut off the all air-conditioner power (adap-
tor for wiring power is included) or you may get an
electric shock.
• When cleaning the heat exchanger, be sure to
remove the switch box, fan motor and drain
pump.
Water or detergent may deteriorate the insulation
of electric components and result in burn-out of
these components.
Grille stopper
Grille fixture
Suction grille
Front panel
Tapping screw
CAUTION! ELECTRIC SHOCK
•
Due to high voltage, do not open control box lid for
ten minutes after the safety breaker is switched
off.
• After the box is opened, measure the voltages of
the points shown below printed circuit board with
a tester and confirm that the voltages are not
higher than DC50V.
Do not touch live parts when carrying out this work.
• After power failure, operation will restart automat-
ically.
If the temperature or the humidity is beyond the fol-
lowing conditions, safety devices may work and the
air conditioner may not operate, or sometimes,
water may drop from the indoor unit.
COOLING [°C]
HEATING [°C]
D
B: Dry bulb temperature
WB: Wet bulb temperature
The setting temperature range of the remote con-
troller is 16°C to 32°C.
3. OPERATION RANGE
OUTDOOR
UNIT
INDOOR
OUTDOOR
TEMPERA-
TURE
TEMPERA-
TURE
HUMI-
DITY
RZQG
DB 18 to 37
80% or
below
DB
–15 to 50
WB 12 to 28
RZQSG71·
100·125·
140
DB 21 to 37
80% or
below
DB
–10 to 43
WB 14 to 28
OUTDOOR
UNIT
INDOOR
TEMPERA-
TURE
OUTDOOR
TEMPERATURE
RZQG
DB
10 to 27
DB
–19.5 to 21
WB
–20 to 15.5
RZQSG71
DB
10 to 30
DB
– 14 to 21
WB
–15 to 15.5
RZQSG100·
125·140
DB 10 to 28
DB
– 14 to 21
WB
–15 to 15.5
Residual voltage
measurement points
+
C
-
+
0
-
C
Printed circuit board
Control box
UntitledBook1.book Page 4 Wednesday, December 14, 2011 4:14 PM
