3.3 Water connection
The system must be a stopcock, a drain, a
non-return valve and must end with an easily
accessible aeration tap with a 3/4" connector.
The minimum water pressure must not fall
below 1 bar (with 5 l./min. flow pressure).
3.4 Water drainage
The overflow connection (Ø15 mm) of the WKI
must be connected to the water drainage.
3.5 Mounting the WKI on the wall
Mount the appliance on the wall using plugs suitable
for the purpose. In case of cellular concrete,
plasterboard or similar walls of other materials screw
right through them or apply extra wall reinforcement.
1. The local voltage should correspond with the
specifications indicated on the type plate.
2. Determine the complete setup of the serving
trolley(s) with the storage water boiler (WKI).
3. Determine where the storage water boiler
should be mounted with the help of fig. 2 + 6.
4. Mount the storage water boiler on the wall
and connect electricity, water supply and
water drain.
5. Place the combination of the serving trolley,
container/combi filter under the tap with
swivel arm.
WKI n06/2008 13

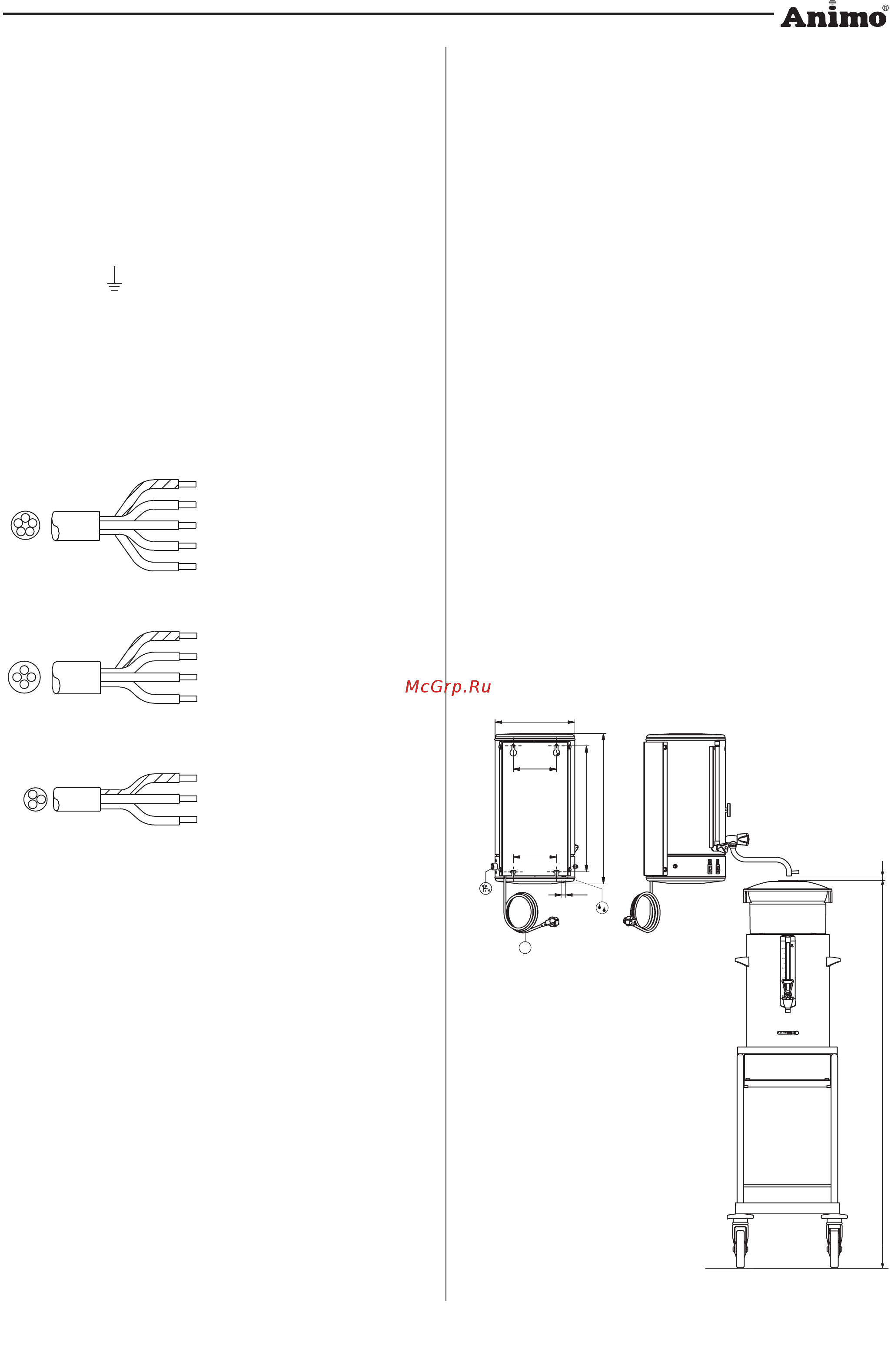

• (fig. 3) In case of 3N~ 380-415V (5-core cable).
• (fig. 4) In case of 3~ 230V (4-core cable).
• (fig. 5) In case of 1N~ 220-230V (3-core cable).
The following points should be observed when wiring
a new plug:
1. The green/yellow-coloured wire (“EARTH”)
should be connected to the terminal which is
either marked with the letter “E”, the “earth”
sym bol ( ) or coloured green or green/yellow.
2. The blue-coloured wire (“NEUTRAL”) should be
connected to the terminal which is either marked
with the letter "N" or coloured black.
3. The brown and black-coloured wires (“LIVE”)
should be connected to the terminals which is
either marked with the letter "L1, L2 and L3" or
coloured red.
Green/yellow - Earth (E)
Blue - Neutral (N)
Brown - Live (L1)
Black - Live (L2)
Grey - Live (L3)
fig. 3
Green/yellow - Earth (E)
Brown - Live (L1)
Black - Live (L2)
Grey - Live (L3)
fig. 4
Green/yellow - Earth (E)
Blue - Neutral (N)
Brown - Live (L1)
fig. 5
X
5
H1
D1
B2
H2
B3
~
Volt
Ø15
fig. 6
