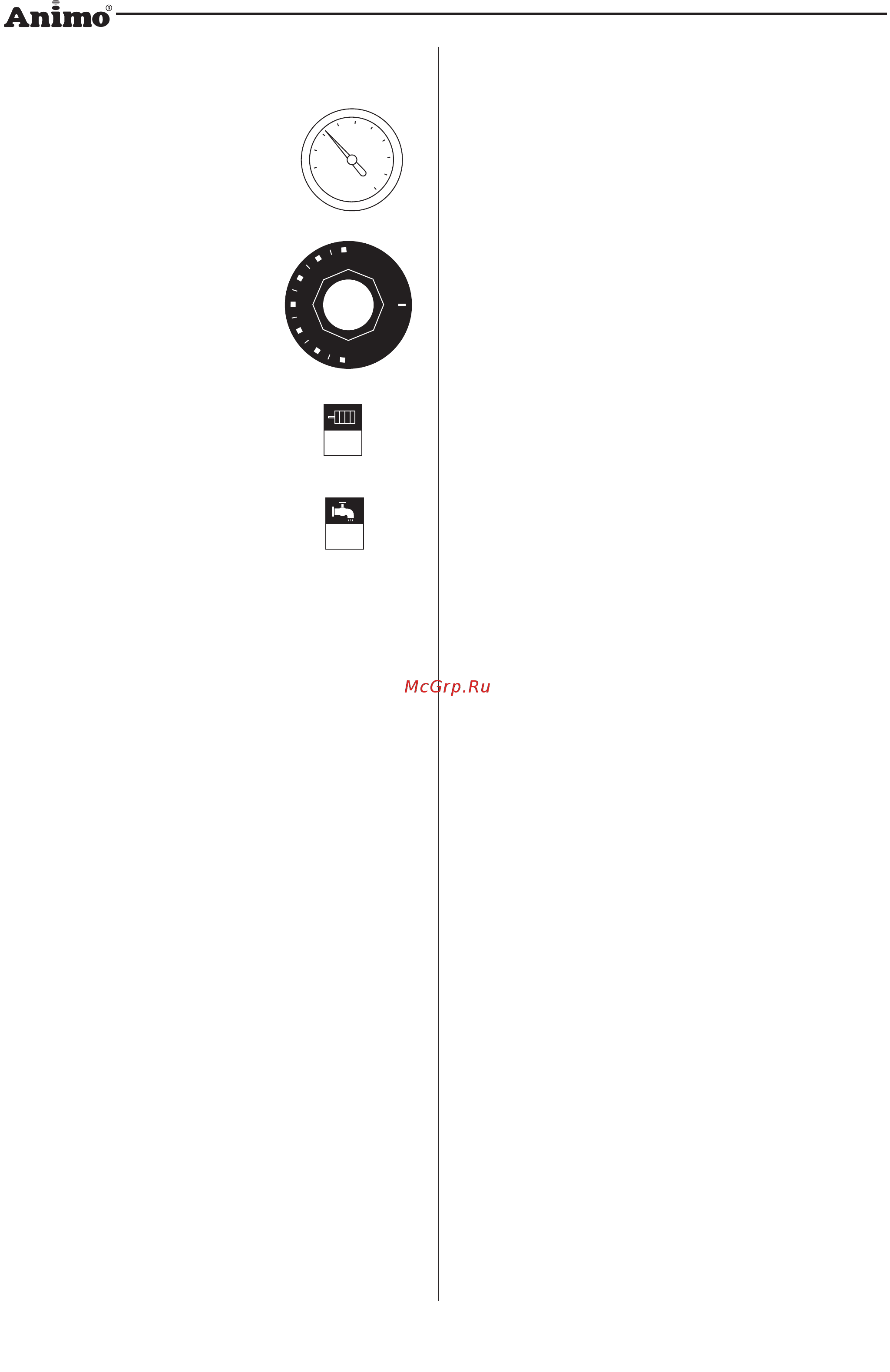

4. CONTROL PANEL (FIG. 1)
A - Thermometer
C - Adjustable thermostat
G - On / off switch
H - Filling switch
K - Gauge glass
5. PREPARATIONS BEFORE USE
When placing and connecting the appliance,
the following instructions should be followed.
1. Open the manual stopcock (part of the water
connection) and check if the connections do not
leak.
2. Plug in the water boiler and press the orange
filling switch (fig. 1H). The water boiler will now
start to fill.
3. As soon as the water becomes visible in the
gauge glass, the heating system can be
switched on; press the green on/off switch (fig.
1G). The water boiler will now start to heat up.
4. Allow the water boiler to reach the required level
in the gauge glass (fig. 1K) and then stop the
water supply by pressing the orange filling switch
again. If the water supply is not turned off on
time. The built-in floating mechanism will
automatically shut off the water supply when the
maximum capacity has been achieved.
100
90
10
20
50
80
70
60
40
30
°C
3
0
40
50
60
70
80
90
verwarming
Beheizung
heating
toevoer
Zulauf
inlet
5. The thermostat can be used to heat the water to
any temperature between 30°C and 97°C.
The ideal water temperature when making coffee
is approx. 97°C.
6. The water boiler is now ready for use.
• When drawing off hot water, the orange filling
switch must be turned off, so that cold water can
no longer flow into the boiler.
• The quantity of water to be added to and/or
drawn off can be checked using the volume
scale next to the gauge glass.
• In the event of breakage or repair work, the
gauge glass can be shut off by closing the gauge
glass tap (fig. 1J).
• The water temperature is easy to read from
the thermometer.
• When drawing off water using the swivel-arm
tap, open the tap as far as possible, allowing it to
vent properly. Afterwards, the flow can be
reduced to a level that can be processed by the
water distributor on the filter.
• After use, both switches must be turned off,
shutting off the water supply and electricity. It is
possible to keep water at a temperature of
at least 60°C overnight, but it is important to
make sure that the orange filling switch has been
turned off.
