2. Parts Names
■

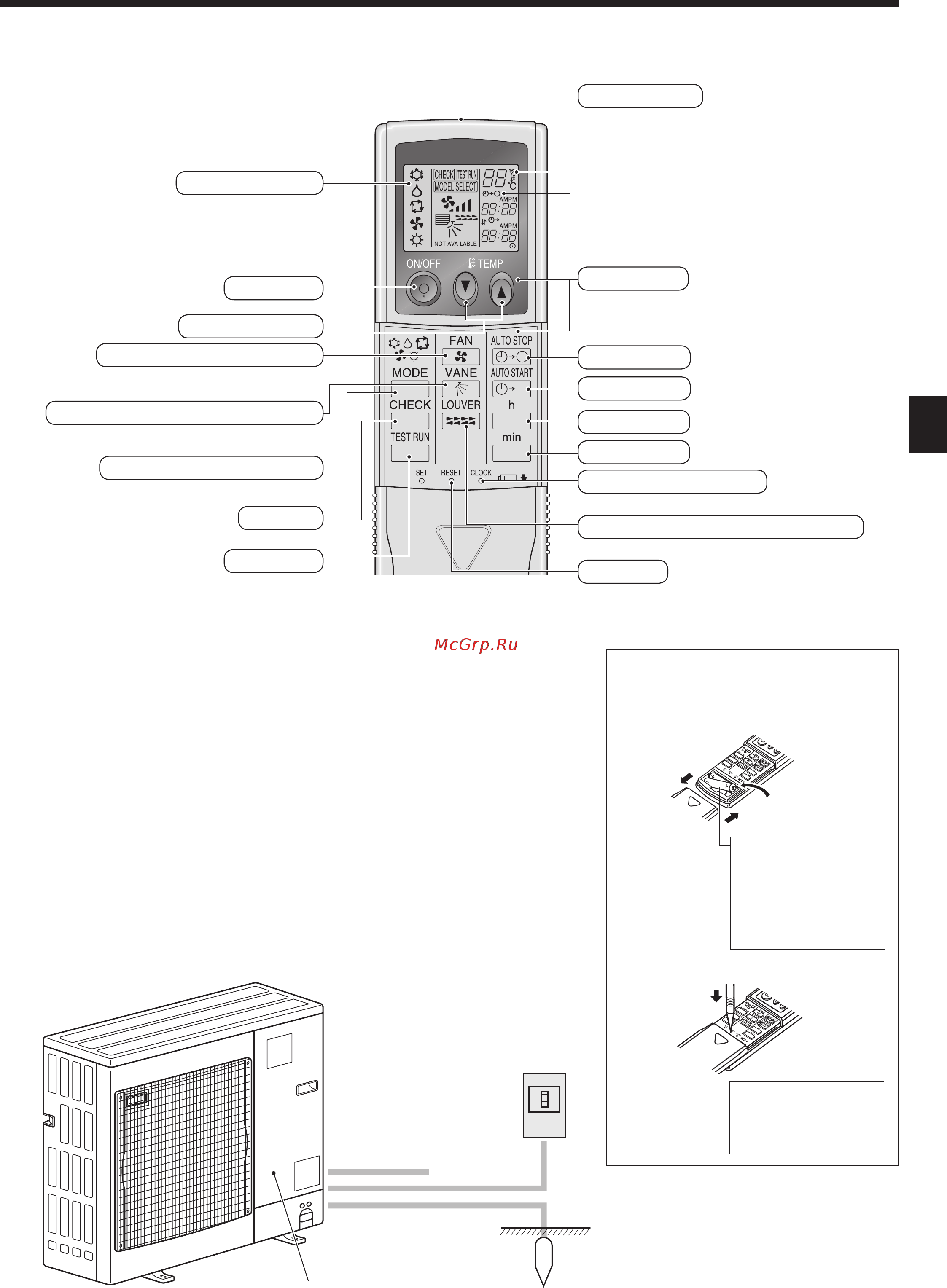

Wireless Remote-Controller
Note (Only for wireless remote controller):
■
When using the wireless remote controller, point it towards the receiver on the indoor unit.
■
If the remote controller is operated within approximately 2 minutes after power is supplied to the
indoor unit, the indoor unit may beep twice as the unit is performing the initial automatic check.
■
The indoor unit beeps to confi rm that the signal transmitted from the remote controller has been
received. Signals can be received up to approximately 7 meters in a direct line from the indoor
unit in an area 45° to the left and right of the unit. However, illumination such as fl uorescent
lights and strong light can affect the ability of the indoor unit to receive signals.
■
If the operation lamp near the receiver on the indoor unit is blinking, the unit needs to be in-
spected. Consult your dealer for service.
■
Handle the remote controller carefully! Do not drop the remote controller or subject it to strong
shocks. In addition, do not get the remote controller wet or leave it in a location with high hu-
midity.
■
To avoid misplacing the remote controller, install the holder included with the remote controller
on a wall and be sure to always place the remote controller in the holder after use.
Battery installation/replacement
1. Remove the top cover, insert 2 AAA batter-
ies, and then install the top cover.
2. Press the Reset button.
■
Outdoor unit
Two AAA batteries
Insert the negative (–)
end of each battery fi rst.
Install the batteries in
the correct directions
(+, –)!
Press the Reset button
with an object that has
a narrow end.
Top cover
* For explanation purposes, all of the items
that appear in the display are shown.
* All items are displayed when the Reset but-
ton is pressed.
Transmission indicator
Timer indicator
Remote controller display
ON/OFF button
Set Temperature buttons
Fan Speed button (Changes fan speed)
Airfl ow button (Changes up/down airfl ow direction)
Mode button (Changes operation mode)
Check button
Test Run button
Transmission area
Operation areas
Timer Off button
Timer On button
Hour button
Minute button
Set Time button (Sets the time)
Louver button (Changes left/right airfl ow direction)
Reset button
Power
Earth
Service Panel
Indoor-Outdoor
Connection wire
Ref. Pipes
