Lainox REV051M [16/32] Using a gauge

90027260rev00

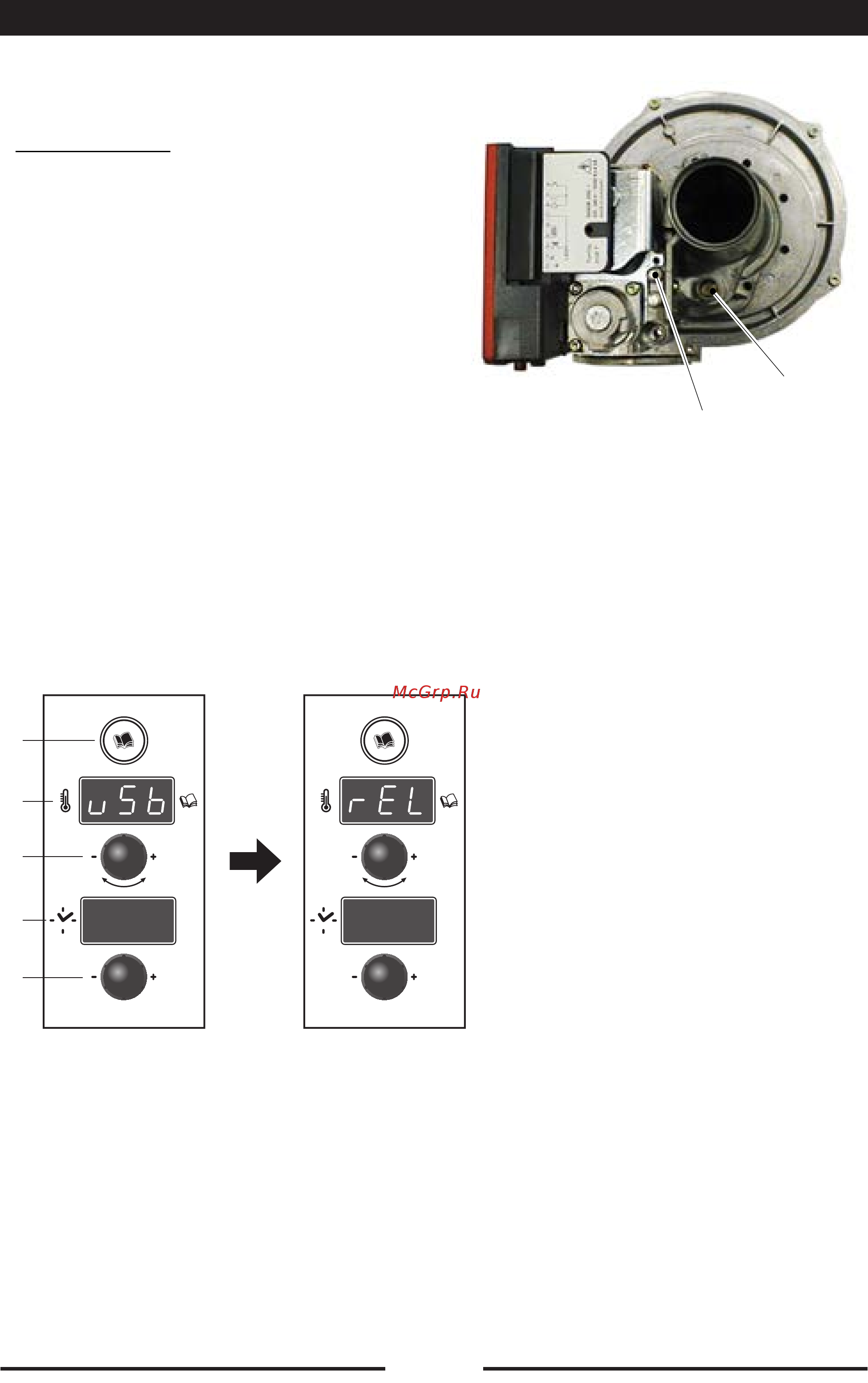

CHECKING NOMINAL HEAT CAPACITY

S VERSION

- Chamber Burner

Check the depth of the screw “A” in

accordance with table 5

of the “Tecnical gas

data” booklet,

using a gauge.

Checkthattheburnerfanspeed,corresponds

to the data given in table 5ofthe“Technical

gas data” booklet.

To enter the management screen of the burner to

check:

With the appliance live and display off, press

button 1, the display 2 shows [USb], turn knob 3

until [rEL]is displayed,presstheknobtoconfirm

the selection

Turn knob 3 to set the password for parameter

modification and confirm by pressing knob 3.

11 • OPERATING AT THE RATED HEAT OUTPUT
