–16–
2 Each time button is pushed, indoor
unit numbers in the control group change
cyclically. Select the indoor unit to change
settings for.
The fan of the selected unit runs and the louvers
start swinging. The indoor unit for change settings
can be confirmed.
3 Specify CODE No. [ ] with “TEMP.” /
buttons.
4 Select SET DATA [ ] with “TIME” /
buttons.
5 Push button. When the display changes
from flashing to lit, the setup is completed.
• To change settings of another indoor unit,
repeat from Procedure
2.
• To change other settings of the selected indoor
unit, repeat from Procedure
3.
• Use button to clear the settings. To make
settings after button was pushed, repeat
from Procedure
2.
6 When settings have been completed, push
button to determine the settings.
When button is pushed, flashes
and then the display content disappears and
the air conditioner enters the normal stop
mode.
(While is flashing, no operation of the
remote controller is accepted.)
External static pressure
settings
<Change on wired remote controller>
Set up a tap change based upon the external static
pressure of the duct to be connected.
To set up a tap change, follow to the basic operation
procedure (
1 → 2 → 3 → 4 → 5 → 6).
• Specify [5d] to the CODE No. in procedure
3.
• For the SET DATA of procedure
4, select a SET
DATA of the external static pressure to be set up
from the following table.
The list above is when SW501-1 and SW501-2 is OFF.
If the setting is wrong, "P12" may appear indicating a
fan motor error.
SET DATA External static pressure
0000 40 Pa
AP024 to 030
(Factory default)
0001 30 Pa
AP007 to 018
(Factory default)
0002 65 Pa —
0003 50 Pa
AP036 to 058
(Factory default)
0004 80 Pa —
0005 100 Pa —
0006 120 Pa —

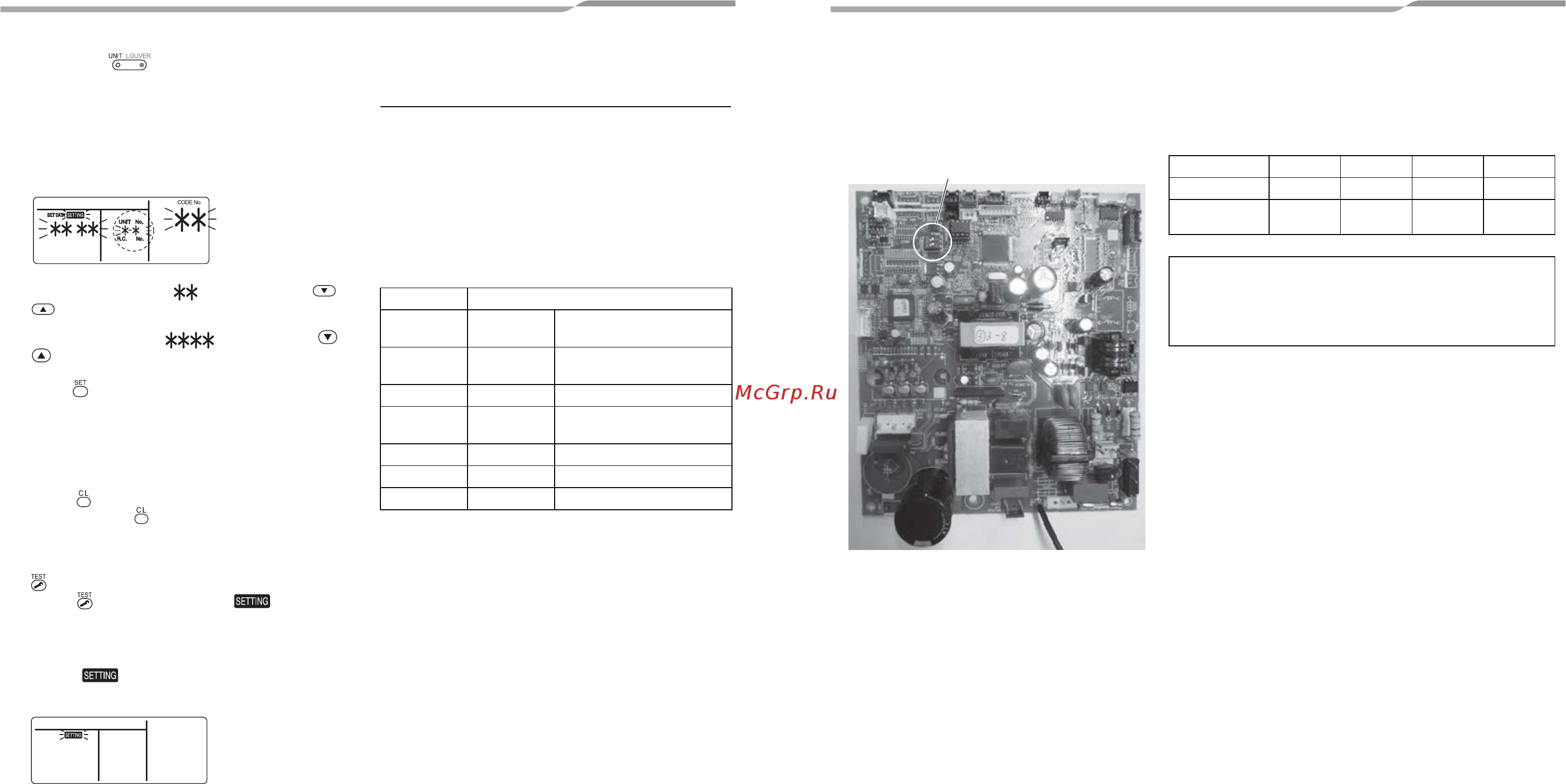

<Setting up on the circuit board of the indoor unit>
To set up the external static pressure, use the DIP switch on the circuit board of the wireless reception part.
For details, refer to the instruction manual of the wireless remote controller kit. Alternatively, use the switch on the
indoor micro computer circuit board as shown in the following figure and table.
SW501
SW501-1 OFF ON OFF ON
SW501-2 OFF OFF ON ON
SET DATA
Factory
default
0001 0003 0006
To reset to the factory default
Switch off SW501-1 and SW501-2, connect a separately-sold
wired remote controller, and then perform the procedure for
installing a separately-sold filter on this page to set the [5d] data
to "0000".
