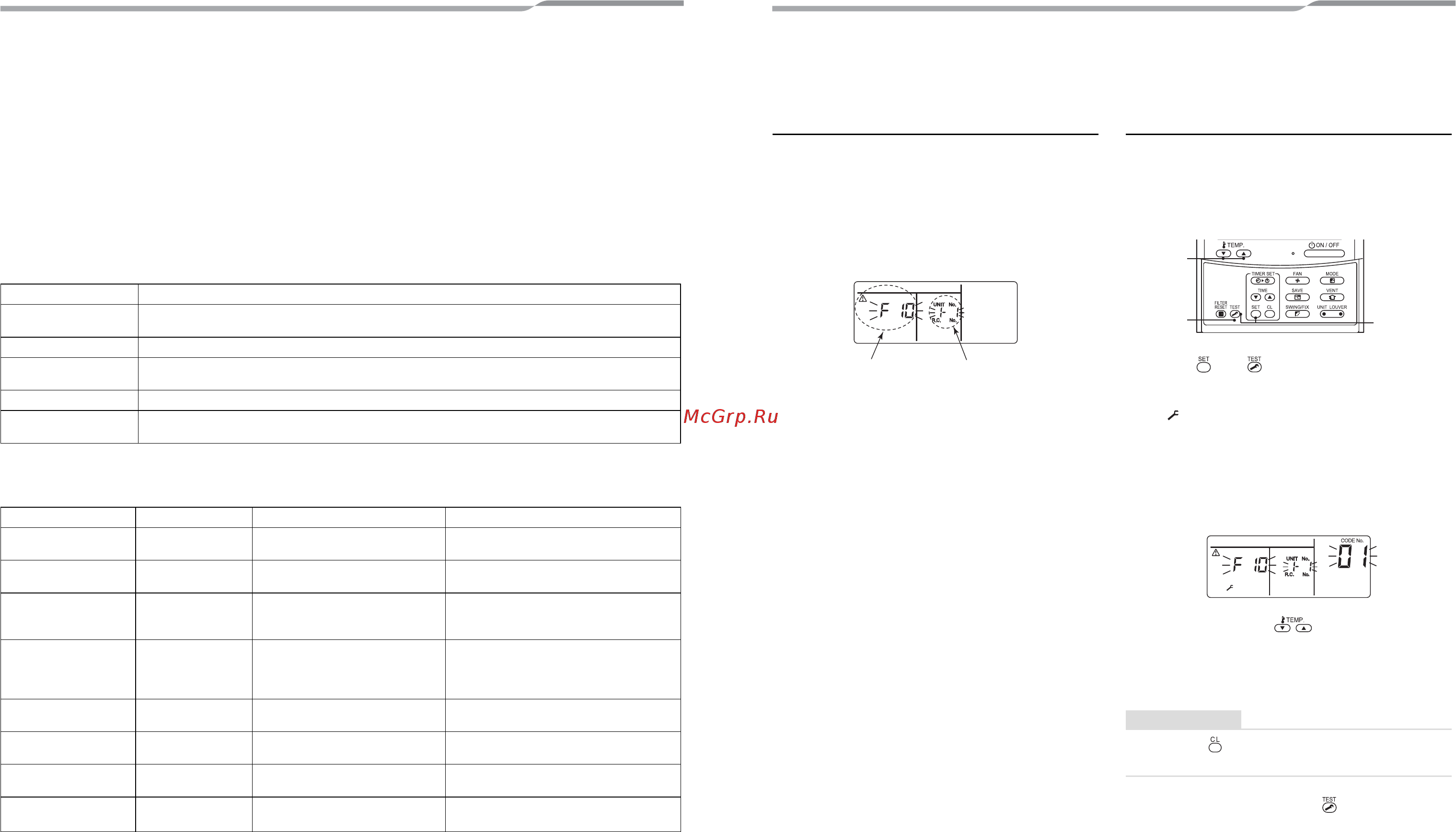

![Toshiba MMD-AP0486BH-E [20/28] Confirmation and check](/views2/1332823/page20/bg14.png)
–19–
▼ Periodic Maintenance
For environmental conservation, it is strongly recommended that the indoor and outdoor units of the air conditioner
in use be cleaned and maintained regularly to ensure efficient operation of the air conditioner.
When the air conditioner is operated for a long time, periodic maintenance (once a year) is recommended.
Furthermore, regularly check the outdoor unit for rust and scratches, and remove them or apply rustproof
treatment, if necessary.
As a general rule, when an indoor unit is operated for 8 hours or more daily, clean the indoor unit and outdoor unit
at least once every 3 months. Ask a professional for this cleaning / maintenance work.
Such maintenance can extend the life of the product though it involves the owner’s expense.
Failure to clean the indoor and outdoor units regularly will result in poor performance, freezing, water leakage, and
even compressor failure.
▼ Inspection before maintenance (Once a year)
Following inspection must be carried out by a qualified installer or qualified service person.
▼ Maintenance List
Parts Inspection method
Heat exchanger
Access from inspection opening and remove the access panel. Examine the heat exchanger if there
is any clogging or damages.
Fan motor Access from inspection opening and check if any abnormal noise can be heard.
Fan
Access from inspection opening and remove the access panel. Examine the fan if there are any
waggles, damages or adhesive dust.
Filter Access from check port and check if there are any stains or breaks on the filter.
Drain pan
Access from inspection opening and remove the access panel. Check if there is any clogging or drain
water is polluted.
Part Unit Check (visual / auditory) Maintenance
Heat exchanger Indoor / outdoor Dust / dirt clogging, scratches
Wash the heat exchanger when it is
clogged.
Fan motor Indoor / outdoor Sound
Take appropriate measures when
abnormal sound is generated.
Filter Indoor Dust / dirt, breakage
• Wash the filter with water when it is
contaminated.
• Replace it when it is damaged.
Fan Indoor
• Vibration, balance
• Dust / dirt, appearance
• Replace the fan when vibration or
balance is terrible.
• Brush or wash the fan when it is
contaminated.
Air intake / discharge
grilles
Indoor / outdoor Dust / dirt, scratches
Fix or replace them when they are
deformed or damaged.
Drain pan Indoor
Dust / dirt clogging, drain
contamination
Clean the drain pan and check the
downward slope for smooth drainage.
Ornamental panel,
louvres
Indoor Dust / dirt, scratches
Wash them when they are contaminated
or apply repair coating.
Exterior Outdoor
• Rust, peeling of insulator
• Peeling / lift of coat
Apply repair coating.
12Troubleshooting
Confirmation and check
When an error occurred in the air conditioner, an error
code and indoor UNIT No. appear on the display part
of the remote controller.
The error code is only displayed during the operation.
If the display disappears, operate the air conditioner
according to the following “Confirmation of error log” for
confirmation.
Confirmation of error log
When an error occurred on the air conditioner, the error
log can be confirmed with the following procedure.
(The error log is stored in memory up to 4 errors.)
The log can be confirmed from both operating status
and stop status.
1 When and buttons are pushed
simultaneously for 4 seconds or more, the
following display appears.
If is displayed, the mode enters in the error log
mode.
•[01: Order of error log] is displayed in CODE
No..
• [Error code] is displayed in CHECK.
• [Indoor unit address in which an error occurred]
is displayed in Unit No..
2 Every pushing of button used to set
temperature, the error log stored in memory
is displayed in order.
The numbers in CODE No. indicate CODE No.
[01] (latest) → [04] (oldest).
REQUIREMENT
Do not push button because all the error log of the
indoor unit will be deleted.
3 After confirmation, push button to return
to the usual display.
Error code Indoor UNIT No. in
which an error occurred
3
2
1
