–6–

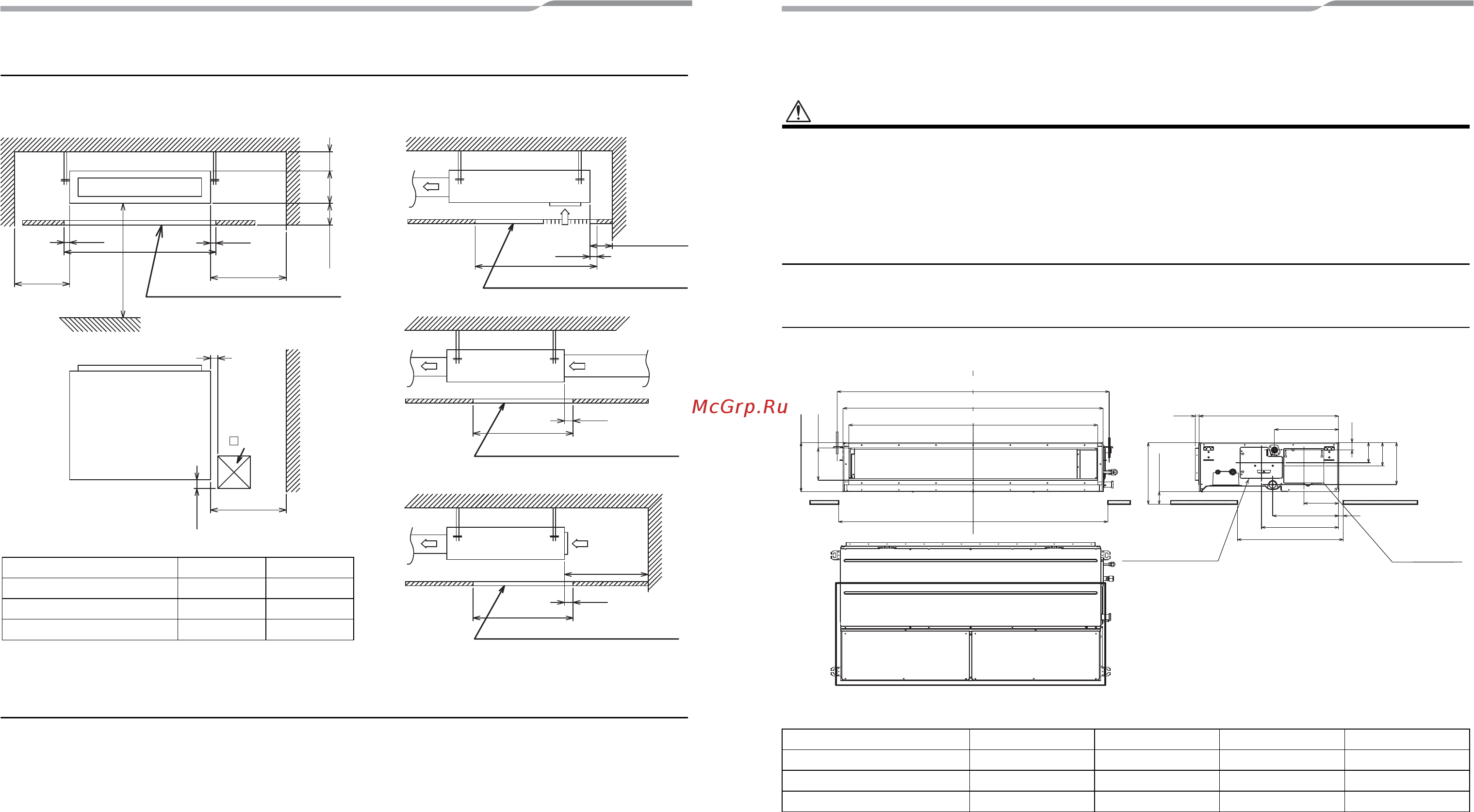

Installation space (Unit: mm)
Reserve sufficient space required for installation or service work.
Filter cleaning sign term setting
The lighting term setup of the filter sign (Notification of filter cleaning) of the remote controller can be changed
according to the condition of installation.
For setup method, refer to “Filter sign setting” in the Applicable controls of this Manual.
100 or
more
Air discharge
Ceiling
25
A
25
2500 or
more
B
or more
70 or
more
5 or
more
275
Inspection opening (Ceiling opening)
Floor surface
Air discharge
100 or more
450
Check port
120
Service space
(B for maintenance of air filter)
B
Ceiling
25
50 or more
Inspection opening (Ceiling opening)
570
Air intake
Air intake
570
25
Ceiling
Inspection opening (Ceiling opening)
Air intake
570
25
Ceiling
Inspection opening (Ceiling opening)
300 or more
AB
AP0076~AP0186 750 700
AP0246~AP0306 1050 500
AP0366~AP0566 1450 700
4 Installation
CAUTION
Strictly comply with the following rules to prevent damage of the indoor units and human injury.
• Do not put a heavy article on the indoor unit or let a person get on it. (Even units are packaged)
• Carry in the indoor unit as it is packaged if possible. If carrying in the indoor unit unpacked by necessity, use buffering
cloth or other material to not damage the unit.
• To move the indoor unit, hold the hooking brackets (4 positions) only.
Do not apply force to the other parts (such as refrigerant pipe, drain pan, foamed parts, or resin parts).
• Carry the package by two or more persons, and do not bundle it with plastic band at positions other than specified.
• To install vibration isolation material to hanging bolts, confirm that it does not increase the unit vibration.
External dimensions (Unit: mm)
▼ Dimension
ABCD
AP0076~AP0186 700 765 640 750
AP0246~AP0306 1000 1065 940 1050
AP0366~AP0566 1400 1465 1340 1450
180
275
750
355
345
236
22
25
C
L
570
43
187.5
131
415
113.5
Main unit dimension A
Hanging bolt pitch B
External dimensions of flange C
Access panel
Electrical
control box
D
345 or more
70 or more
Drain pan / Drain
pump check cover
