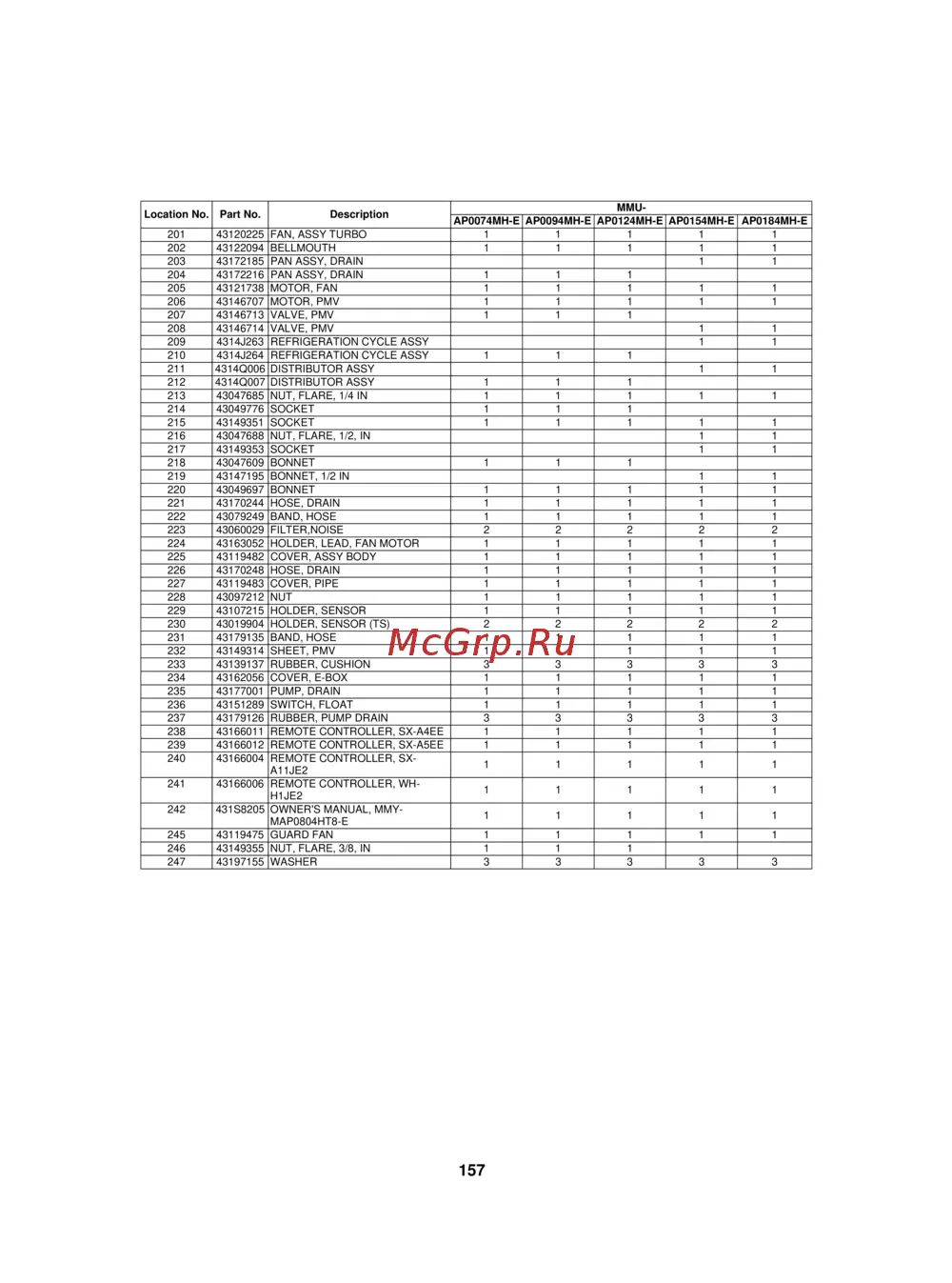

157
Location No. Part No. Description
MMU-
AP0074MH-E AP0094MH-E AP0124MH-E AP0154MH-E AP0184MH-E
201 43120225 FAN, ASSY TURBO 1 1 1 1 1
202 43122094 BELLMOUTH 1 1 1 1 1
203 43172185 PAN ASSY, DRAIN 1 1
204 43172216 PAN ASSY, DRAIN 1 1 1
205 43121738 MOTOR, FAN 1 1 1 1 1
206 43146707 MOTOR, PMV 1 1 1 1 1
207 43146713 VALVE, PMV 1 1 1
208 43146714 VALVE, PMV 11
209 4314J263 REFRIGERATION CYCLE ASSY 1 1
210 4314J264 REFRIGERATION CYCLE ASSY 1 1 1
211 4314Q006 DISTRIBUTOR ASSY 1 1
212 4314Q007 DISTRIBUTOR ASSY 1 1 1
213 43047685 NUT, FLARE, 1/4 IN 1 1 1 1 1
214 43049776 SOCKET 1 1 1
215 43149351 SOCKET 1 1 1 1 1
216 43047688 NUT, FLARE, 1/2, IN 1 1
217 43149353 SOCKET 11
218 43047609 BONNET 1 1 1
219 43147195 BONNET, 1/2 IN 11
220 43049697 BONNET 1 1 1 1 1
221 43170244 HOSE, DRAIN 1 1 1 1 1
222 43079249 BAND, HOSE 1 1 1 1 1
223 43060029 FILTER,NOISE 2 2 2 2 2
224 43163052 HOLDER, LEAD, FAN MOTOR 1 1 1 1 1
225 43119482 COVER, ASSY BODY 1 1 1 1 1
226 43170248 HOSE, DRAIN 1 1 1 1 1
227 43119483 COVER, PIPE 1 1 1 1 1
228 43097212 NUT 1 1 1 1 1
229 43107215 HOLDER, SENSOR 1 1 1 1 1
230 43019904 HOLDER, SENSOR (TS) 2 2 2 2 2
231 43179135 BAND, HOSE 1 1 1 1 1
232 43149314 SHEET, PMV 1 1 1 1 1
233 43139137 RUBBER, CUSHION 3 3 3 3 3
234 43162056 COVER, E-BOX 1 1 1 1 1
235 43177001 PUMP, DRAIN 1 1 1 1 1
236 43151289 SWITCH, FLOAT 1 1 1 1 1
237 43179126 RUBBER, PUMP DRAIN 3 3 3 3 3
238 43166011 REMOTE CONTROLLER, SX-A4EE 1 1 1 1 1
239 43166012 REMOTE CONTROLLER, SX-A5EE 1 1 1 1 1
240 43166004 REMOTE CONTROLLER, SX-
A11JE2
11111
241 43166006 REMOTE CONTROLLER, WH-
H1JE2
11111
242 431S8205 OWNER'S MANUAL, MMY-
MAP0804HT8-E
11111
245 43119475 GUARD FAN 1 1 1 1 1
246 43149355 NUT, FLARE, 3/8, IN 1 1 1
247 43197155 WASHER 3 3 3 3 3
