40

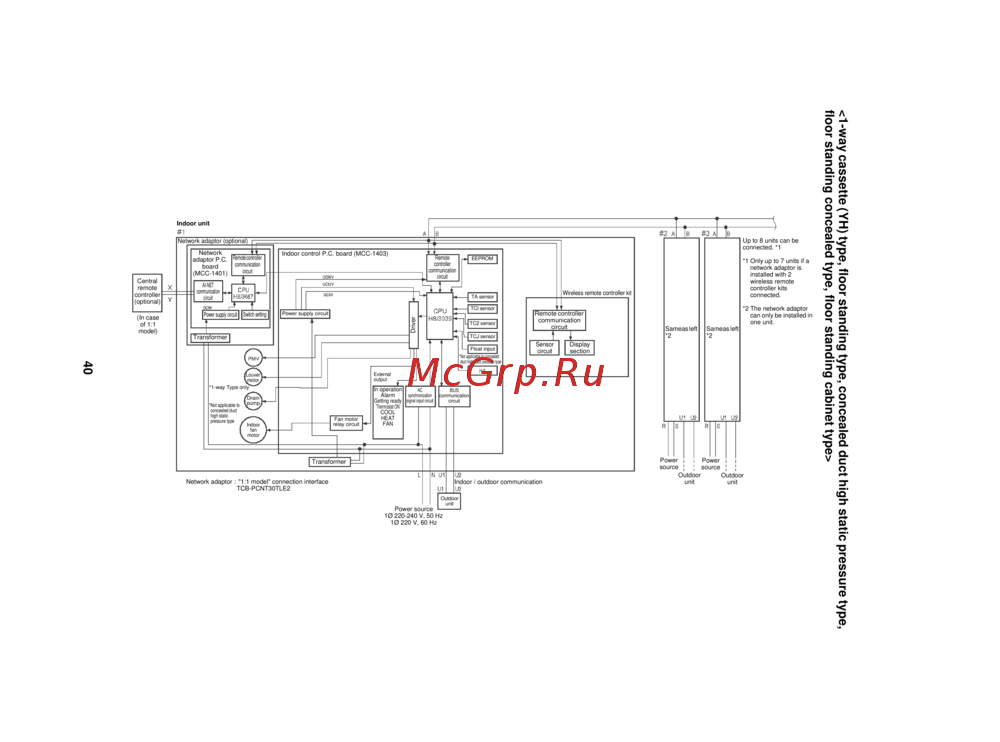

<1-way cassette (YH) type, floor standing type, concealed duct high static pressure type,
floor standing concealed type, floor standing cabinet type>
Sameas left
*2
Sameas left
*2
Power
source
Up to 8 units can be
connected. *1
*1 Only up to 7 units if a
network adaptor is
installed with 2
wireless remote
controller kits
connected.
*2 The network adaptor
can only be installed in
one unit.
Power
source
Outdoor
unit
Outdoor
unit
Wireless remote controller kit
Remote controller
communication
circuit
Sensor
circuit
Display
section
In operation
Alarm
Getting ready
Thermostat ON
COOL
HEAT
FAN
AC
synchronization
signal input circuit
BUS
communication
circuit
External
output
Driver
TA sensor
TCI sensor
TC2 sensor
TCJ sensor
Float input
Remote
controller
communication
circuit
EEPROM
*Not applicable to concealed
duct high static pressure type
Indoor control P.C. board (MCC-1403)
Fan motor
relay circuit
Transformer
Transformer
Power supply circuit
Network adaptor : "1:1 model" connection interface
TCB-PCNT30TLE2
Indoor / outdoor communication
Power source
1Ø 220-240 V, 50 Hz
1Ø 220 V, 60 Hz
Outdoor
unit
Louver
motor
Indoor
fan
motor
*Not applicable to
concealed duct
high static
pressure type
Drain
pump
Indoor unit
Central
remote
controller
(optional)
Network adaptor (optional)
(In case
of 1:1
model)
Network
adaptor P.C.
board
(MCC-1401)
Remote controller
communication
circuit
AI-NET
communication
circuit
Power supply circuit
Switch setting
*1-way Type only
