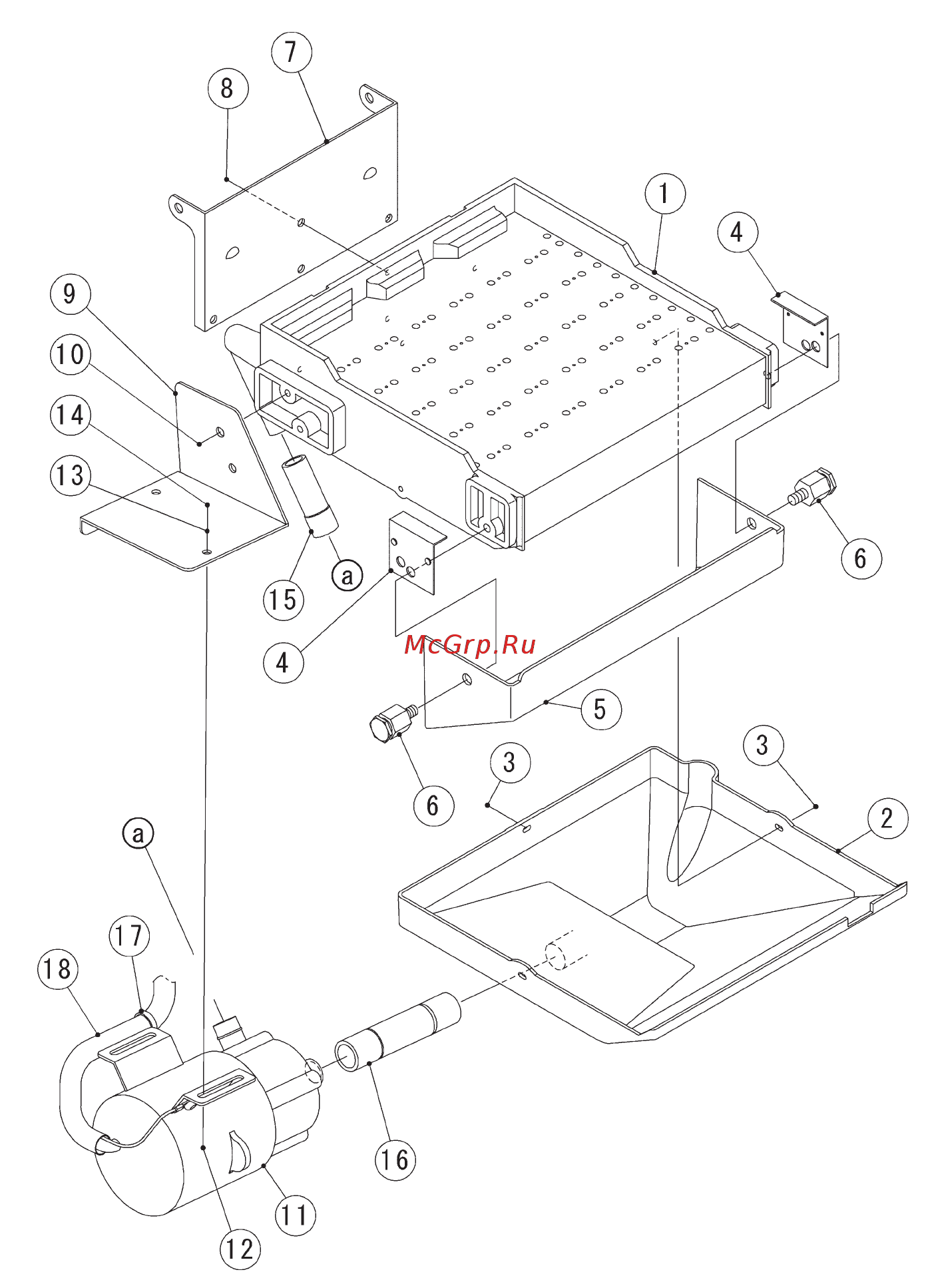

Fig. 15
1 Water Plate
2 Water Tank
3 Tapping Screw
4 Lubrication Plate
5 Drain Guide
6 Spring Hook Screw
7 Water Pan Bracket
8 Tapping Screw
9 Pump Motor Bracket
10 Tapping Screw
11 Pump Motor
12 Hex Head Bolt
13 Flat Washer
14 Flange Nut
15 Discharge Tubing
16 Suction Tubing
17 Nylon Tie
18 Silicone Tube
