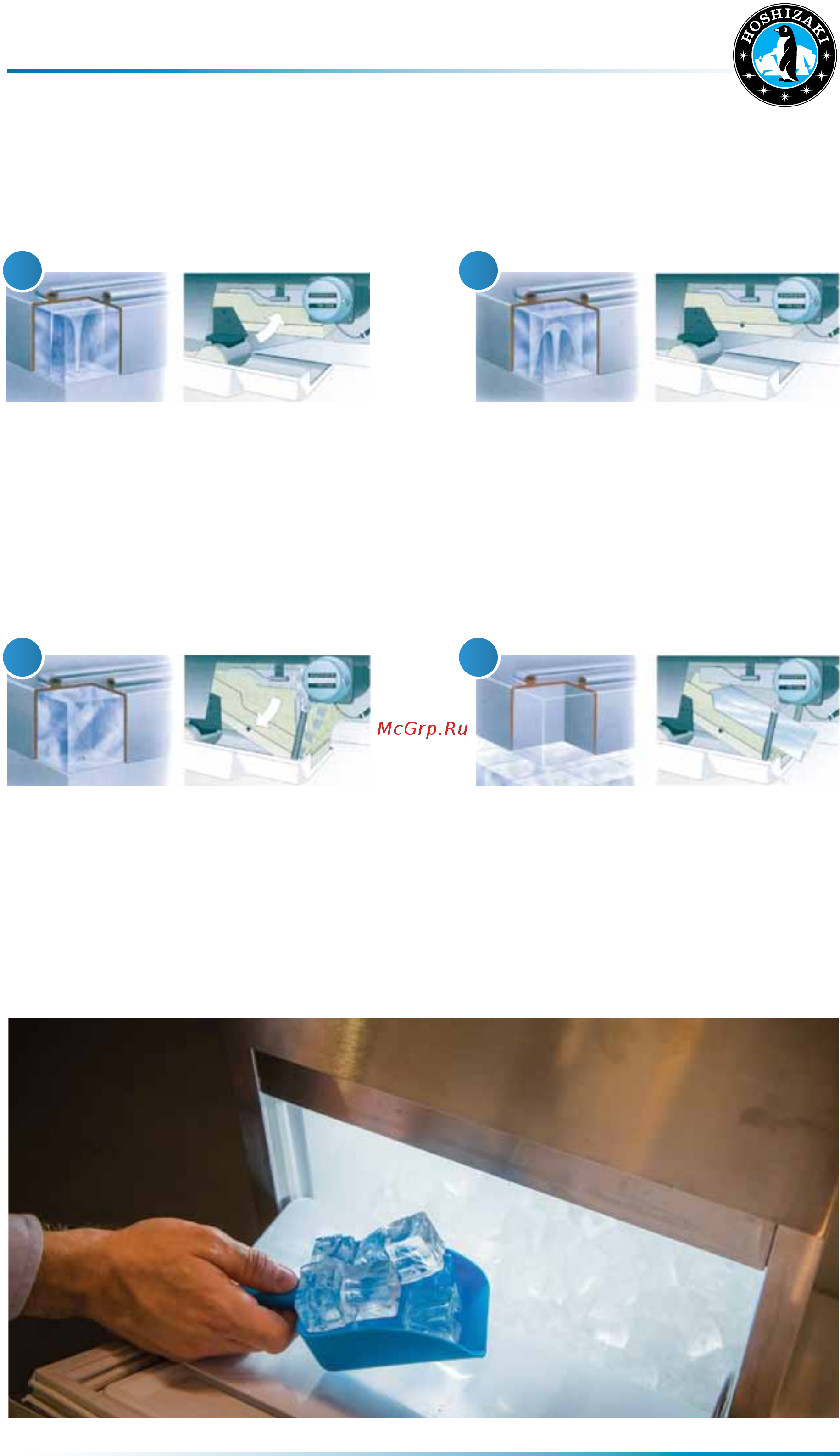

With the water plate closed against the underside
of the evaporator, the water circuit is closed to
both outside contamination and water loss under
normal circumstances. Crucially, each cube is made
individually by a dedicated jet spray to ensure the
highest possible ice quality.
When the cube is fully formed the electronic
controller initiates a hot gas defrost cycle.
The water plate opens and the hot gas slowly warms
the evaporator. At this point all remaining water from
the ice making cycle is drained.
As the ice cube slowly forms the spray continues until
the end of the cycle. No fresh water is required as the
internal reservoir capacity is adequate for a full
cycle of ice.
The ice will drop from the evaporator into the ice bin.
The water plate will be rinsed with fresh water
to remove any remaining particles before it starts
to close again. Fresh water continues to enter until
the reservoir is full to enable a new freeze cycle
to commence.
1
3
2
4
Our Unique Closed Cell System
The Ice Production Process
