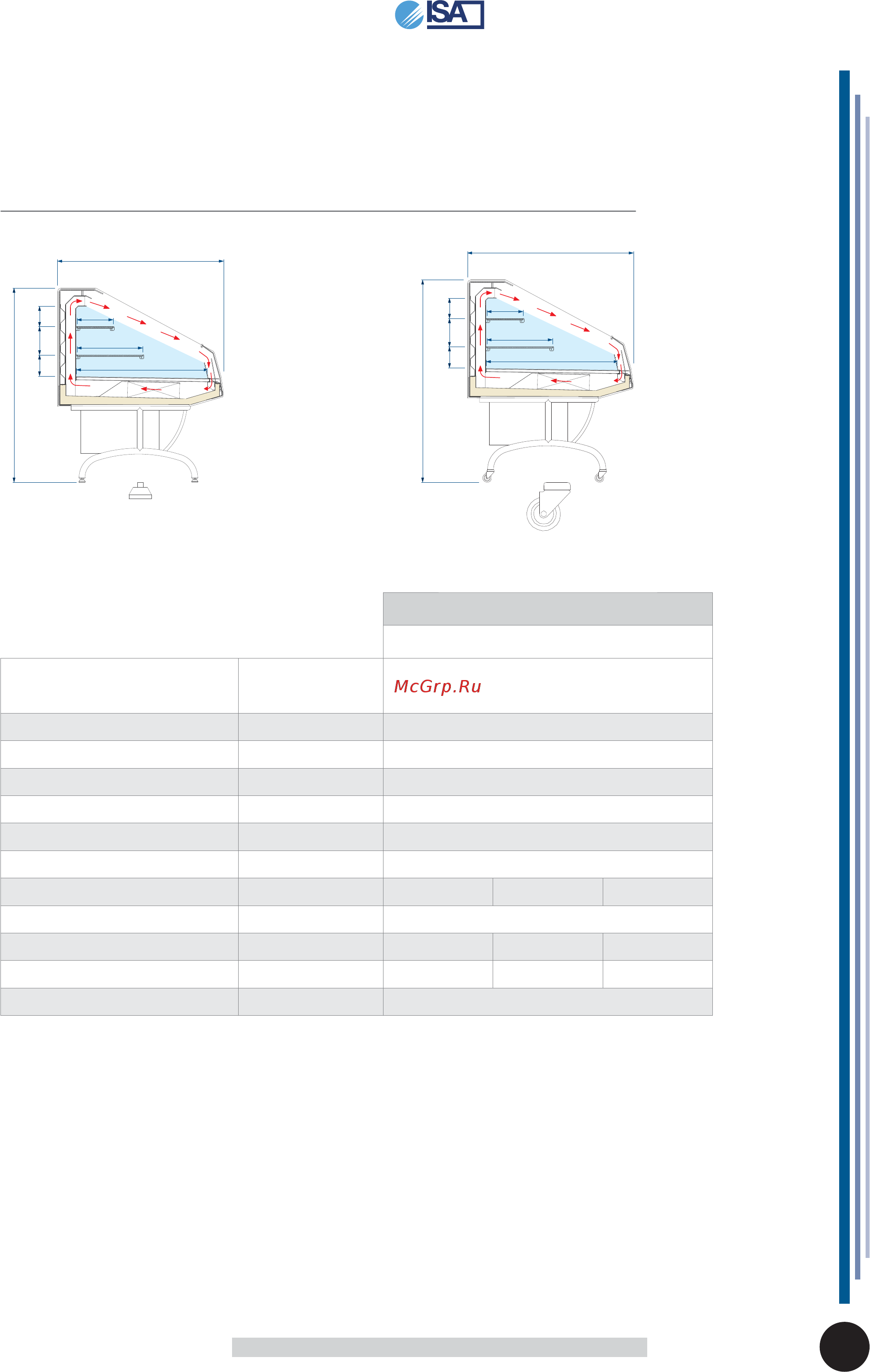

11. TECHNICAL SPECIFICATIONS
250
400
835
1305
1120
135
190
145
1365
250
400
835
1120
135
190
145
130 SMALL
130 SMALL
RV TN
External dimensions (lxdxh)
External dimensions (lxdxh)
mm
mm
1280 x 1120 x 1305
1280 x 1120 x 1365
Refrigeration
Ventilated
Defrosting
Off Cycle
Climate class Nr.
3
Environmental conditions °C / % RH
25 / 60
Product class
M2
Safety class (CEI EN 60335-2-89) N° / °C (environment)
5 / 43 ± 2°C
Refrigerant (GWP)
R404A (3784) R290 R744
Power supply V / ph / Hz
230 / 1 / 50
Electrical absorption (normal conditions) W / A
1200 / 6 540 / 2.5 690 / 3.1
Electrical absorption (in defrosting) W / A
260 / 1.1 10 / 0.08 10 / 0.08
Weight (net) kg
167
