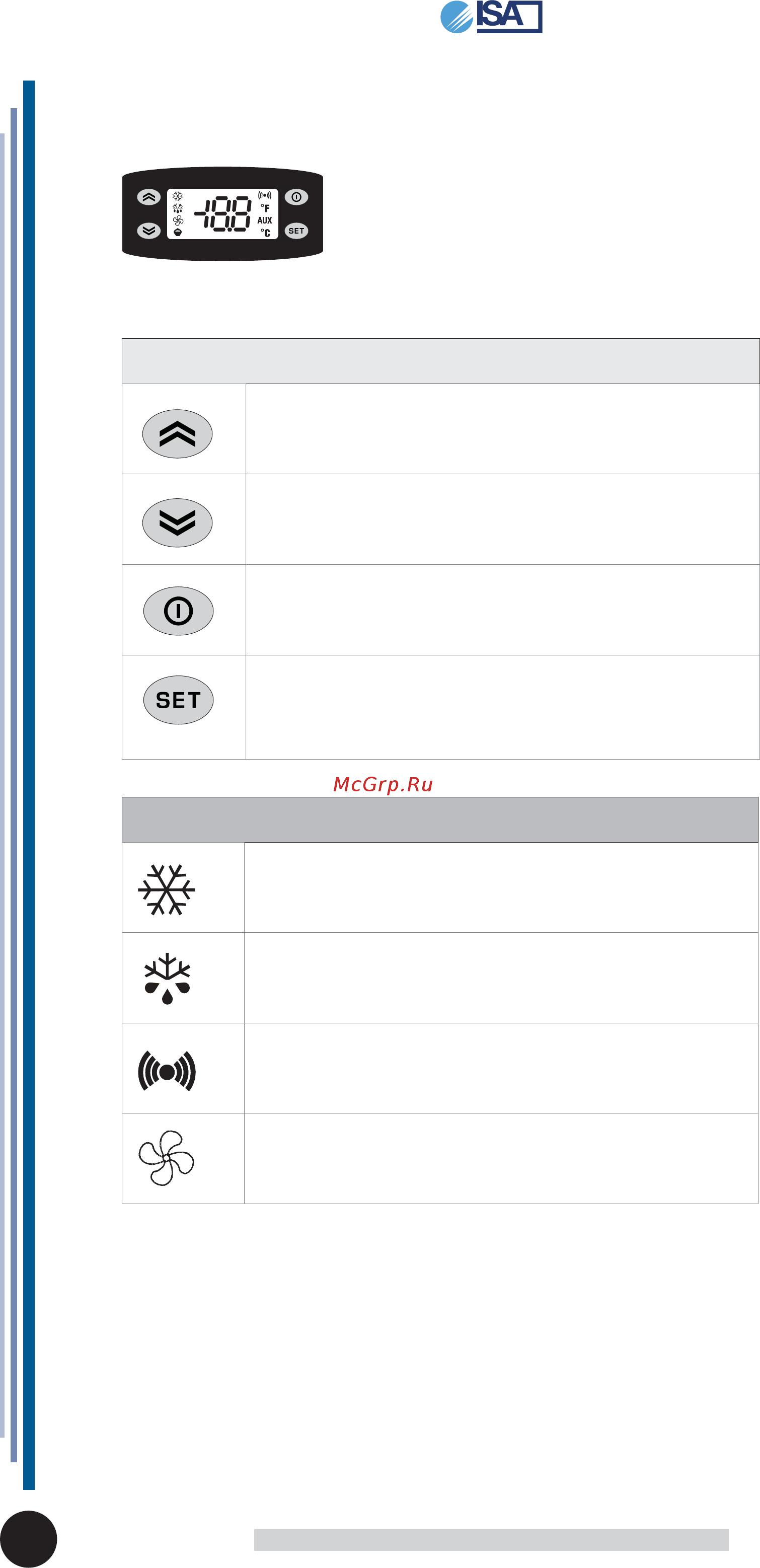

12.1 USER INTERFACE
KEYS
UP
Scrolls menu options
Increases the values
Activates manual defrosting
DOWN
Scrolls menu options
Decreases the values
STAND-BY (ESC)
Goes back up one level with respect to current menu
Confi rms parameter value
Activates the Stand-by function
SET (ENTER)
Accesses the Set-point
Accesses the programming menu
Confi rms input commands
Displays any alarms (if present)
LED
COMPRESSOR or RELAY 1
ON for compressor on
Flashing for delay, protection or blocked activation.
ADDITIONAL
ON for defrosting in progress
Flashing for manual activation
ALARM
ON for active alarm
Flashing for silenced alarm
FANS
ON for operating fans
