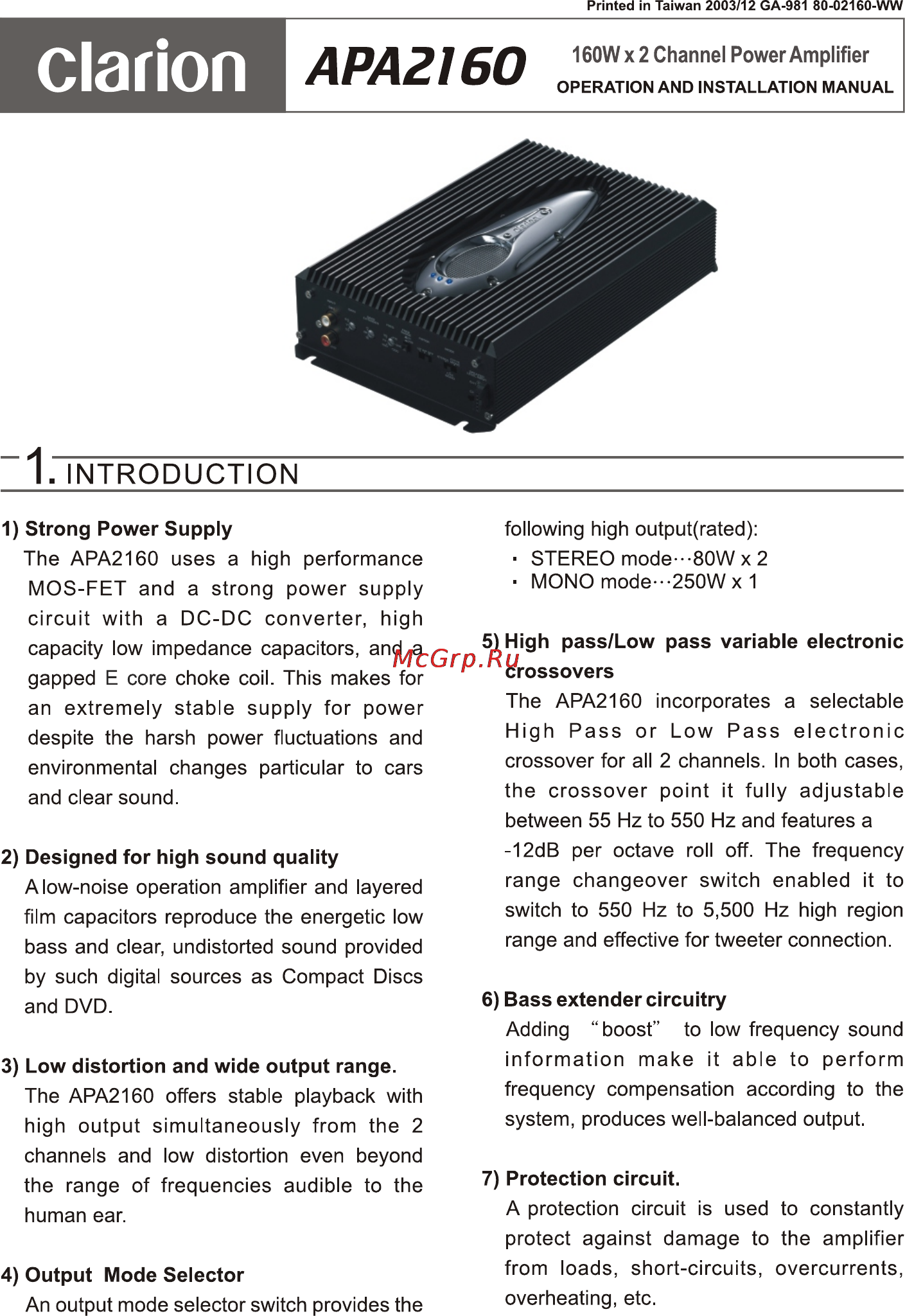

Printed in Taiwan 2003 12 GA 981 80 02160 WW clarion APA2160 160Wx 2 Channel Power Amplifier OPERATION AND INSTALLATION MANUAL INTRODUCTION 1 Strong Power Supply The APA2160 uses a high performance MOS FET and a strong power supply circuit with a DC DC converter high capacity low impedance capacitors and a gapped E core choke coil This makes for an extremely stable supply for power despite the harsh power fluctuations and environmental changes particular to cars and clear sound 2 Designed for high sound quality A low noise operation amplifier and layered film capacitors reproduce the energetic low bass and clear undistorted sound provided by such digital sources as Compact Discs and DVD 3 Low distortion and wide output range The APA2160 offers stable playback with high output simultaneously from the 2 channels and low distortion even beyond the range of frequencies audible to the human ear 4 Output Mode Selector An output mode selector switch provides the following high output rated STEREO mode 80W x 2 MONO mode 250W x 1 5 High pass Low pass variable electronic crossovers The APA2160 incorporates a selectable High Pass or Low Pass electronic crossover for all 2 channels In both cases the crossover point it fully adjustable between 55 Hz to 550 Hz and features a 12dB per octave roll off The frequency range changeover switch enabled it to switch to 550 Hz to 5 500 Hz high region range and effective for tweeter connection 6 Bass extender circuitry Adding boost to low frequency sound information make it able to perform frequency compensation according to the system produces well balanced output 7 Protection circuit A protection circuit is used to constantly protect against damage to the amplifier from loads short circuits overcurrents overheating etc
