Clarion APA2160 [8/8] Packaging content

Содержание

• Apa2160 1
• Clarion 1
• Introduction 1
• Amplifier controlsand power indicator connection 2
• Electrical connections 3
• Installation 3
• An output signal changes with the position of an output mode selector switch 1ch1 2mono the signal of ch1 and ch2 is mixed and outputted ch2m0n0 only the signal of ch2 is outputted 5
• Applications 5
• Caution 5
• Main unit 5
• Mono mode 5
• Stereo mode 5
• Î warning 5
• Additional help 7
• Adjust the balance control from left to right 7
• After a short two second delay slowly raise 7
• Also refer to the troubleshooting 7
• And listen to the result audio imaging 7
• Another possibility is damaged or under 7
• Apa2160 amplifier reproduces audio 7
• Care when adjusting the controls 7
• Final system checks 7
• Hear any noise static distortion or no 7
• Hear distortion check the connections and 7
• Increase the volume and verify that the 7
• Powered speakers once again refer to 7
• Problem possible cause solution 7
• Section depending on your system design 7
• Should match control setting 7
• Sound at all check the connections and 7
• Start the engine and turn on the main unit 7
• The levels may become quite loud even 7
• The troubleshooting section for 7
• The volume and listen to the sound if you 7
• Trouboleshooting 7
• Verify that the gain controls is set correctly 7
• Without distortion at all frequencies if you 7
• 40 20 80 8
• Packaging content 8
• Specifications 8

Похожие устройства

• Behringer MON 800 MINIMON Инструкция по эксплуатации
• Scher-Khan Magicar A Инструкция по эксплуатации
• Scarlett SC-1046 Инструкция по эксплуатации
• Clarion APA4320 Инструкция по эксплуатации
• Акма V3-600 MOL Инструкция по эксплуатации
• Bosch GBM 16-2 RE 0.601.120.508 Инструкция по эксплуатации
• Behringer MX-400 Инструкция по эксплуатации
• Scher-Khan Magicar B Инструкция по эксплуатации
• Scarlett SC-1045 Инструкция по эксплуатации
• Clarion BLT373 Инструкция по эксплуатации
• Bosch HMT 85ML53 Инструкция по эксплуатации
• Акма V3-500 ⁄ 3 Хром Инструкция по эксплуатации
• Энкор ДЭ-500ЭР/10М 50068 Инструкция по эксплуатации
• Behringer SX 2442FX EURODESK Инструкция по эксплуатации
• Scher-Khan Magicar 3 Инструкция по эксплуатации
• Scarlett SC-1041 Инструкция по эксплуатации
• Акма V3-500 ⁄ 3 Инструкция по эксплуатации
• Clarion BLT373.47 Инструкция по эксплуатации
• Bosch GBM 32-4 0.601.130.208 Инструкция по эксплуатации
• Behringer SX 3242FX EURODECK Инструкция по эксплуатации

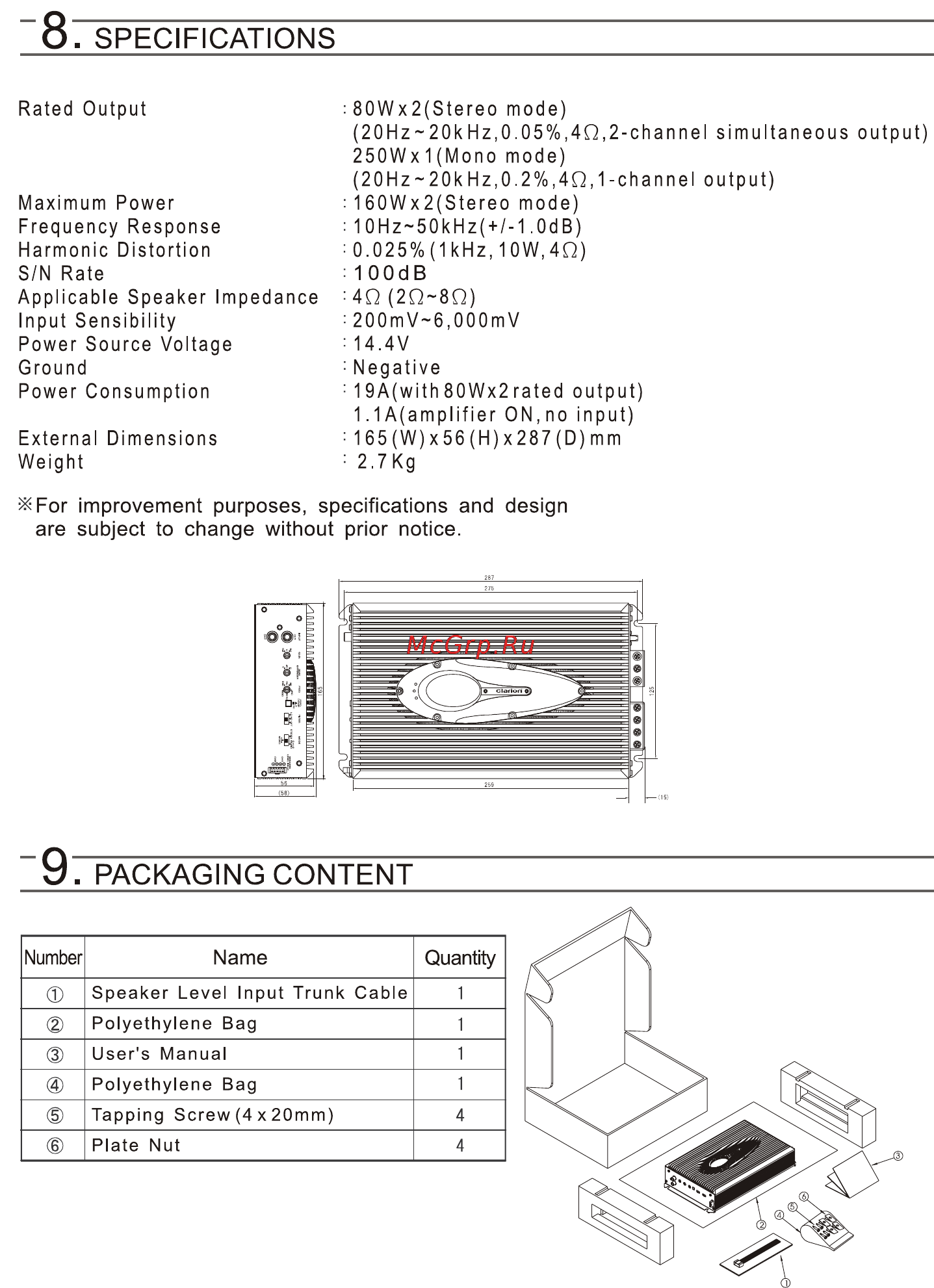

8 SPECIFICATIONS Rated Output Maximum Power Frequency Response Harmonic Distortion S N Rate Applicable Speaker Impedance Input Sensibility Power Source Voltage Ground Power Consumption External Dimensions Weight 80Wx2 Stereo mode 20Hz 20k Hz 0 05 40 2 channel simultaneous output 250Wx 1 Mono mode 20Hz 20 k Hz 0 2 40 1 channel output 160Wx2 Stereo mode 1 0Hz 50kHz 1 OdB 0 025 1 kHz 10W 40 1 OOdB 40 20 80 200mV 6 000mV 14 4V Negative 1 9A with 80Wx2 rated output 1 1 A a m pl if ie r ON no input 1 65 W x 56 H x287 D mm 2 7Kg For improvement purposes specifications and design are subject to change without prior notice 9 PACKAGING CONTENT Number Name Quantity Speaker Level Input Trunk Cable 1 Polyethylene Bag 1 User s Manual 1 Polyethylene Bag 1 Tapping Screw 4 x 20mm 4 Plate Nut 4
